Ideal for flooded basements, watering lawns and draining water heaters. This pump can also be used to boost water pressure for applications such as washing vehicles or sidewalks.
Product Features:
1/2 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Does not handle solid particulates
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Thermoplastic
Switch Type: Manual
Single phase operation
10′ Cord included
cCSAus listed
Product Specifications:
1/2 Horse Power
Voltage: 115V
9 Amp maximum operation
3/4″ Discharge diameter
Length: 15″

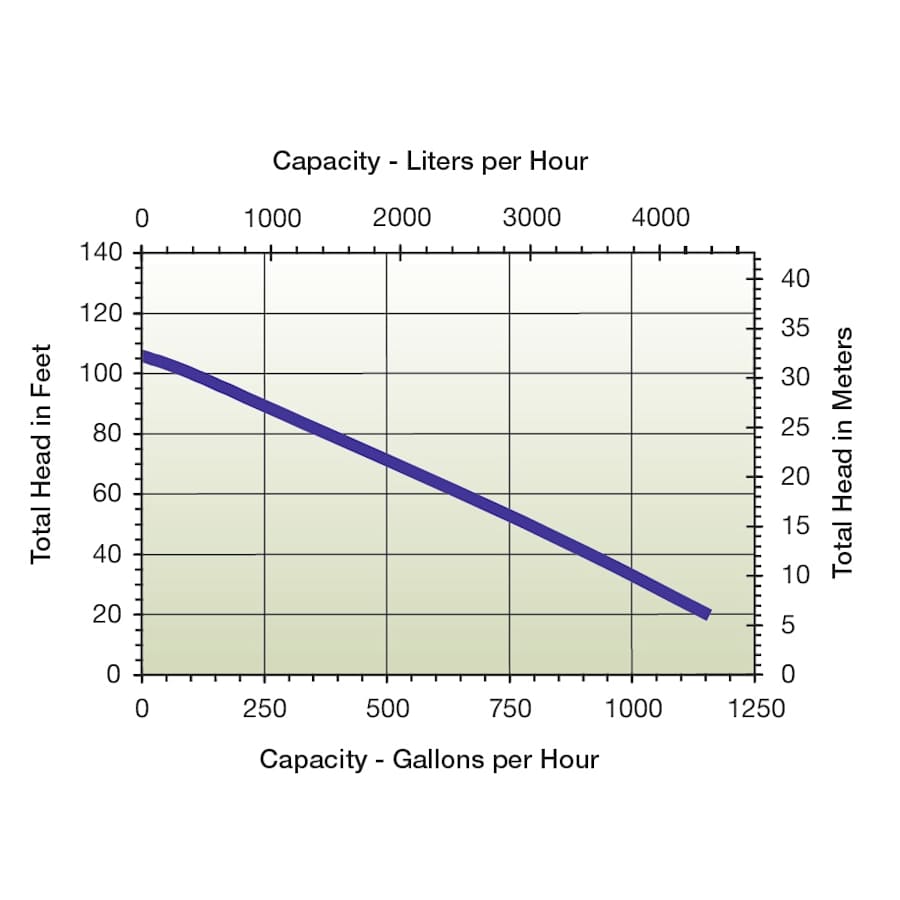

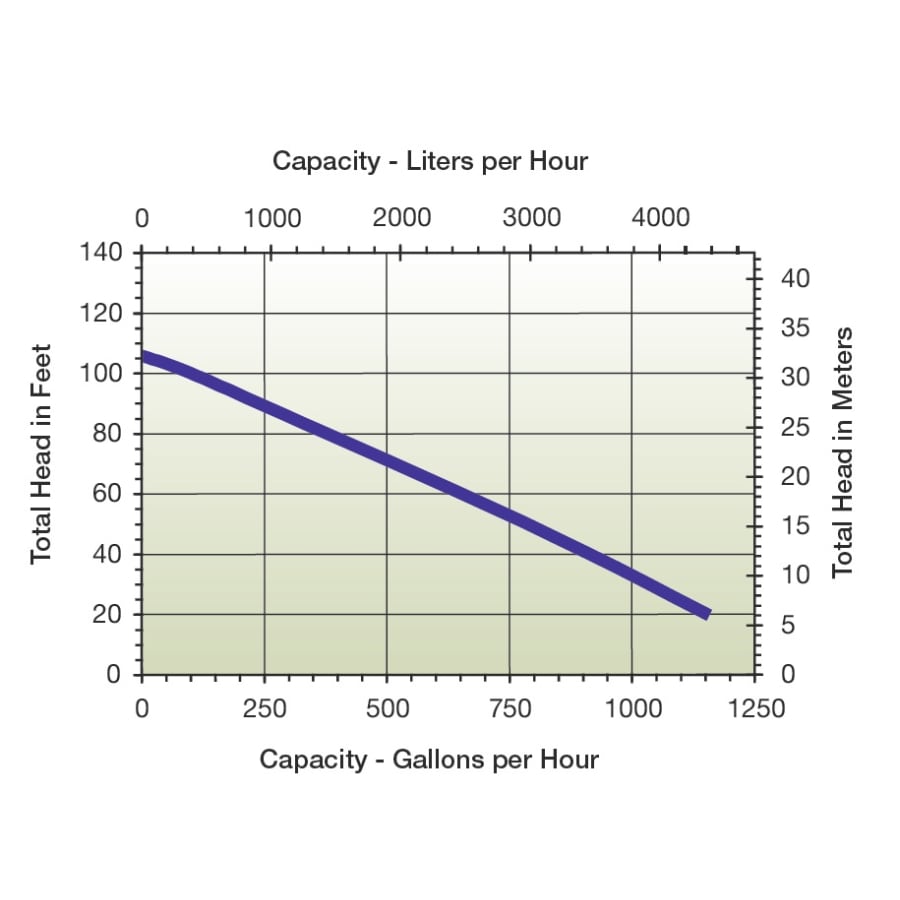

Flow rates (GPH: gallons-per-hour):
At 20 feet of head: 1152
At 40 feet of head: 912
At 60 feet of head: 648
At 80 feet of head: 372
At 100 feet of head: 90
Shut Off (maximum head height): 105′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant UPSP Collection
Specifications
| Height | 9.15 in. |
| Depth | 9.9 in. |
| Width | 5.45 in. |
| Length | 15 in. |
| Product Weight | 17 lbs. |
| Water Connection | 3/4" |
| Cord Length | 120 in. |
| Discharge Diameter | .75 in. |
| Flow Rate by Feet of Head | 372 gal / 80 ft, 90 gal / 100 ft, 10.8 gal / 60 ft, 15.2 gal / 40 ft, 19.2 gal / 20 ft |
| Shut Off Height | 105 in. |
| Shut Off Pressure | 45.5 |
| Maximum Head Height | 105 in. |
| Minimum Head Height | 20 in. |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Configuration | Transfer Pump |
| Switch Type | Manual |
| Submersible | No |
| Automatic | Yes |
| Shutoff Head in Feet | 105 |
| Impeller Material | Thermoplastic |
| Material Casing | Iron |
| Material Housing | Iron |
| Approved for Commercial Use | Yes |
| Certifications | CSA |
| CARB approved | Yes |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Amperage | 9 |
| Horsepower | .5 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
