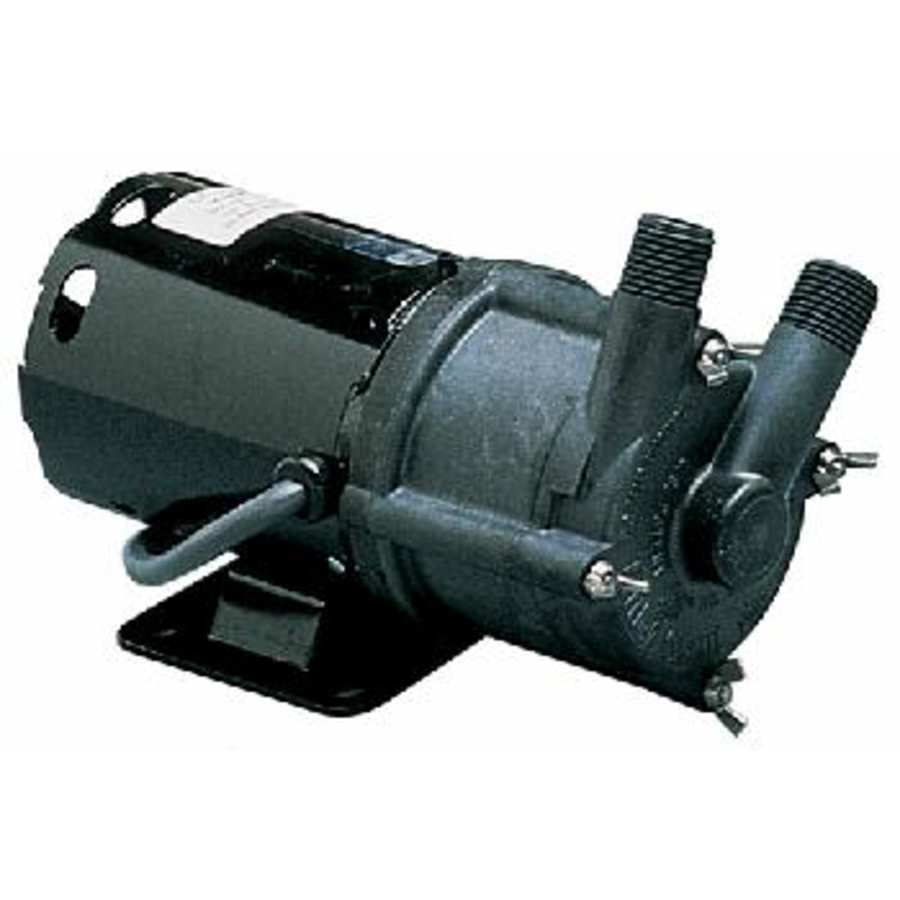

500 GPH Magnetic Drive Pump
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton(R)), Viton(R), carbon and ceramic parts. Thermally protected open fan-cooled motor has ball bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Specific Gravity – up to 1.1.
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 200F.
NOTE: Consult your local distributor or the factory for applications with higher ambient temperatures, specific gravities, and viscosities
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 5.5 in. |
| Width | 3.9 in. |
| Depth | 7.9 in. |
| Product Weight | 7.2 lbs. |
| Discharge Diameter | 0.5 in. |
| Cord Length | 72 in. |
| Flow Rate by Feet of Head | 7.6 gal / 3 ft, 7.1 gal / 6 ft, 8.3 gal / 1 ft, 5.9 gal / 9 ft, 1.7 gal / 15 ft |
| Shut Off Height | 16.2 in. |
| Shut Off Pressure | 7 |
| Material | Vitreous China |
| Configuration | Magnetic Drive Pump |
| Shutoff Head in Feet | 16.2 |
| Submersible | No |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Wattage | 94 |
| Amperage | 1.3 |
| Horsepower | 0.04 |
| Color | Steel |
| Color Tone | Steel Tones |
