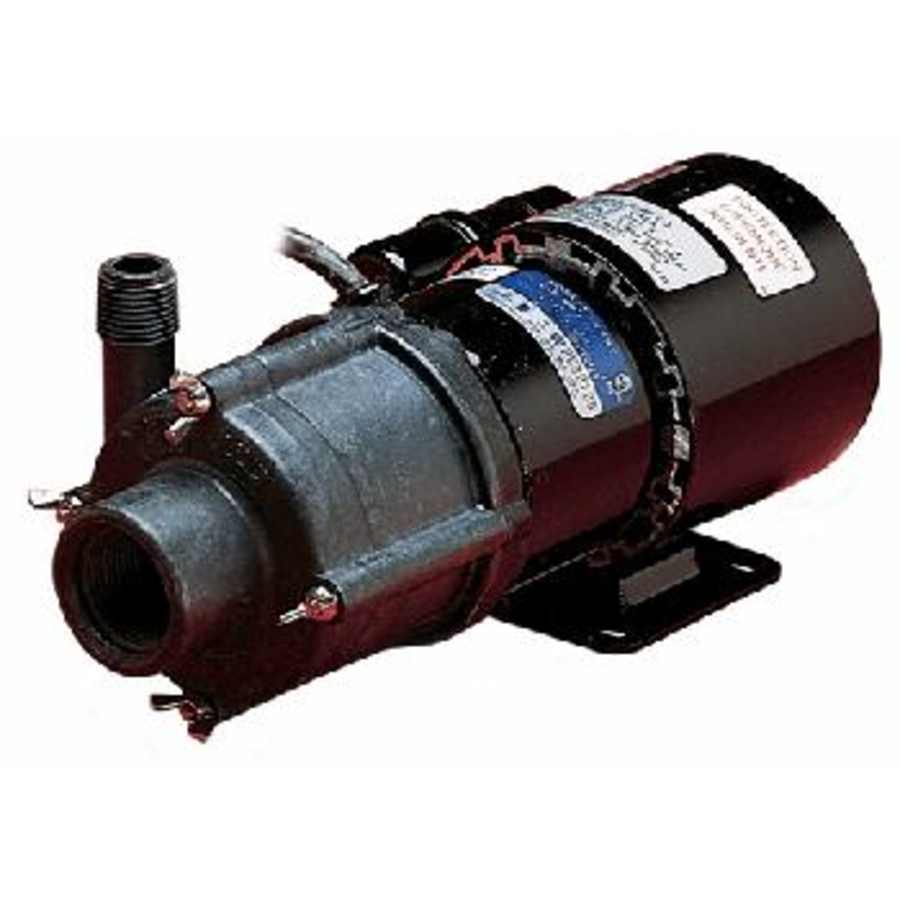

850 GPH 1/10HP 230V Magnetic Drive Pump with 6′ Cord
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton(R)), Viton(R), carbon and ceramic parts. Thermally protected totally enclosed fan-cooled split capacitor motor with sleeve bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Specific Gravity – up to 1.1.
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 200F.
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Depth | 10.9 in. |
| Height | 4.9 in. |
| Product Weight | 10 lbs. |
| Width | 5.5 in. |
| Cord Length | 72 in. |
| Flow Rate by Feet of Head | 14.16 gal / 1 ft, 13.5 gal / 3 ft, 9.16 gal / 15 ft, 11.83 gal / 9 ft, 14.41 gal / 6 ft |
| Shut Off Height | 24.3 in. |
| Shut Off Pressure | 10.5 |
Characteristics and Features
| Material | Vitreous China |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
Warranty and Product Information
| Certifications | CSA |
Electrical and Operational Information
| Voltage | 230 |
| Wattage | 120, 170 |
| Frequency | 50, 60 Hertz |
| Amperage | 0.5, 0.7 |
| Horsepower | 0.1 |
| Color | Black |
| Color Tone | Blacks |
