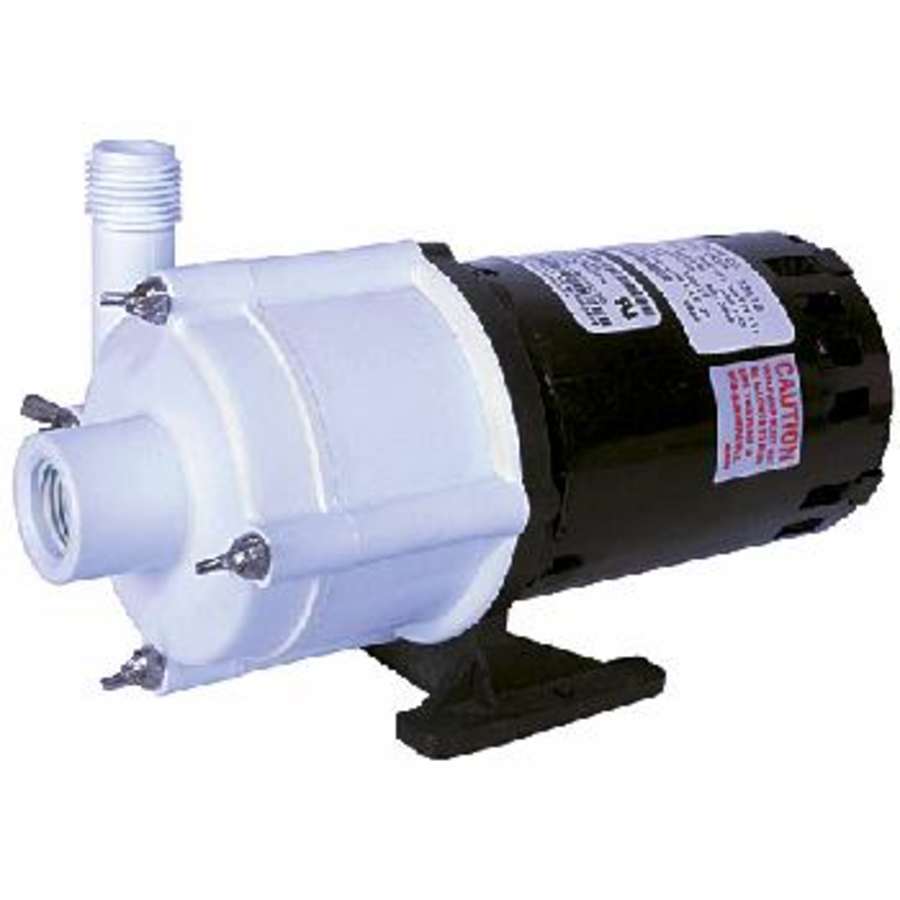

1/30 HP 115V Magnetic Drive Pump
Magnetically driven pump for mildly corrosive chemicals and solutions. The MD Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. Open fan-cooled motor has sleeve bearings and is thermally protected. 6 ft. power cord and 3-prong molded plug. (230V version has no plug).
Specific Gravity – up to 1.1′
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 150F (66C).
NOTE: Consult your local distributor or the factory for applications with higher ambient temperatures, specific gravities, and viscosities
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Depth | 8.5 in. |
| Height | 4.3 in. |
| Width | 4 in. |
| Product Weight | 6.25 lbs. |
| Discharge Diameter | 0.5 in. |
| Cord Length | 72 in. |
| Flow Rate by Feet of Head | 7.8 gal / 3 ft, 8.5 gal / 1 ft |
| Shut Off Height | 14.6 in. |
| Shut Off Pressure | 6.3 |
Characteristics and Features
| Material | Plastic, Titanium |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
| Shutoff Head in Feet | 14.6 |
Warranty and Product Information
| Certifications | CSA |
Electrical and Operational Information
| Voltage | 115 |
| Wattage | 100 |
| Frequency | 60 Hertz |
| Amperage | 1.5 |
| Horsepower | 0.033 |
| Color | Black |
| Color Tone | Blacks |
