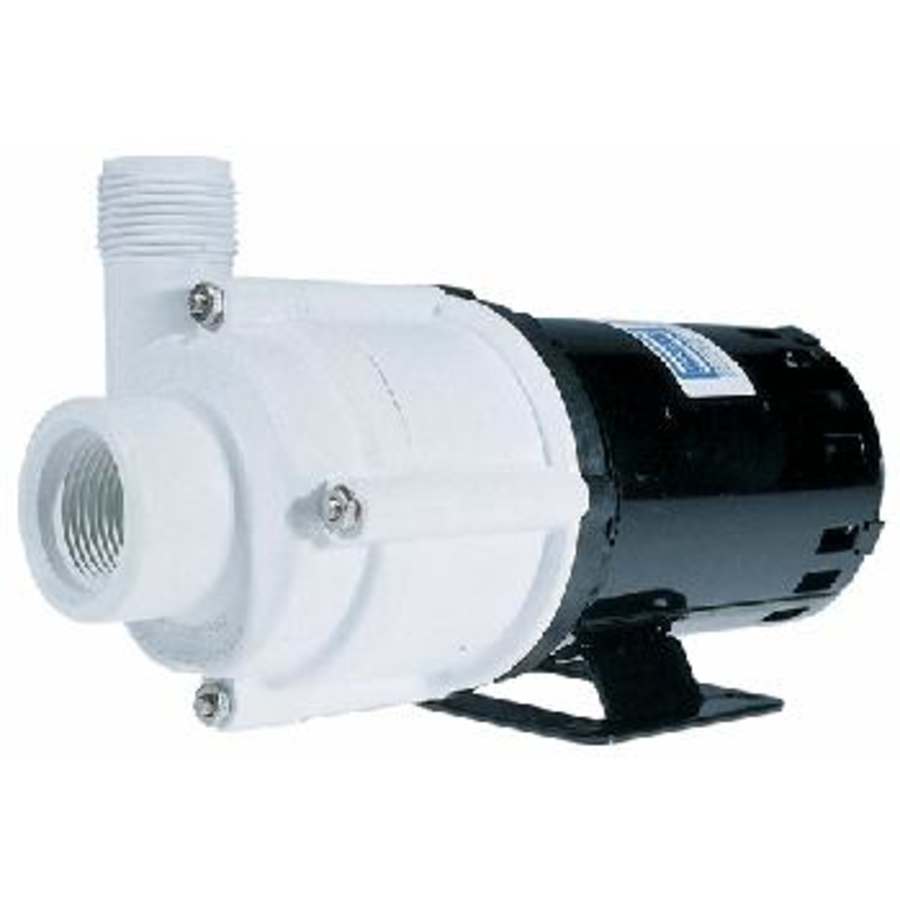

Magnetic Drive Aquarium Pump, 770 GPH, .03 HP
Little Giant ‘Quarium Series magnetic drive pumps are specifically designed for in-line saltwater and freshwater aquarium circulation and filtration applications.
Thermally protected motor with 3-prong molded plug and 6’ power cord
Corrosion resistant to salt solutions and many other semi-corrosive fluids
1″ FNPT inlet, 1″ MNPT outlet with barbs for 1-1/4″ I.D. tubing
Non-submersible (inline only)
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 5.3 in. |
| Length | 9.4 in. |
| Product Weight | 6.5 lbs. |
| Water Connection | 1" |
| Depth | 9.1 in. |
| Width | 4 in. |
| Flow Rate (GPM) | 12.83 |
| Cord Length | 6 in. |
| Flow Rate by Feet of Head | 10.66 gal / 3 ft, 12.83 gal / 1 ft |
| Shut Off Height | 8.1 in. |
| Maximum Head Height | 6 in. |
| Minimum Head Height | 1 in. |
| Water Pressure (Max) | 3.5 PSI |
Warranty and Product Information
| Certifications | UL, CSA |
| Approved for Commercial Use | No |
Characteristics and Features
| Water Connection Type | NPT |
| Configuration | In Line Pump |
| Shutoff Head in Feet | 8.1 |
| Submersible | No |
Electrical and Operational Information
| Voltage | 115 |
| Wattage | 110 |
| Frequency | 60 Hertz |
| Amperage | 1.5 |
| Horsepower | 0.033 |
| Color | Steel |
| Color Tone | Steel Tones |
