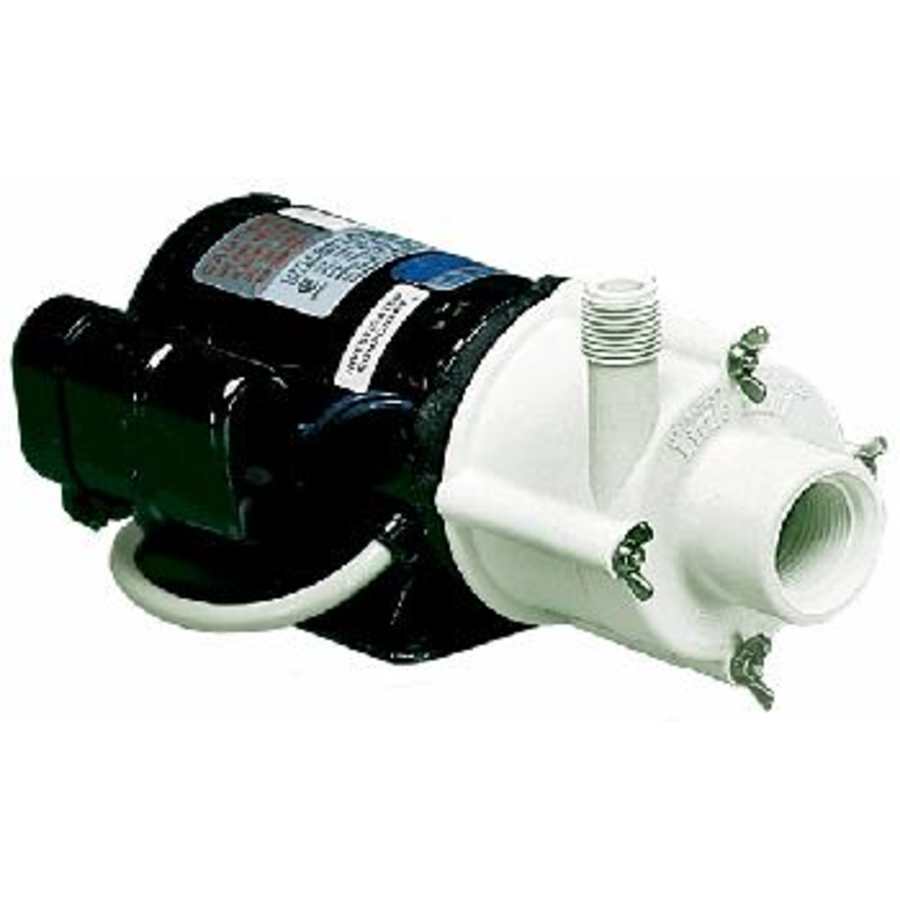

Magnetic Drive Aquarium Pump, 850 GPH, .10 HP
Little Giant ‘Quarium Series magnetic drive pumps are specifically designed for in-line saltwater and freshwater aquarium circulation and filtration applications.
Thermally protected motor with 3-prong molded plug and 6’ power cord
Corrosion resistant to salt solutions and many other semi-corrosive fluids
1″ FNPT inlet, 1/2″ MNPT outlet with barbs
Non-submersible (inline only)
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Depth | 10.6 in. |
| Height | 5 in. |
| Product Weight | 10.2 lbs. |
| Width | 5.5 in. |
| Length | 10.6 in. |
| Flow Rate (GPM) | 14.17 |
| Water Connection | 1", 1/2" |
| Cord Length | 6 in. |

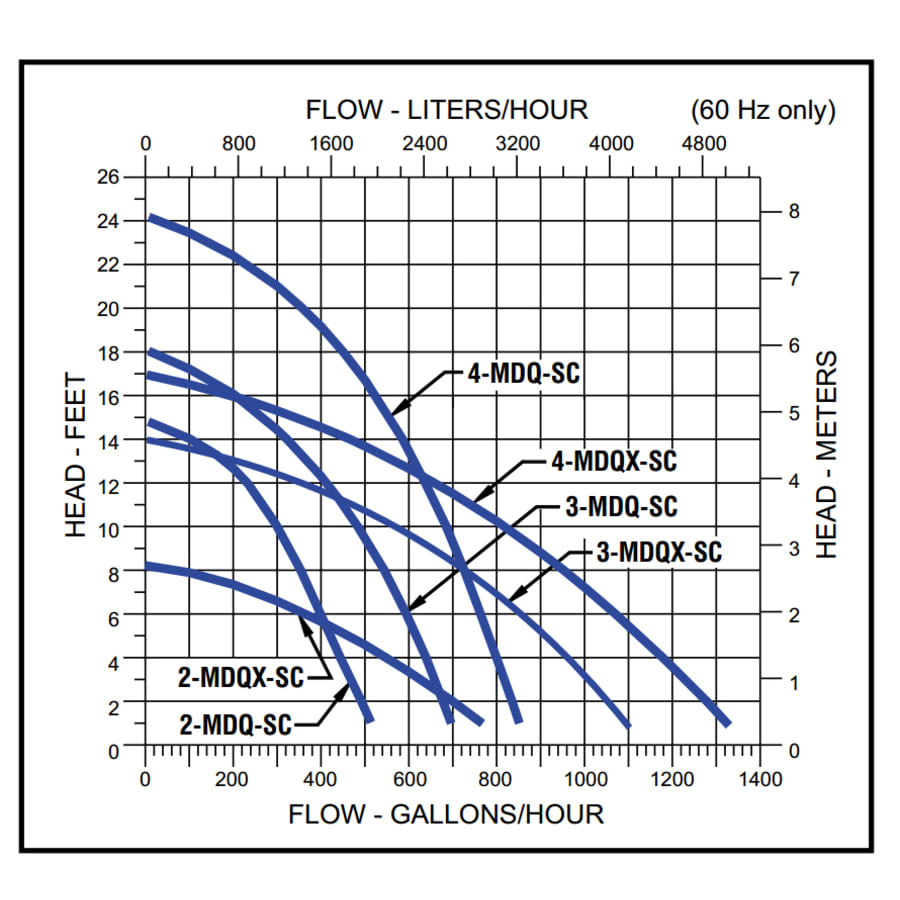

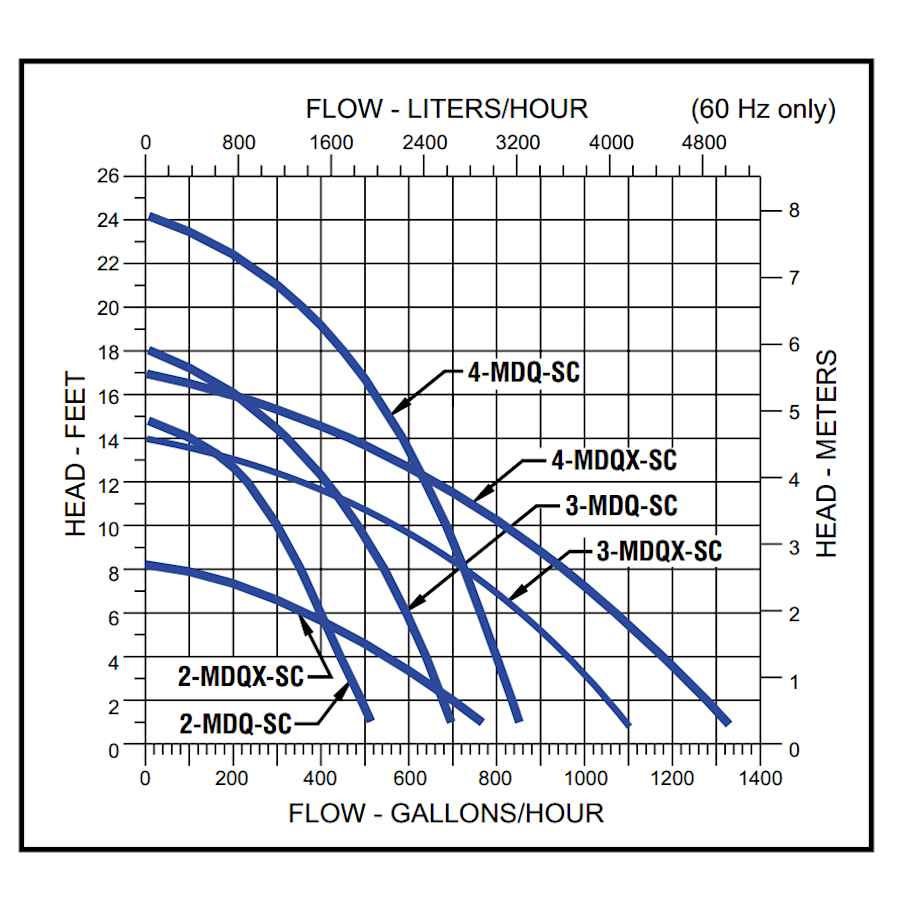

| Flow Rate by Feet of Head | 14.16 gal / 1 ft, 13.5 gal / 3 ft, 12.75 gal / 6 ft, 10.66 gal / 10 ft |
| Shut Off Height | 24.3 in. |
| Maximum Head Height | 12 in. |
| Minimum Head Height | 1 in. |
| Water Pressure (Max) | 10.5 PSI |
Warranty and Product Information
| Approved for Commercial Use | No |
| Certifications | UL, CSA |
Characteristics and Features
| Water Connection Type | NPT |
| Configuration | In Line Pump |
| Submersible | No |
| Shutoff Head in Feet | 12.5 |
Electrical and Operational Information
| Voltage | 115 |
| Wattage | 150 |
| Frequency | 60 Hertz |
| Amperage | 1.3 |
| Horsepower | 0.1 |
| Color | Steel |
| Color Tone | Steel Tones |
