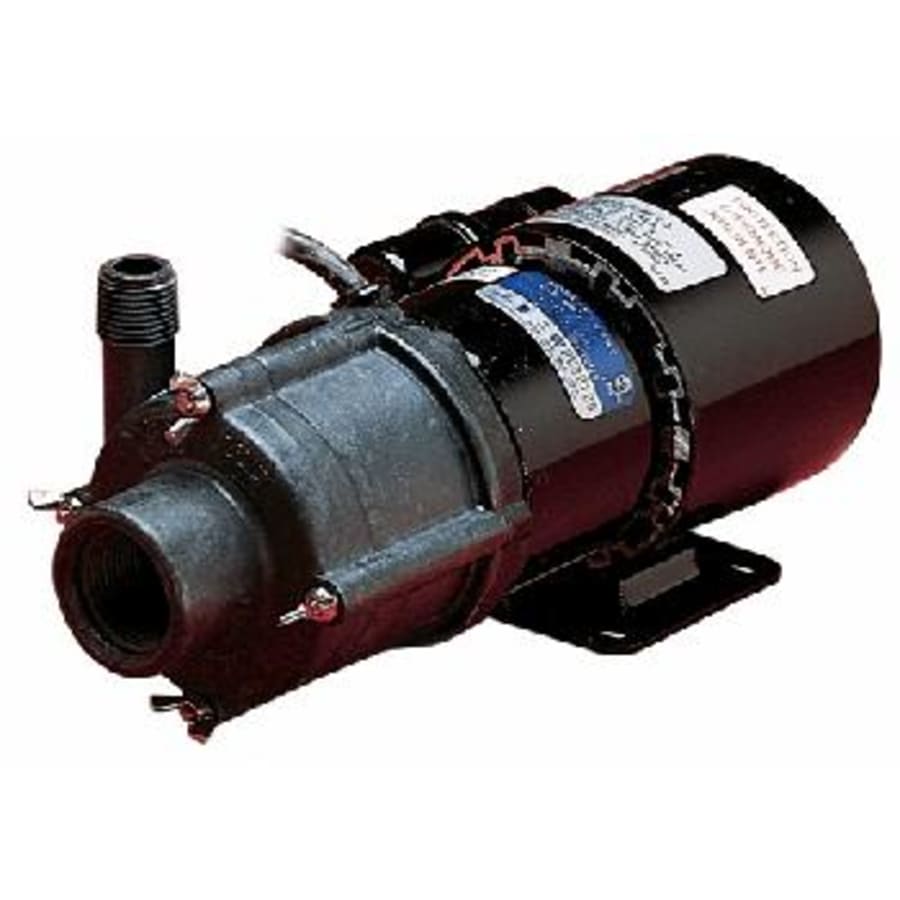

850 GPH 115V Magnetic Drive Pump with 6′ Power Cord
The Little Giant MD-HC series features leakproof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled Ryton for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Thermally Protected, Totally Enclosed, Fan Cooled, Permanent Split Capacitor Motor
Sleeve Bearings
6′ Power Cord with 3-Prong Plug (No plug on 230V)
Specific Gravity to 1.1
Fluid Temperature to 200 Degrees F.
Ambient Air Temperature to 77 Degrees F.
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Depth | 10.9 in. |
| Height | 5 in. |
| Width | 5.5 in. |
| Product Weight | 10.2 lbs. |
| Cord Length | 72 in. |
| Flow Rate by Feet of Head | 9.16 gal / 15 ft, 11.83 gal / 9 ft, 13.5 gal / 3 ft, 14.41 gal / 6 ft, 14.16 gal / 1 ft |
| Shut Off Height | 24.3 in. |
| Shut Off Pressure | 10.5 |
| Material | Vitreous China |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
| Shutoff Head in Feet | 40.5 |
| Certifications | CSA |
| Voltage | 115 |
| Wattage | 178 |
| Frequency | 60 Hertz |
| Amperage | 1.7 |
| Horsepower | 0.1 |
| Color | Steel |
| Color Tone | Steel Tones |
