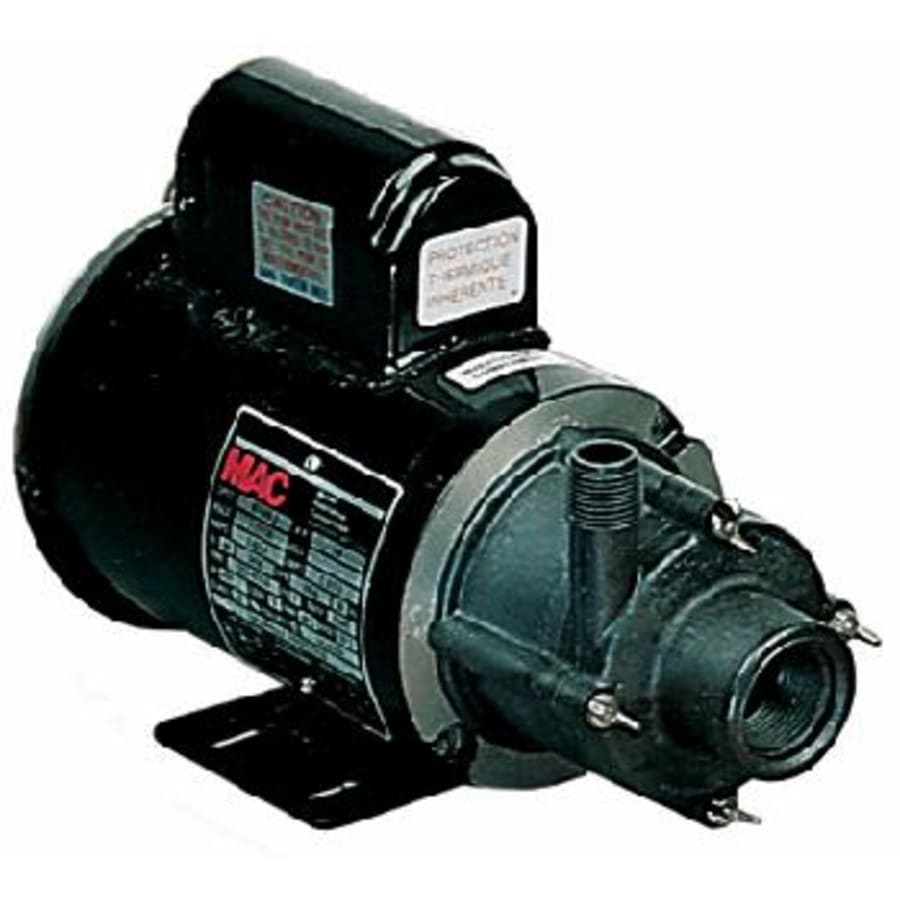

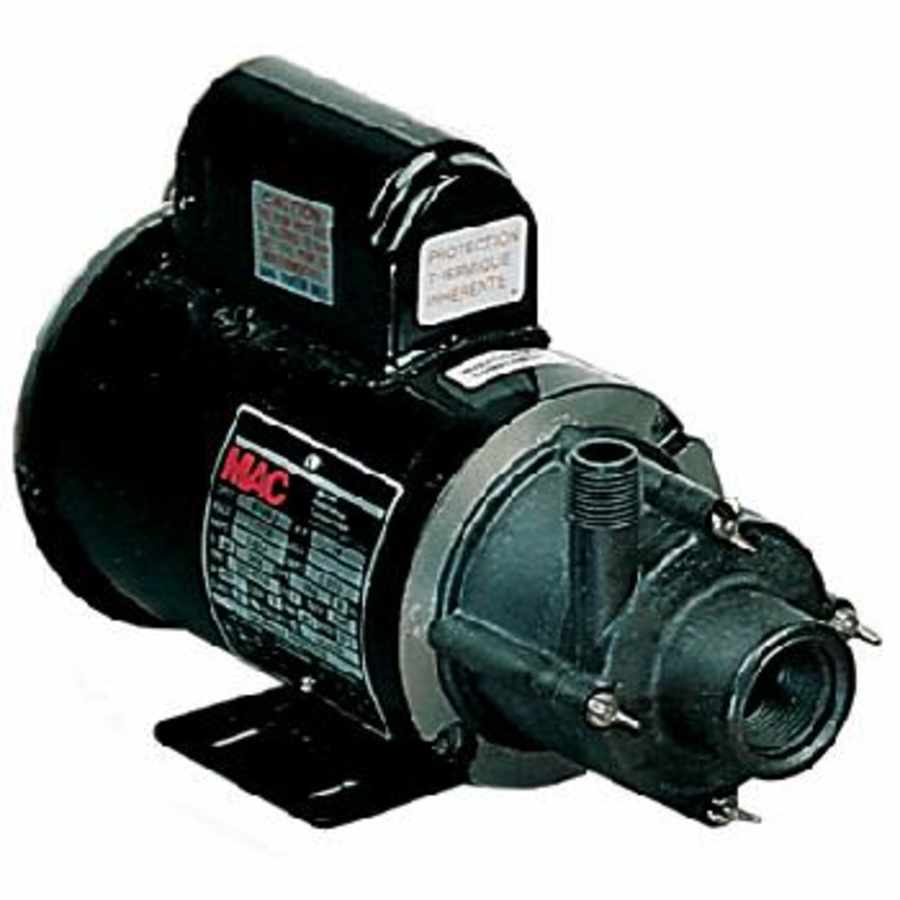

1/8 HP 1200 GPH 115/230V Magnetic Drive Pump with 6′ Cord
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton(R)), Viton(R), carbon and ceramic parts. Thermally protected totally enclosed fan-cooled permanent split capacitor motor with ball bearings. 6 ft power cord and 3-prong molded plug supplied but not installed.
Specific Gravity – up to 1.1.
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 200F.
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 7.3 in. |
| Product Weight | 16 lbs. |
| Depth | 11.2 in. |
| Width | 5.2 in. |
| Cord Length | 72 in. |
| Discharge Diameter | .5 in. |
| Flow Rate by Feet of Head | 19.2 gal / 3 ft, 20 gal / 1 ft, 17 gal / 9 ft, 14.8 gal / 15 ft, 18.2 gal / 6 ft |
| Shut Off Height | 29.3 in. |
| Shut Off Pressure | 12.7 |
Characteristics and Features
| Material | Plastic, Vitreous China |
| Configuration | Magnetic Drive Pump |
| Shutoff Head in Feet | 29.3 |
| Submersible | No |
Warranty and Product Information
| Certifications | CSA |
Electrical and Operational Information
| Voltage | 115, 230 |
| Wattage | 220, 325 |
| Frequency | 50, 60 Hertz |
| Amperage | 2.3, 3 |
| Horsepower | .125 |
| Color | Steel |
| Color Tone | Steel Tones |
