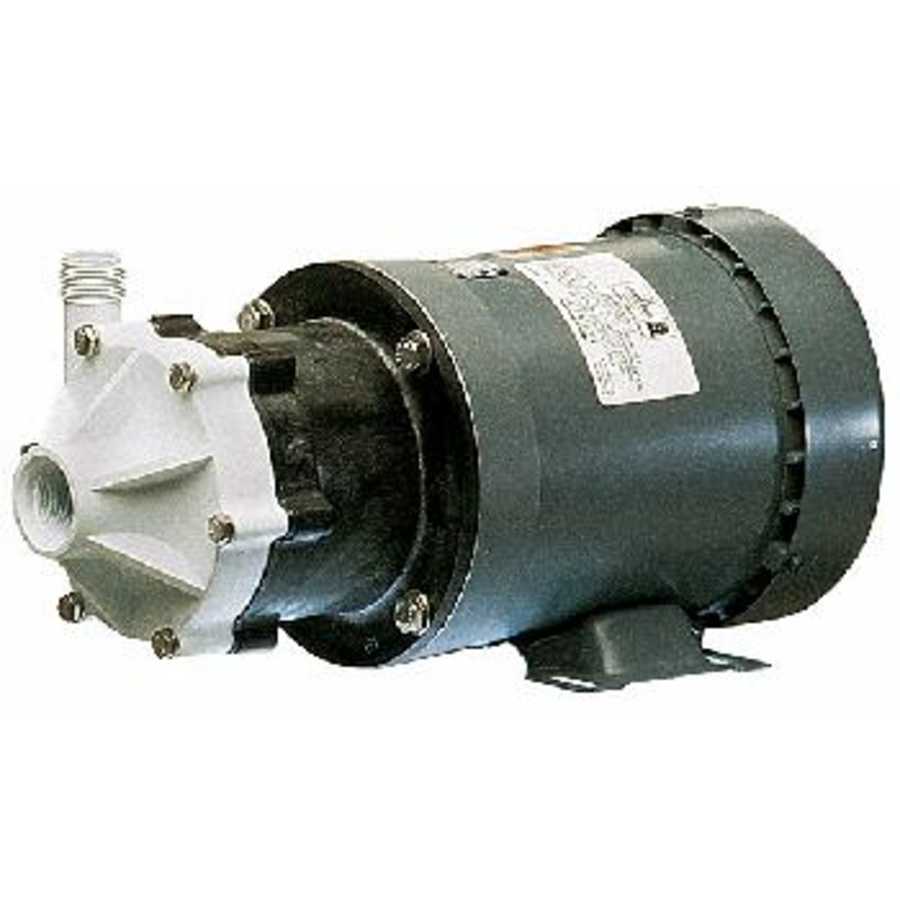

2280 GPH 115/230V Magnetic Drive Pump without Power Cord
Magnetically driven pumps for semi-corrosive chemicals and solutions. The MD-SC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polypropylene, ceramic and Buna-n(R) parts. Thermally protected, totally enclosed split-phase fan-cooled motor with ball bearings. Conduit box (must be wired in field).
Specific Gravity – up to 1.1′
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 150F (66C).
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Depth | 15.25 in. |
| Height | 7 in. |
| Width | 8.75 in. |
| Product Weight | 29 lbs. |
| Discharge Diameter | .75 in. |
| Flow Rate by Feet of Head | 21.7 gal / 40 ft, 31.7 gal / 20 ft, 36.7 gal / 10 ft, 28.3 gal / 30 ft, 38 gal / 5 ft |
| Shut Off Height | 51 in. |
| Shut Off Pressure | 22 |
Characteristics and Features
| Material | Plastic, Vitreous China |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
| Shutoff Head in Feet | 51 |
Warranty and Product Information
| Certifications | CSA |
Electrical and Operational Information
| Voltage | 115, 230 |
| Wattage | 835 |
| Frequency | 60 Hertz |
| Amperage | 11.6 |
| Horsepower | .5 |
| Color | Steel |
| Color Tone | Steel Tones |
