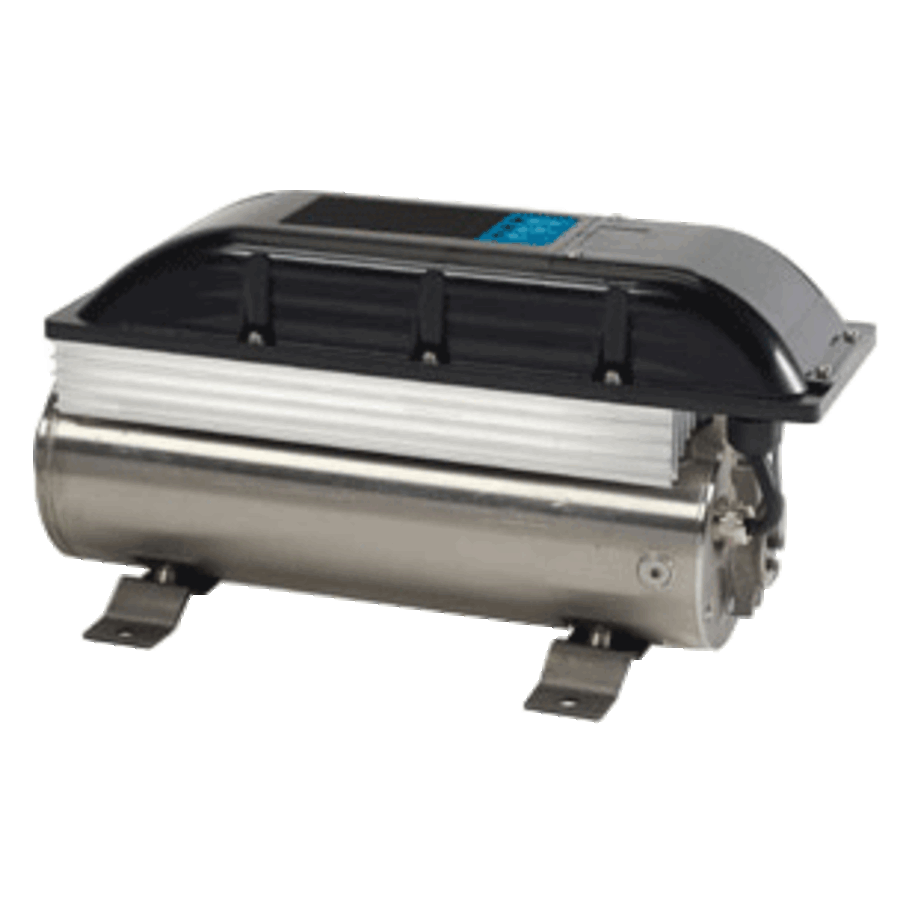

The Inline CP Constant Pressure System provides constant pressure for both private wells and municipal water systems.
Features:

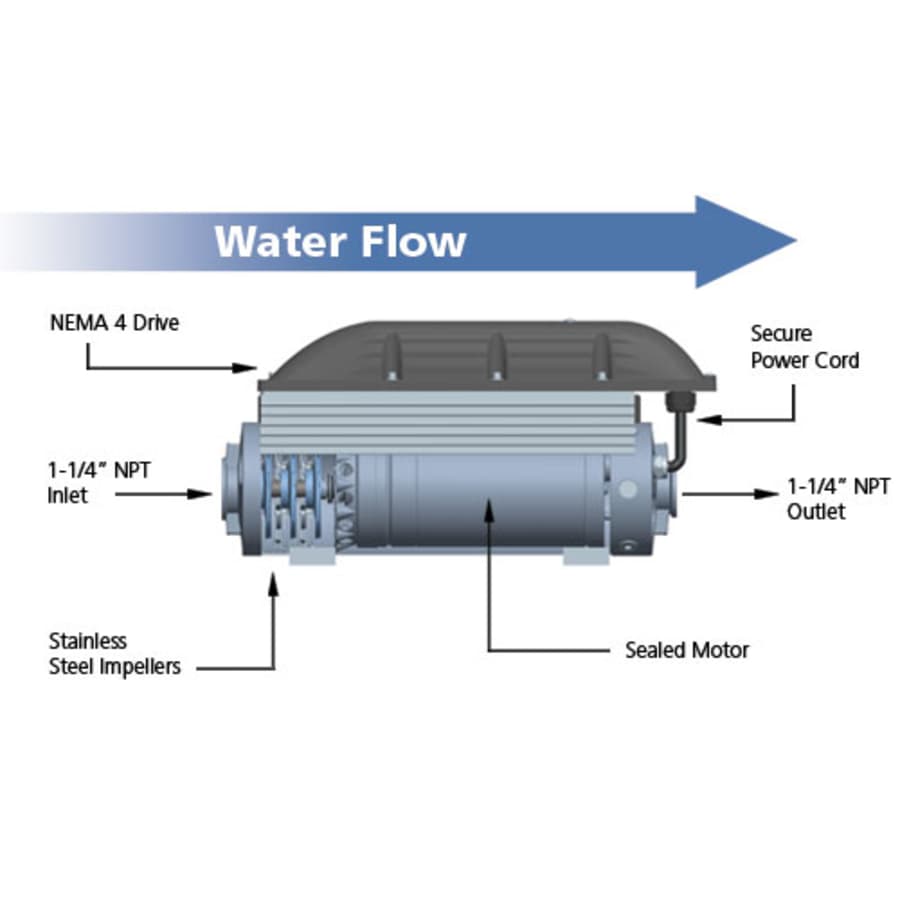

A complete and packaged system (Pump, motor, drive and pressure sensor in one box)
Small and compact design – Fits into small areas, even between floor joists
Stainless steel construction – Made for years of operation

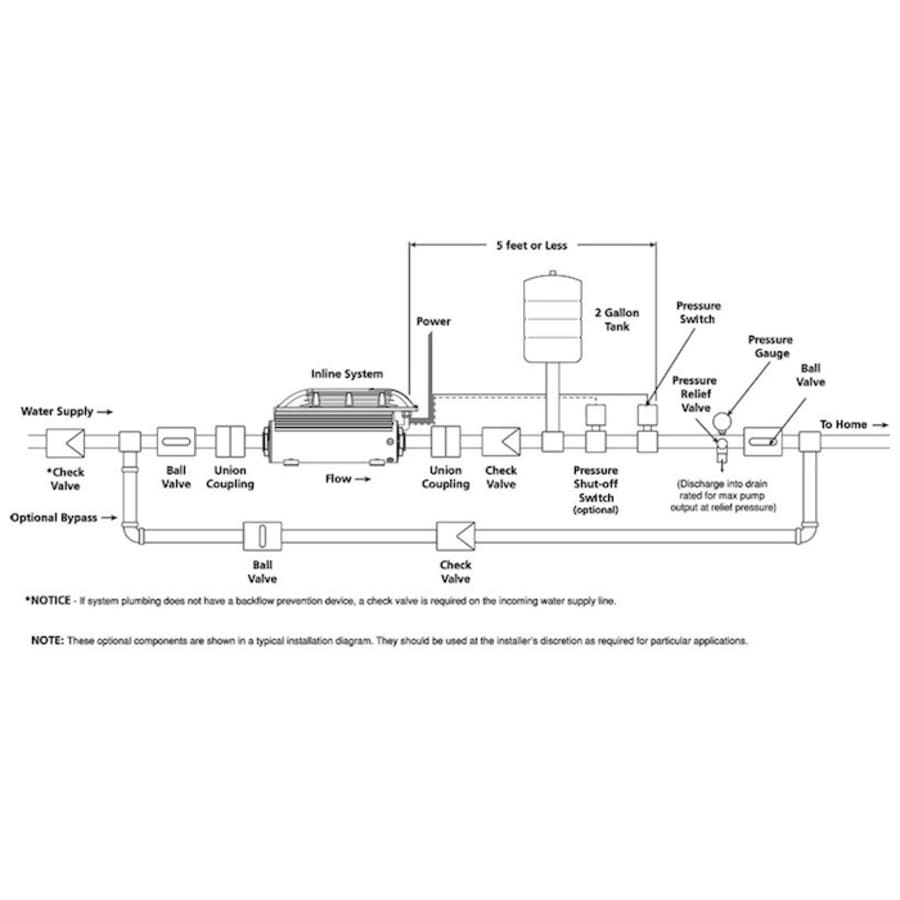

Simple and easy installation – Step-by-step illustrated instructions
Quiet and cool operation – Integrated motor design allows water to flow around it
NEMA 4 (IP56) electronics enclosure
Multiple mounting configurations – Install units where you need them: horizontal, vertical and even upside down
Product power rating: 1.2 hp, 0.9 kW
Shipping weight: 50 lbs, 22.7 kg
Built in system protections guard the Inline unit from many common failure modes including: surge protection, voltage underload, locked pump, open circuit, short circuit and overheated controller
Applications:
Boosted and constant water pressure from water storage/cistern systems
Homes – both in private and municipal applications
General pressure boosting
Sprinkler systems
Farming and commercial wash down systems
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Depth | 18.8, 8 in. |
| Width | 8 in. |
| Height | 9.3, 9.31 in. |
| Length | 18.84 in. |
| Product Weight | 33, 50 lbs. |
| Water Pressure (Max) | 80 PSI |
| Water Pressure (Min) | 25 PSI |
| Shut Off Height | 58.9 in. |
| Shut Off Pressure | 25.5 |
| Material | Plastic |
| Configuration | Magnetic Drive Pump |
| Water Connection Type | NPT |
| Shutoff Head in Feet | 25 |
| Submersible | No |
| Automatic | No |
| Certifications | CSA |
| Voltage | 190, 230, 260 |
| Frequency | 20, 50, 60, 63 Hertz |
| Amperage | 12 |
| Electrical Phases | 1 |
| Horsepower | 1.2 |
| Maximum Fluid Temperature | 104 °F |
