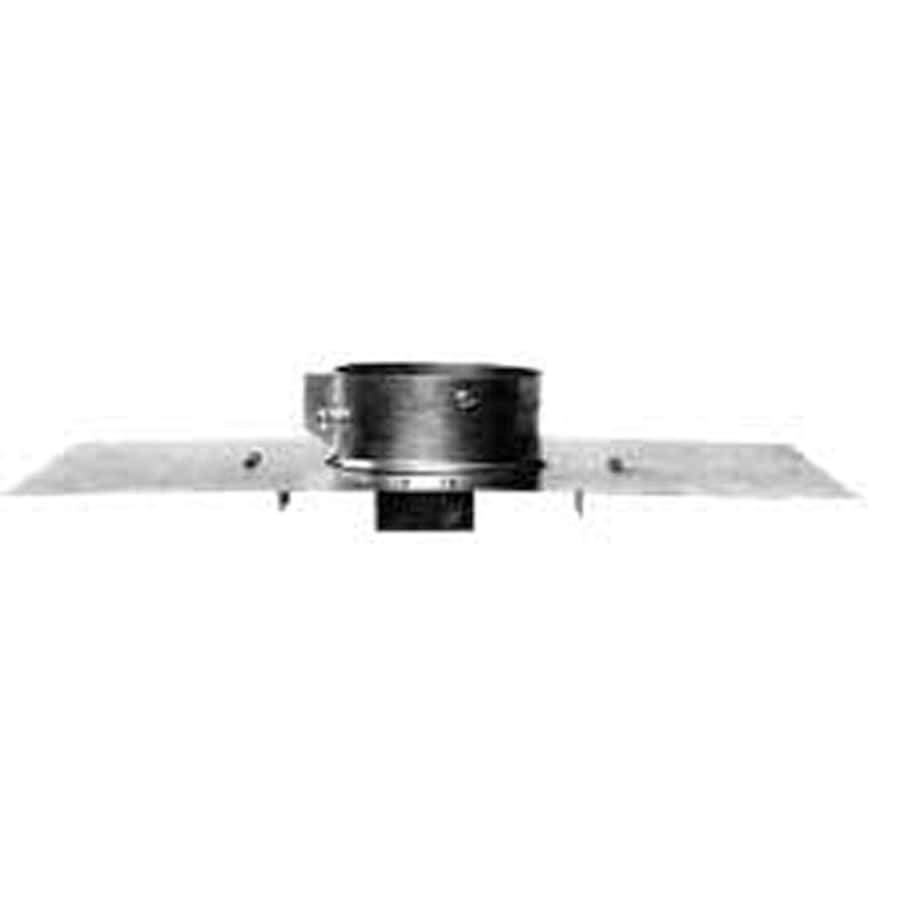

3″ Type B Gas Vent Roof Support Assembly from the RV Collection
This support assembly includes a support plate and cleat, and should be installed above the joist. It also serves as a firestop and will suppor a maximum of 60′ of gas vent.
The RV series offers round gas vent pipe and fittings for residential, commercial and industrial applications. It features a snap together, non-positional lock system, die formed ends, and eliminates the need for all cutting, fitting and special engineering. It has an improved joint design provides for a rapid and secure connection in seconds. The use of our “LockTab” feature gives installers the option of engaging this tab instead of using sheet metal screws, when required by local code.
Features:
Residential and light commercial and industrial
Materials: Galvanized steel outer and aluminum inner liner
Easy to use LockTab or non-positional lock system
Fuel: Gas
UL 441 listed
Minimum Safety Clearance to Combustibles:
1″ for diameters of 3″ to 24″
2″ for diameters 26″ to 48″
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest RV Collection
Specifications
| Material | Aluminum, Galvanized Steel |
| Configuration | Bracket |
| Pipe Class | Type B |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Pipe Inside Diameter | 3 in. |
| Bar Length | 17 in. |
| Base Width | 10 in. |
| Inside Diameter | 3.5 in. |
| Fuel Type | Gas |
| Color | Galvanized |
| Color Tone | Neutrals |
