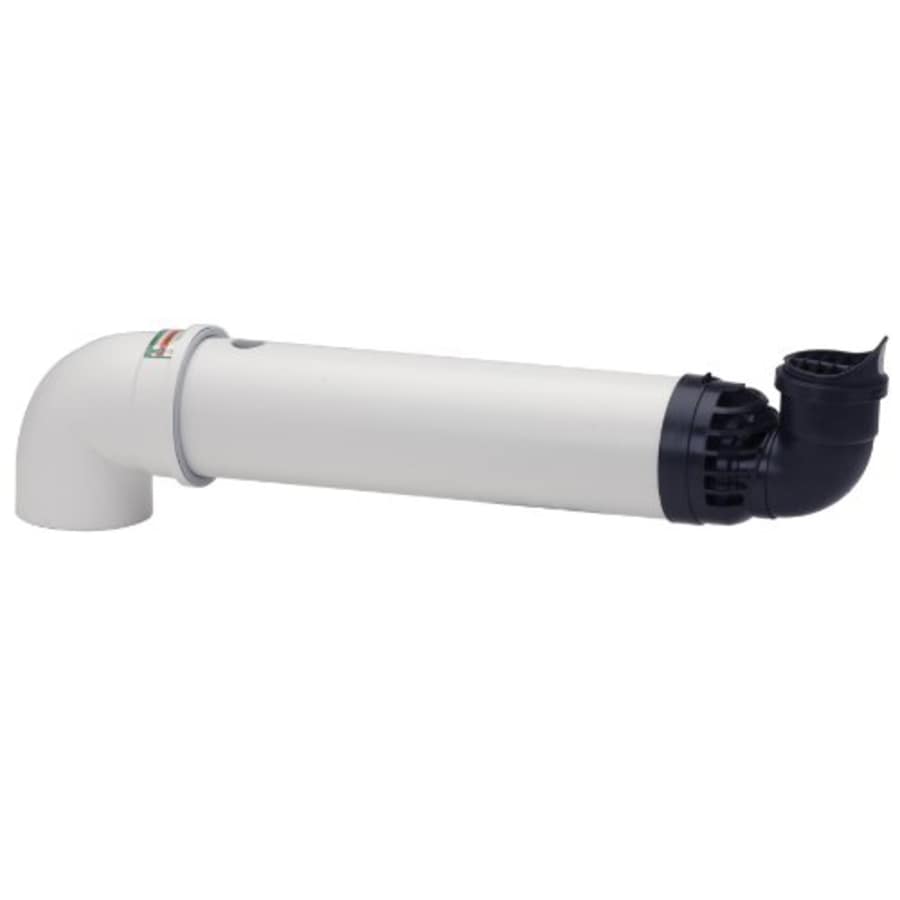

Rinnai 3” Inner Diameter – Direct Vent Pipe – Double Wall – Horizontal Termination Diverter Kit for Condensing Tankless Water Heaters

19” Horizontal Termination Diverter Kit for Condensing Tankless Water Heaters

Rinnai RCi Series Tankless Water Heaters utilize concentric venting with an inner pipe that is designed to withstand varying flue temperature conditions that may be experienced over the life of a condensing product. The Ubbink Rolux® condensing concentric vent system is considered part of the direct vent tankless water heater, and has been tested and approved with the appliance by a third party testing agency.

Plastic Outer Vent For Intake

Easy To Cut Compared To Stainless Steel
Dent And Impact Resistant
Corrosion-Proof
Non-Flammable Material (ul94-V0)
Seamless Extruded Materials
Casted Elbows And Adapters
White Semi-Gloss Finish (Eu Ral 9016)

Polypropylene Inner Vent For Exhaust

Easy To Cut Compared To Stainless Steel
Stable, Thick-Walled Material
Dent And Crease Resistant
Not Affected By Scratches
Seamless Extruded Material
No Weld lines
Thick-Walled, Casted Elbows And Adapters
Lightweight
Seal Rings With Maximum Temperature 400°F (Approx. 200°C)

Features:

GSA Approved
Zero Clearance To Combustibles
Engineered Especially For Gas Appliance Venting
Positive Fit And Lock Allows For Installation Assurance
Two Layers Of Pipe Equals Two Layers Of Protection
Seals At Every Joint Expand And Contract With Weather And Temperature Changes, So There’s No Flexing Or Cracking In The Venting
No Flammable, Messy Or Harmful Glues, Cements, Or Solvents Are Used
Single Penetration Through Wall For Both Intake And Exhaust
Professional Installation Recommended

Specifications:

Length: 19″
Maximum Wall Thickness: 10-7/8″
Wall Hole Size: 5-1/2″
Depth: 4-7/8″

For Rinnai Certified Installation:

Contact Rinnai at 844-348-4715
