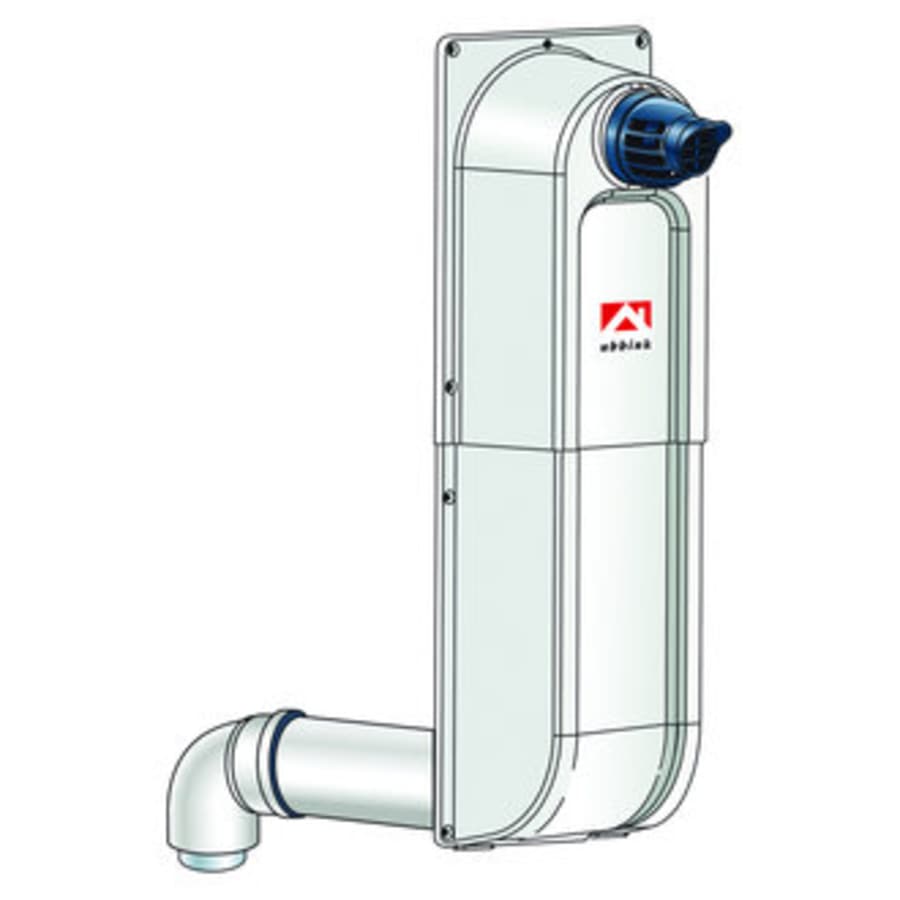

Rinnai 3″ Inner Diameter – Direct Vent Pipe – Double Wall – Raised Horizontal Termination Kit (Snorkel) for Condensing Tankless Water Heaters

Raised Horizontal Termination Kit (Snorkel) for Condensing Tankless Water Heaters

The Rinnai 224047PP raised horizontal termination kit is to be used when the venting will terminate horizontally, and the termination is less than 12 inches above the snow level. A termination of at least 12 inches above snow level is required, and this raised horizontal termination kit will raise the termination between 23.5-31.5 inches.

Plastic Outer Vent For Intake

Easy To Cut Compared To Stainless Steel
Dent And Impact Resistant
Corrosion-Proof
Non-Flammable Material (ul94-V0)
Seamless Extruded Materials
Casted Elbows And Adapters
White Semi-Gloss Finish (Eu Ral 9016)

Polypropylene Inner Vent For Exhaust

Easy To Cut Compared To Stainless Steel
Stable, Thick-Walled Material
Dent And Crease Resistant
Not Affected By Scratches
Seamless Extruded Material
No Weld lines
Thick-Walled, Casted Elbows And Adapters
Lightweight
Seal Rings With Maximum Temperature 400°F (Approx. 200°C)

Features:

GSA Approved
Zero Clearance To Combustibles
Engineered Especially For Gas Appliance Venting
Positive Fit And Lock Allows For Installation Assurance
Two Layers Of Pipe Equals Two Layers Of Protection
Seals At Every Joint Expand And Contract With Weather And Temperature Changes, So There’s No Flexing Or Cracking In The Venting
No Flammable, Messy Or Harmful Glues, Cements, Or Solvents Are Used
Single Penetration Through Wall For Both Intake And Exhaust
Professional Installation Recommended

For Rinnai Certified Installation:

Contact Rinnai at 844-348-4715

Additional Rinnai Links
View the Manufacturer Warranty

Specifications
