Cylinder Not Included. Image may display product with Cylinder.

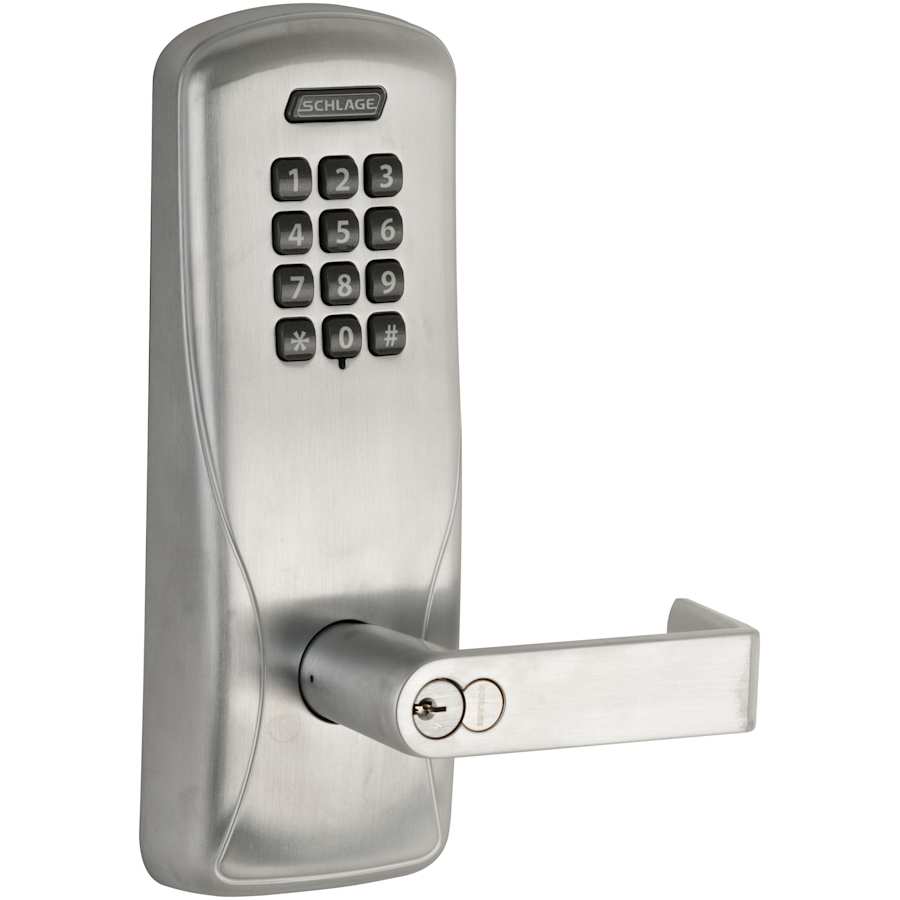

Introducing the new CO-Series from Schlage. It gives you added the security and convenience of electronic access control without the cost or complexity of a networked solution. CO-Series locks offer a range of options to meet your needs. In the world of standalone electronic locks, nothing compares to the CO-Series from Schlage. The CO-100 is an offline keypad programmable lock, recommended for openings with a relatively small number of users. (Maximum of 500 Users.)
Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more.
In Classroom application, a toggle credential can be used to put the lock into a “locked” or “unlocked” state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.
Features:
Standalone, offline, manually programmable lock
User rights stored on the lock
Normal, toggle, pass through, and freeze credential attributes available
Keypad
ANSI A156.25 / BHMA Grade 1
Mechanical key override is standard and compatible with multiple cylinder types
Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
Cylindrical (Tubular) locking mechanism
Less Schlage FSIC (full size interchangeable core) Cylinder
12 button keypad compatible with 3-6 digit PIN codes
Rhodes Style Lever
Specifications:
Maximum Users: 500
Credential Verification Time: Less Than 1 Second
Operating Temperature – Exterior: -31 to 151F (-35 to 66C)
Operating Temperature – Interior: 32 to 120F (0 to 49C) due to battery
Operating Humidity: 0 – 100% condensing
Exterior Dimensions:
Height: 9.46″
Width: 3.44″
Projection: 3.67″
Interior Dimensions:
Height: 10.1″
Width: 3.44″
Projection: 2.96″
Door Thickness: 1-3/8″ to 2-3/4″
Backset Options: 2-3/8″, 2-3/4″, 3-3/4″, 5″
Strike: 4-7/8″ x 1-1/4″ Square Corner T Strike with 1-3/16″ Curved Lip
Latch: 1-1/8″ x 2-1/4″ Square Corner Faceplate, 1/2″ Throw
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage CO-100 Series Collection
Specifications
| Thermostat | Basic |
| Handshower | Left, Right |
| Handle Material | Metal |
| Latch Faceplate | Square Corner |
| Concealed Screws | Yes |
| Function | Office, Keyless Entry, Electronic Keyless Entry |
| Keyway | C123 |
| Auto-Lock Capable | Yes |
| Insulation Type | Keypad |
| Lit Keypad | No |
| Number of Codes | 500 |
| Usage Monitoring | Yes |
| Interchangeable Core Type | Full Size |
| Handle Design | Rhodes |
| Mortise | No |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Collection | CO-Series, Rhodes |
| Certifications | ANSI, UL |
| ANSI Certification | A156.25 |
| Series | CO-Series |
| BHMA Certification | Grade 1 |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-3/4", 2-3/8", 2-5/8" |
| Handle Projection | 3.67 in. |
| Handle Height | 9.46 in. |
| Handle Width | 3.44 in. |
| Handle Length | 4.9375 in. |
| Power Source | Battery |
| Temperature (Max) | 120, 151 °F |
| Temperature (Min) | -31, 32 °F |
| Interchangeable Core | Yes |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
