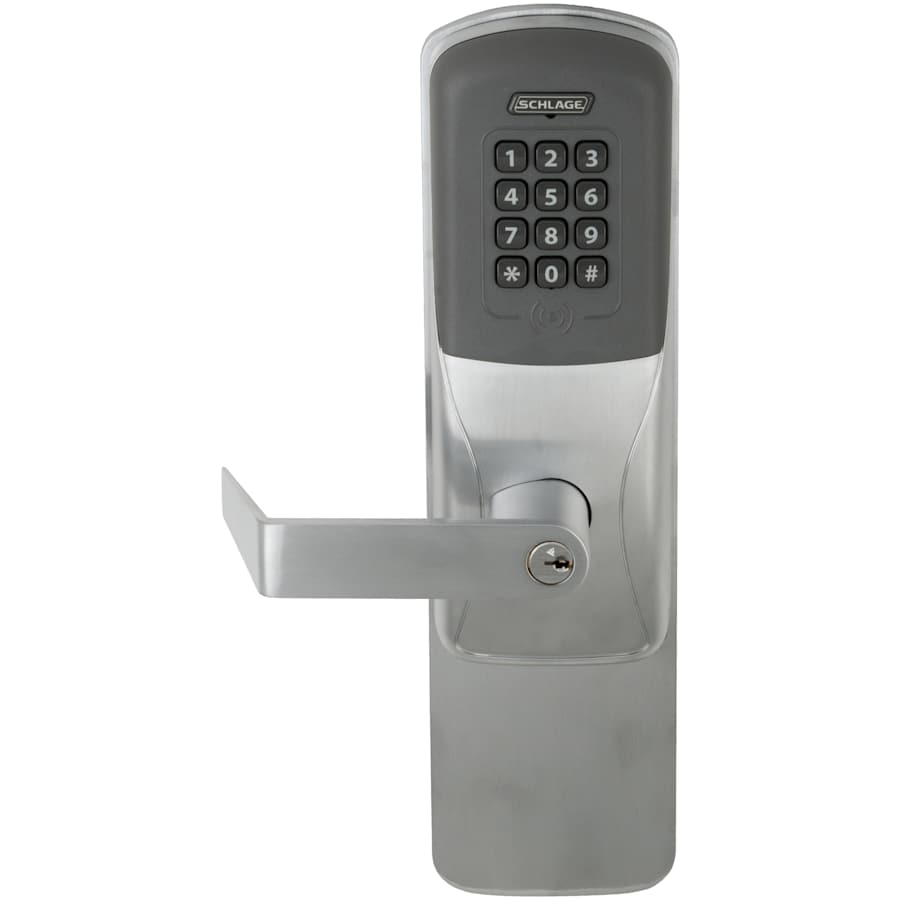

Schlage CO-Series Commercial Electronic Surface Vertical Rod Exit Trim with Keypad and Rhodes Lever

CO-Series Manually or Computer Programmable Classroom / Storeroom Commercial Electronic Surface Vertical Rod Exit Trim with Keypad and Rhodes Lever

Introducing the new CO-Series from Schlage. It gives you added the security and convenience of electronic access control without the cost or complexity of a networked solution. CO-Series locks offer a range of options to meet your needs. In the world of standalone electronic locks, nothing compares to the CO-Series from Schlage. The CO-200 is a computer programmable lock that can provide audit trails. The CO-200 can accommodate up to 2000 users and 2000 audits, depending on access control software.

Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more. See Features below for Exit Device Compatibility.

In Classroom application, a toggle credential can be used to put the lock into a “locked” or “unlocked” state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.

Features:

Standalone, offline, computer or manually programmable lock
User rights stored on the lock
Keypad
ANSI A156.25 / BHMA Grade 1
Mechanical key override is standard and compatible with multiple cylinder types
Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
Exit trim designed to work with Von Duprin 98 / 99, 98 / 99 XP, and 22 / 22F Surface Vertical Rod Exit Devices
Schlage key-in-lever 6 pin cylinder
12 button keypad compatible with 3-6 digit PIN codes
Rhodes Style Lever

Specifications:

Maximum Users: Up to 2000 (depending on access control software)
Credential Verification Time: Less Than 1 Second
Operating Temperature – Exterior: -31 to 151F (-35 to 66C)
Operating Temperature – Interior: 32 to 120F (0 to 49C) due to battery
Operating Humidity: 0 – 100% condensing
Max Current Requirement: Up to 250 mA
Exterior Dimensions:
Height: 9.46″
Width: 3.44″
Projection: 3.67″
Door Thickness: 1-3/4″ to 2-3/4″
Backset Options: 2-3/8″, 2-3/4″, 3-3/4″, 5″
Strike: 4-7/8″ x 1-1/4″ Square Corner T Strike with 1-3/16″ Curved Lip
Latch: 1-1/8″ x 2-1/4″ Square Corner Faceplate, 1/2″ Throw
