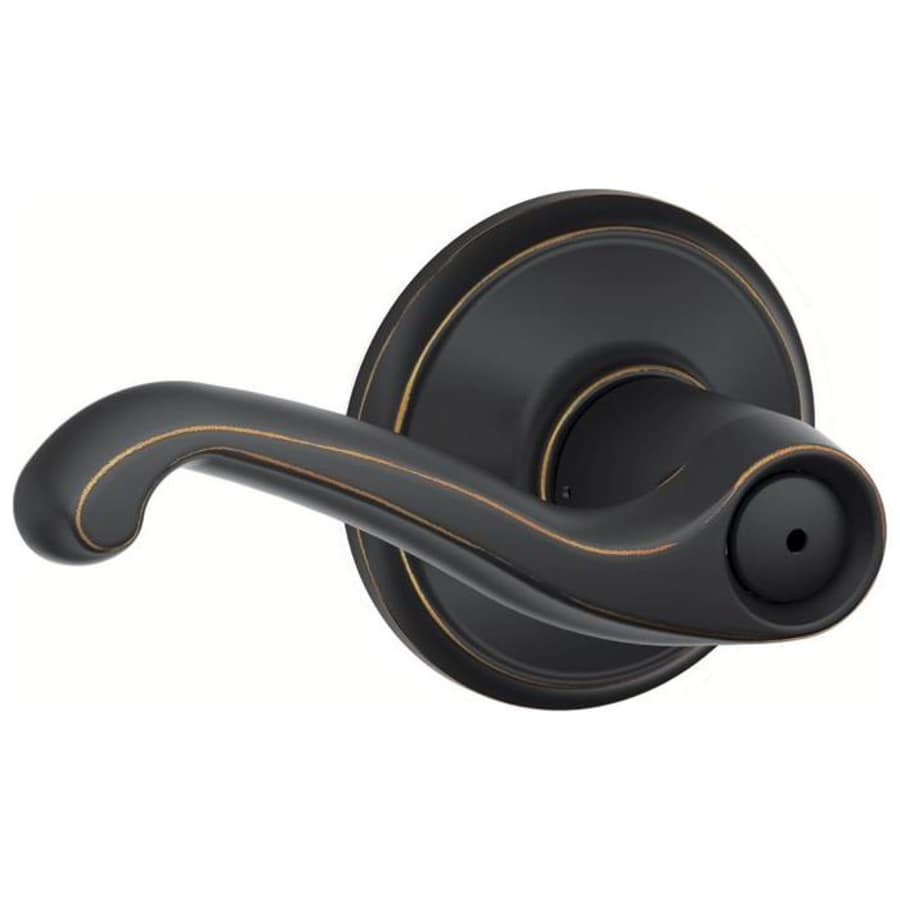

Privacy Function: Privacy door hardware features a push-button locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Â
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Â

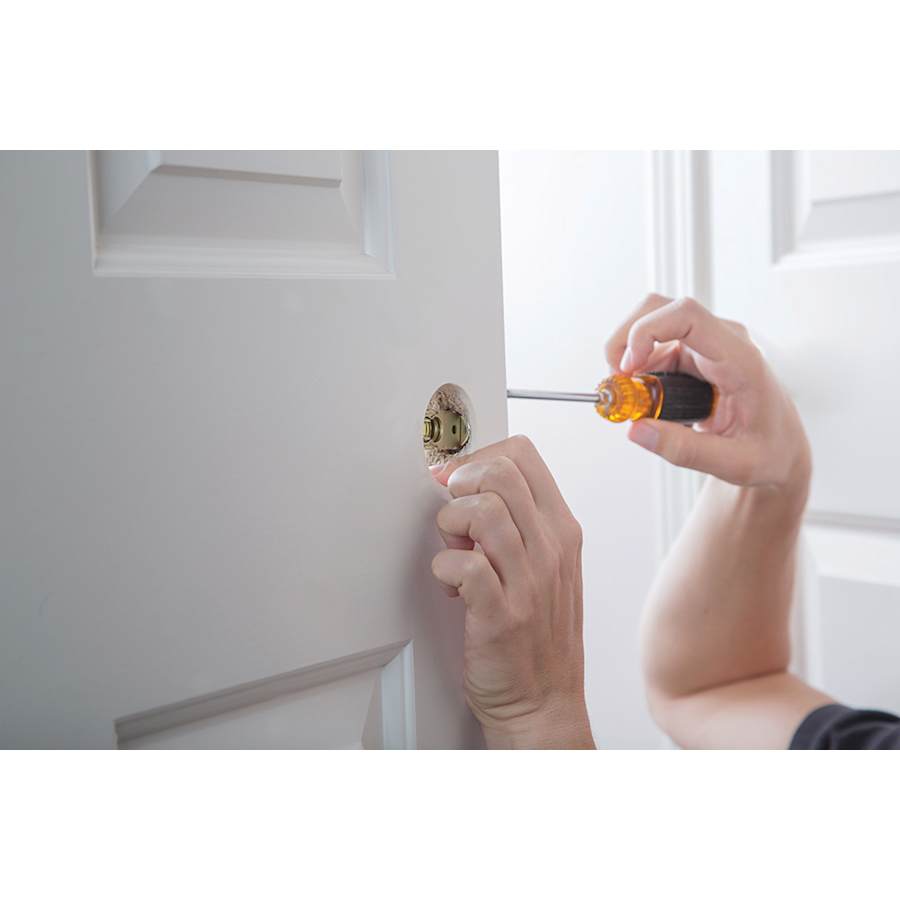

Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
Â
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Â
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Â
Specifications:
Backset: 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handing: Left, Right, Reversible
Handle Design: Birmingham
Trim Design: Addison
Product Weight: 1.5 lbs
Latch Faceplate: Drive-in, Round Corner
Product Variations:
F10-BIR-ADD: Passage Lever Set
F170-BIR-ADD: Single Dummy Lever
F40-BIR-ADD (This Model): Privacy Lever Set
F51-BIR-ADD: Keyed Entry Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Flair Collection
Specifications
| Thermostat | Traditional |
| Handle Material | Metal |
| Handshower | Left, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Concealed Screws | No |
| Function | Privacy |
| Rosette Shape | Round |
| Lever Shape | Scroll |
| Locking Mechanism | Push Button |
| Handle Design | Flair |
| Trim Design | Plymouth |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Flair |
| Series | F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Edge Bore | 7/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Color | Aged Bronze, Antique Brass, Antique Brass x Satin Nickel, Antique Pewter, Brass x Chrome, Bright Chrome, Matte Black, Oil Rubbed Bronze, Polished Brass, Polished Brass x Polished Chrome, Satin Brass, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
