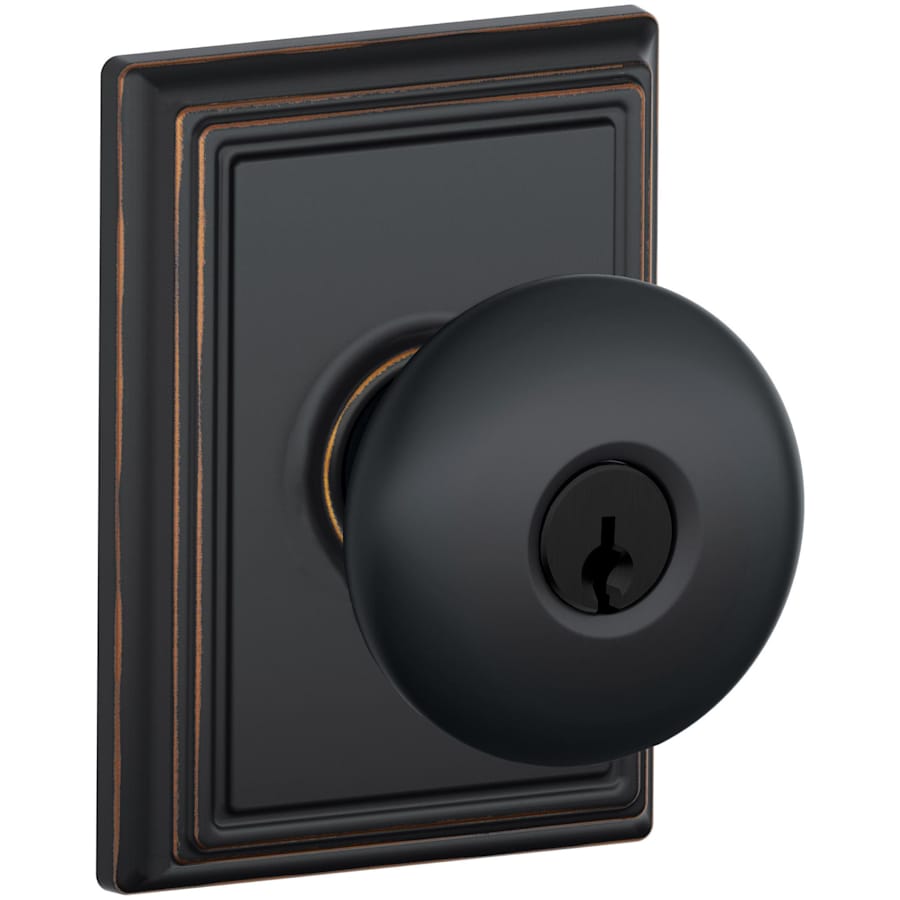

Schlage Plymouth Keyed Entry Single Cylinder Door Knob Set with Decorative Addison Trim

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Schlage Works for You

Installation is easy, all you need is a screwdriver and a little time. This set is designed to fit standard prep doors and most installations should take less than an hour.

BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.

A Lifetime Mechanical and Finish Warranty gives you the piece of mind that this product will be looking good and functioning smoothly for as long as you own it.(Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)

Panic proof functionality means the keyed entry function unlocks when the door is opened from the inside. This allows you to leave quickly and conveniently, and re-enter easily.

Keyed Entry (Single Cylinder) Function: Schlage single cylinder keyed entry door knob sets can be locked and unlocked from the exterior with a key, and then locked or unlocked from the inside with an associated turn-button. While primarily used to secure entrances and side doors, it can be used anywhere a little extra security is desired.

Features:

Adjusts to fit all standard door preparations
Simple three step installation is guaranteed to fit on standard pre-drilled doors
Interior screws are exposed
ANSI/BHMA A156.2, 2011, Grade 2
Non handed and field reversible which means this knob set can be installed on right and left handed doors.
Faceplates (Part 16-080): Supplied with 1/4″ Round Corner and Drive-In Faceplates
Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4″ x 1-5/8″
Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)

Specifications:

Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/8″ or 1-3/4″
Handing: Left, Right, Reversible
Knob Diameter: 2-3/16″
Projection: 2-5/16″
Product Weight: 1.55 lbs

Additional Functions:

F10-PLY-ADD: Passage Knobset
F40-PLY-ADD: Privacy Knobset
F51A-PLY-ADD (This Model): Keyed Entry Knobset
F170-PLY-ADD: Single Dummy Knob

For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
