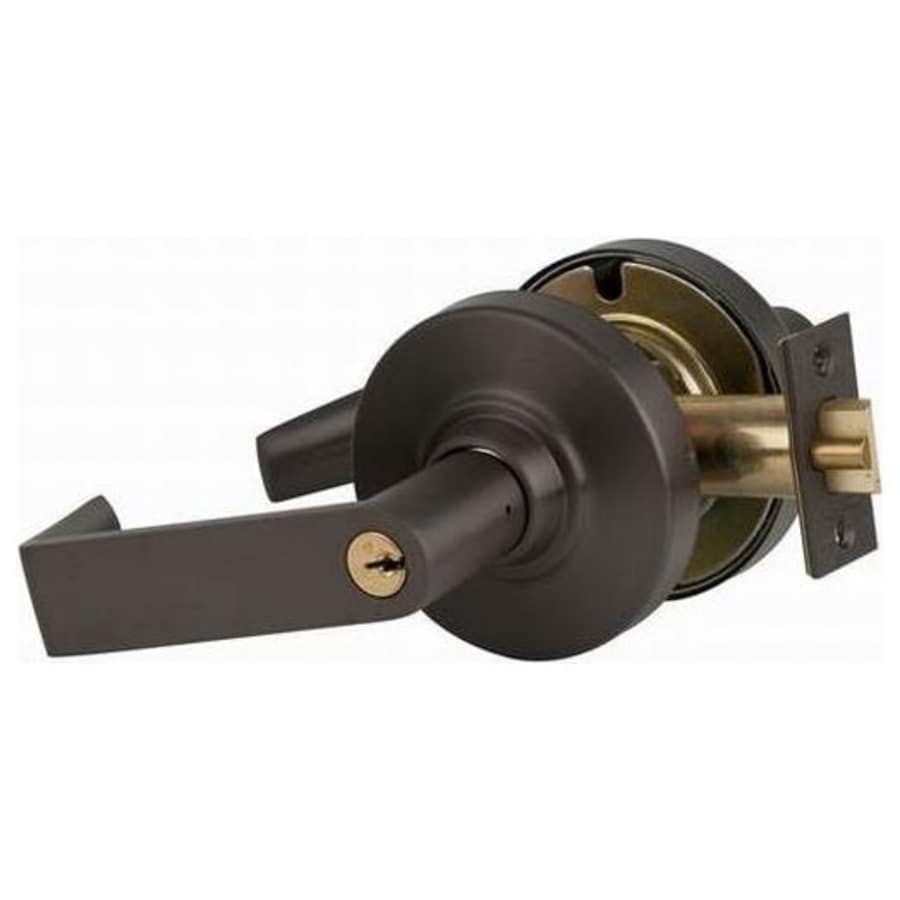

Keyed Entry Store Lock: This store lock is locked or unlocked by a key on the inside and outside.
Features:
The 6-Pin cylinder is not included – options are provided for Schlage C keyway
Meets ANSI/BHMA Certification A156.2/Grade 1
All metal construction for durability
Left or right handing allows versatile application
This product is compliant with ADA standards
Panic Proof: Yes
Fire Rated: Yes
This lever and trim have concealed screws
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Lever Length: 4-7/8″
Handing: Reversible (left or right)
Backset:Â 2-3/4″, 2-3/8″, 3-3/4″, 5″
Door Thickness:Â 1-3/4″, 1-5/8″, 1-7/8″, 2″, 2-1/8″
Handle Design: Rhodes
Cylinder: Schlage 6-Pin C Keyway
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| ADA | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Collection | Rhodes |
| Certifications | UL |
| Approved for Commercial Use | Yes |
| Series | ND-Series |
| Fire Rated | Yes |
| BHMA Certification | Grade 1 |
| Handle Material | Metal |
| Handshower | Left, Right |
| Concealed Screws | Yes |
| Function | Keyed Entry, Storeroom |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Style | Commercial |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Double Cylinder |
| Keyway | C123, C |
| Panic Proof | No |
| Handle Design | Rhodes |
| Interconnected | No |
| Mortise | No |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2-1/8" |
| Backset | 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.875 in. |
| Interchangeable Core | No |
| Color | Matte Black |
| Color Tone | Blacks |
