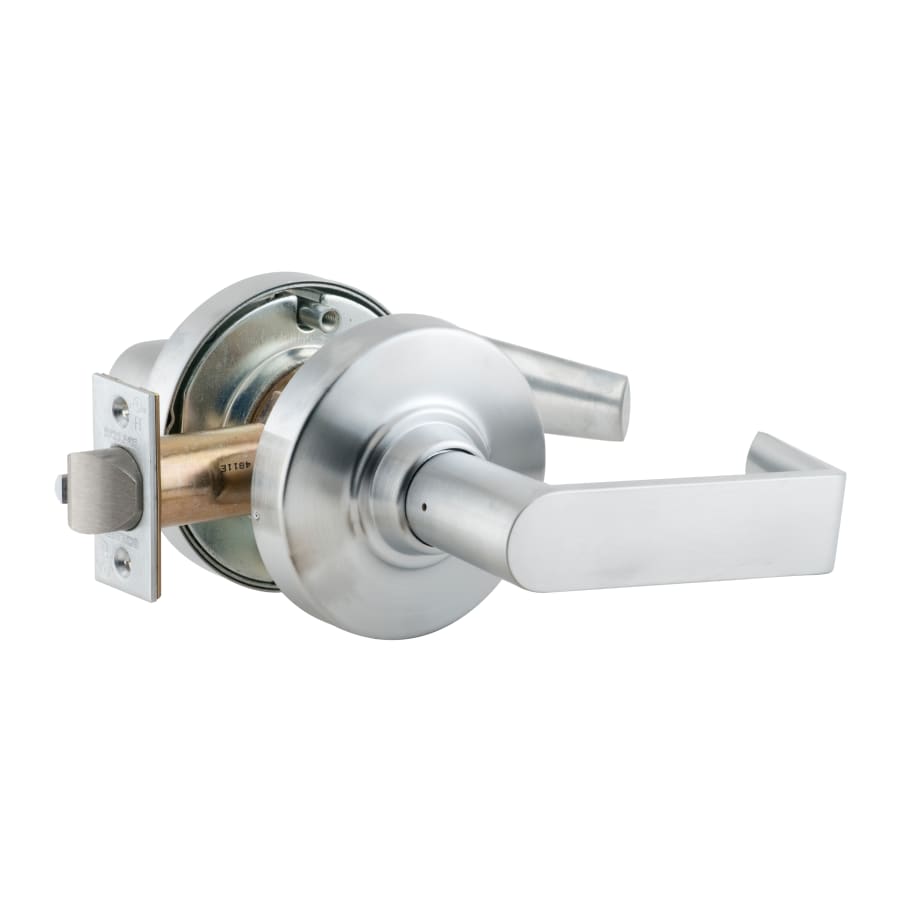

ND-Series Rhodes Commercial ANSI Grade 1 Heavy Duty Keyed Storeroom Door Lever Set Less Interchangeable Core (Core Options Provided)
The Storeroom function provides an outside lever that is fixed and allows entrance by use of a key only. The inside lever is always unlocked providing for panic proof exiting. Both the outside and inside levers are ADA compliant.
ND-Series locks are for commercial, institutional and industrial use, such as schools, hospitals and factories, where a long life of dependable operation must be combined with a high degree of resistance to physical abuse.
Features:
Keyed Storeroom Rhodes Lever Set Less Interchangeable Core
ADA Compliant
Reversible Lever Handle
Exceeds ANSI A156.2, Series 4000 Grade 1 Locked Lever Torque Requirements
Standard Deadlatch with 2-3/8″ Backset and Square Corner Faceplate
Door Thickness: 1-5/8″ to 2-1/8″
Steel Latchbolt with 1/2″ Throw
Specifications:
Lever Length: 4-7/8″
Lever Projection: 2-1/2″
Lever Rose Diameter: 3-7/16″
Cylinder: C Keyway 6 Pin
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Material | Zinc |
| Thermostat | Modern |
| Handle Material | Metal |
| Handshower | Right, Left, Reversible |
| Concealed Screws | Yes |
| Function | Keyed Entry, Storeroom |
| Latch Faceplate | Square Corner |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Style | Commercial |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | C123, C |
| Panic Proof | Yes |
| Handle Design | Rhodes |
| Interconnected | No |
| Interchangeable Core Type | Full Size |
| Mortise | No |
| ADA | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Collection | Rhodes |
| Certifications | ANSI, UL |
| Approved for Commercial Use | Yes |
| Series | ND-Series |
| Fire Rated | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 1 |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.875 in. |
| Handle Projection | 2.5 in. |
| Trim Height | 3.4375 in. |
| Trim Width | 3.4375 in. |
| Interchangeable Core | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
