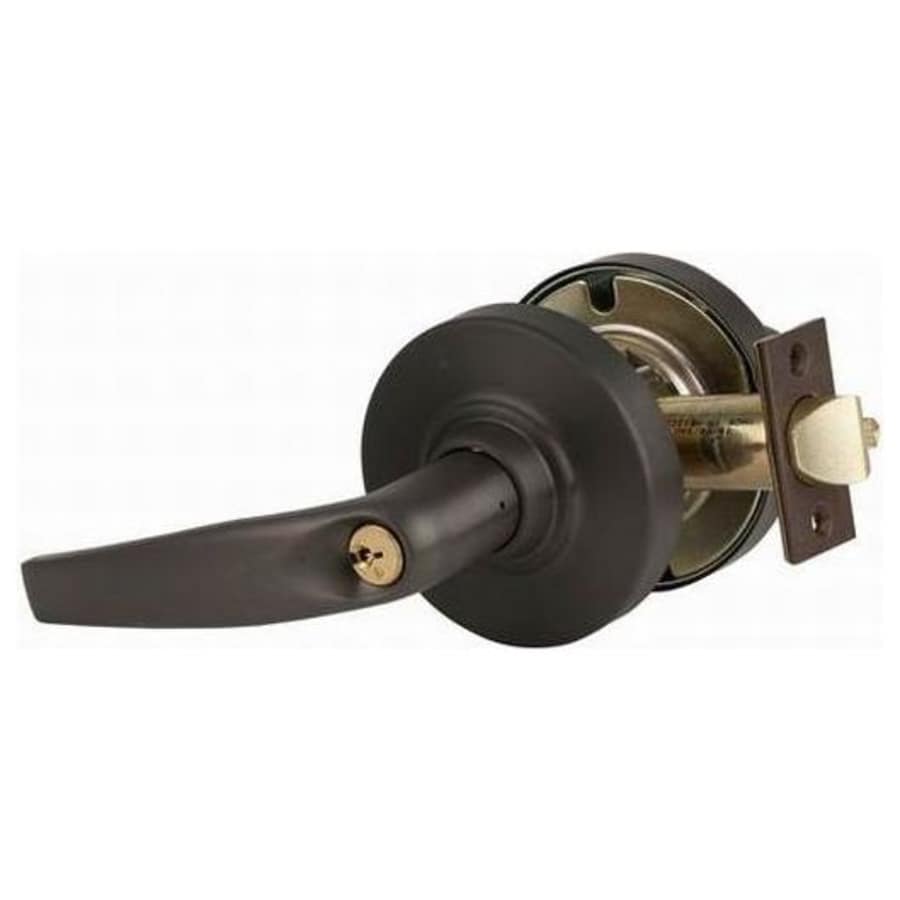

Institution Lever Lock from the Athens Collection
Both levers fixed.
Entrance by key in either lever.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times or emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Transitional |
| Handle Material | Metal |
| Style | Commercial |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder, Double Cylinder |
| Function | Asylum, Keyed Entry, Institutional |
| Handshower | Left, Reversible, Right |
| Keyway | C123, C |
| Panic Proof | No |
| Lever Shape | Straight |
| Interconnected | No |
| Handle Design | Athens |
| Mortise | No |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Athens |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
Dimensions and Measurements
| Backset | 2-3/4", 2-3/8", 3-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-7/8", 2-1/8" |
| Handle Length | 4.5625 in. |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
