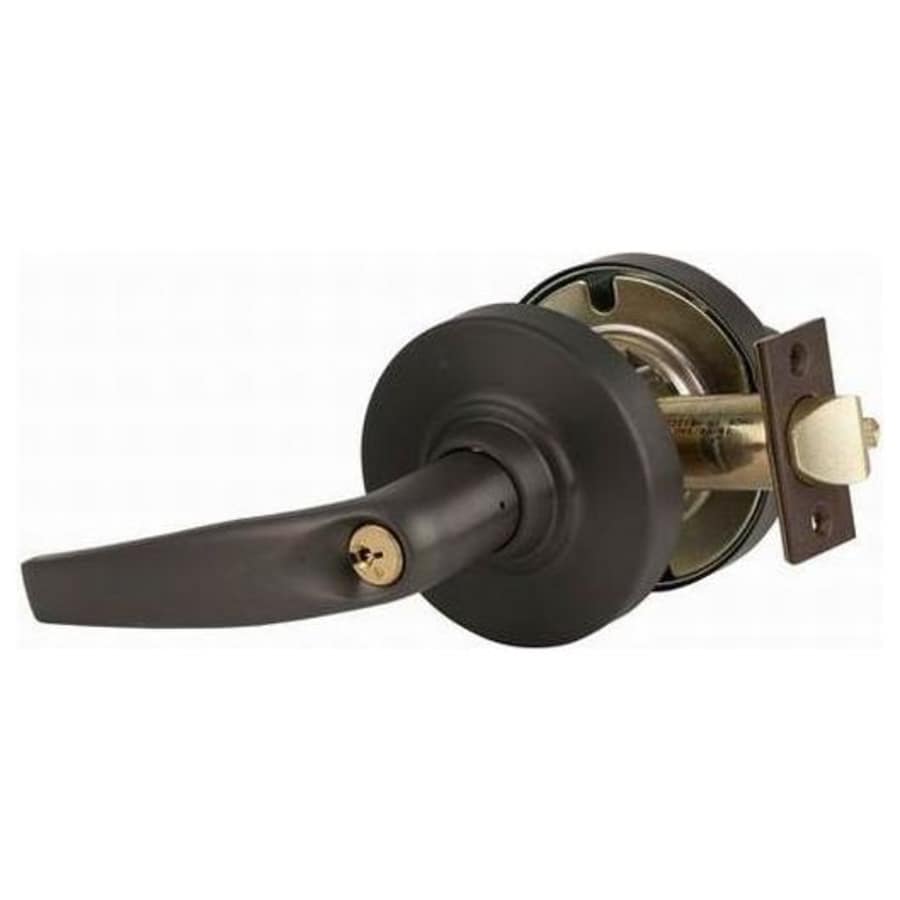

Storeroom Lock with Vandlgard Lever from the Athens Collection
Outside lever always disengaged. Entrance by key only. Inside lever always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Athens |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Series | ND-Series |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
Dimensions and Measurements
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.5625 in. |
Characteristics and Features
| Handle Material | Metal |
| Style | Commercial |
| Concealed Screws | Yes |
| Cylinder | 6 Pin |
| Cylinder Type | Single Cylinder |
| Function | Storeroom, Keyed Entry |
| Handshower | Left, Right |
| Keyway | C123, C |
| Latch Faceplate | Square Corner |
| Panic Proof | Yes |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Interconnected | No |
| Handle Design | Athens |
| Mortise | No |
Included Components
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
