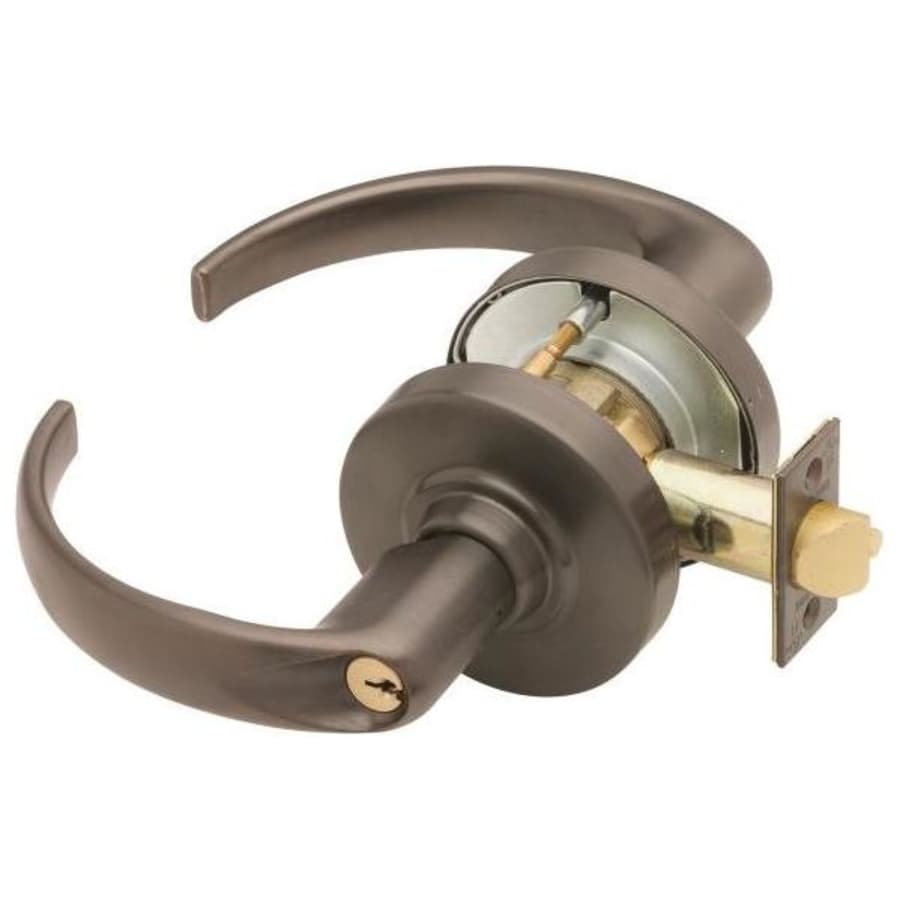

Institution Lever Lock from the Sparta Collection
Both levers fixed.
Entrance by key in either lever.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times or emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Sparta |
| Series | ND-Series |
| ADA | Yes |
| Manufacturer Warranty | 10 Year Limited |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Characteristics and Features
| Thermostat | Transitional |
| Style | Commercial |
| Function | Keyed Entry, Asylum |
| Keyway | C, C123 |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Handshower | Left, Right |
| Handle Material | Metal |
| Cylinder Type | Double Cylinder |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Concealed Screws | Yes |
| Lever Shape | Straight |
| Interconnected | No |
| Panic Proof | No |
| Handle Design | Sparta |
| Mortise | No |
Dimensions and Measurements
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Cross Bore | 2-1/8" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
