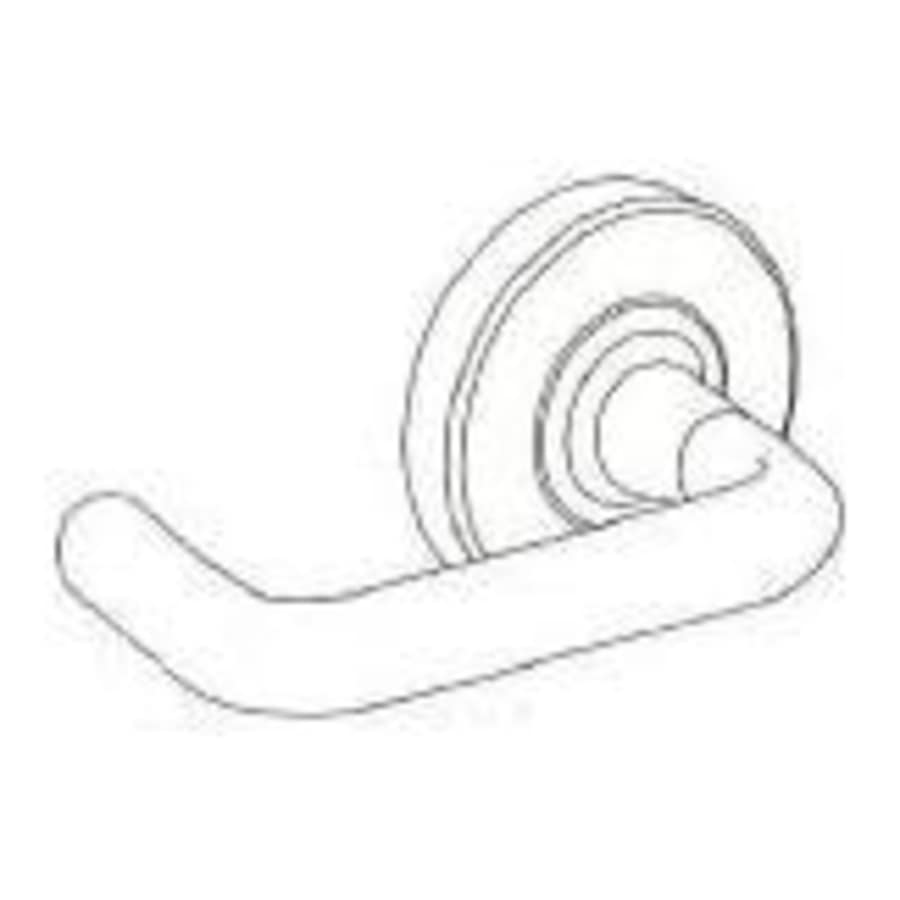

Classroom Lock with Vandlgard Lever from the Tubular Collection
Outside lever disengaged and unlocked by key. Inside lever always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Tubular |
| Series | ND-Series |
| Manufacturer Warranty | 10 Year Limited |
| Certifications | UL |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Characteristics and Features
| Thermostat | Modern |
| Function | Keyed Entry, Classroom |
| Keyway | C123, C |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Handshower | Left, Right |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Concealed Screws | Yes |
| Lever Shape | Round, Straight |
| Interconnected | No |
| Panic Proof | Yes |
| Handle Design | Tubular |
| Mortise | No |
Dimensions and Measurements
| Backset | 2-3/8", 5" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
