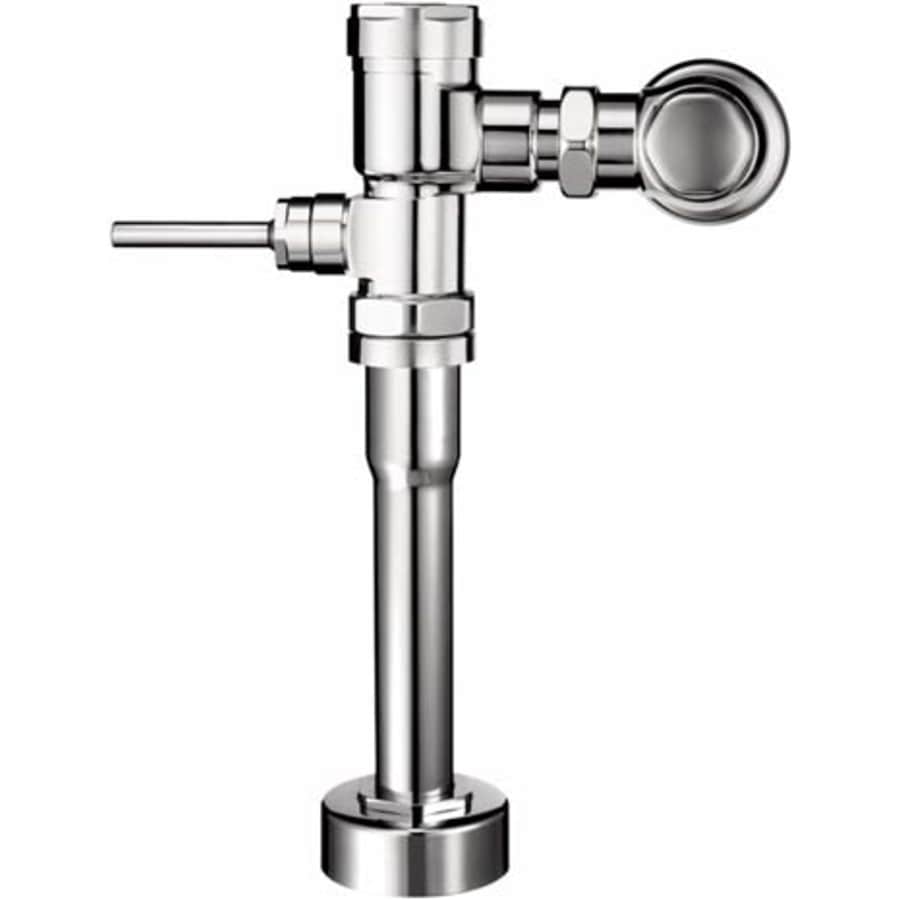

Exposed Urinal Flushometer
For 1″ top spud urinals. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1.7, ANSI/ASME A1½”, and Military Specification V-291.
Fixed Volume Piston with Filtered O-ring Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Locking Vandal Resistant Stop Cap
Adjustable Tailpiece
Less Vacuum Breaker
Spud Coupling, Wall and Spud Flanges for 1″ Top Spud
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
Sweat Solder Adapter Kit
Water Conserving 1.5gpf
Sweat Adapter, Stamped Wall Flange & Casing Tube
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Gem-2 Collection
Specifications
| Product Weight | 5.7 lbs. |
| Gallons Per Flush | 1.5 |
| Spud Size | 1.25, 1.5 in. |
| Insulation Type | Urinal |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| TX Drought Compliant | No |
| Eco Friendly | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
