Product Features:
Made in the United States of America
Flushometer is fully covered under manufacturer’s warranty for up to 3-years
Specialty finishes – covered under warranty for a year

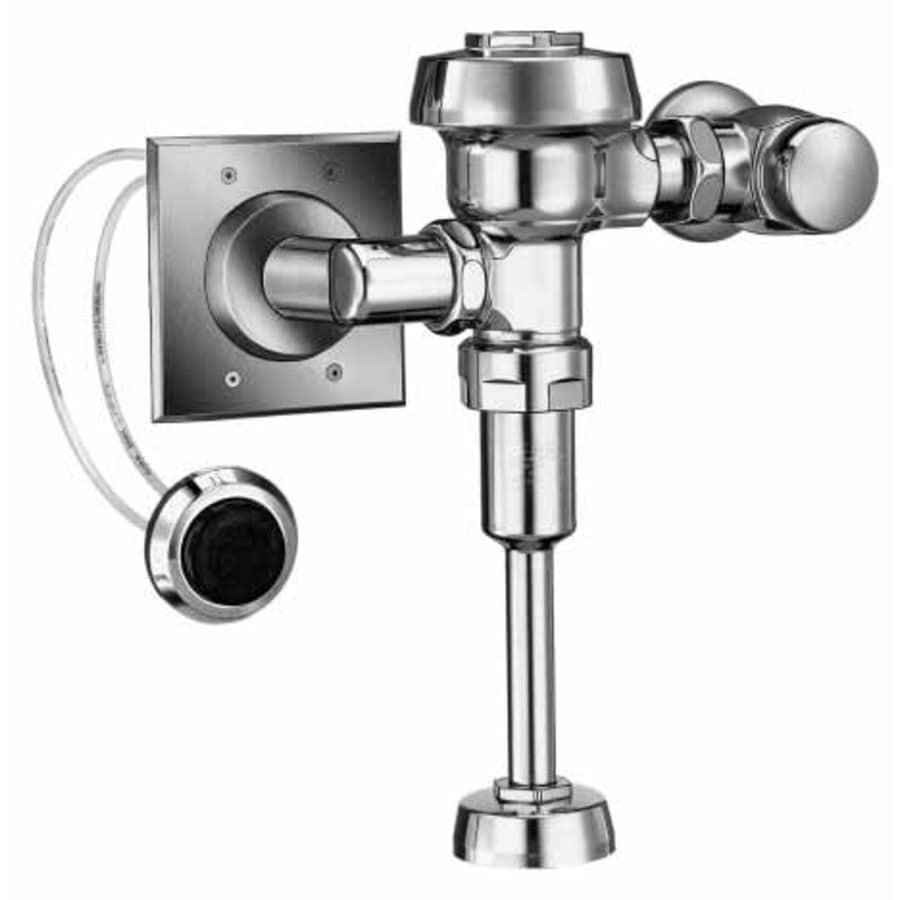

Exposed flushometer
For top spud installations
Hydraulically operated
Hydraulic actuator push button required for installation
ADA compliant
3/4″ I.P.S. screwdriver Bak-Chek™ angle stop
Includes free spinning, vandal resistant stop cap
Features an adjustable tailpiece
High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
Spud coupling and flange for 3/4″ connection
Sweat solder adapter with cover tube and cast set screw wall flange
Diaphragm, stop seat and vacuum breaker molded from Permex™ rubber compound for chloramine resistance
Technologies and Benefits:
Eco Friendly: Sloan’s Eco Friendly flushometers do more than protect our nation’s water resources. By using less water you will enjoy reduced water water bills which achieving the same efficiency of a standard flushometer.
Product Specifications:
Height: 11-1/2″ (Height from toilet to water inlet)
Depth: 2-1/4″ (Minimum distance flushometer extends from wall)
Width: 7-5/16″ (Distance between wall installation holes)
Flow Rate: 1 GPF (gallons-per-flush)
Rated Operating Pressure: 25-100 PSI
Codes and Compliance:
ASSE 1037
Buy American Act Compliant
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Height | 11.5 in. |
| Product Weight | 7.91 lbs. |
| Width | 7.312 in. |
| Depth | 2.25 in. |
| Gallons Per Flush | 1 |
| Spud Size | .75 in. |
| Water Pressure (Max) | 100 PSI |
| Water Pressure (Min) | 25 PSI |
| Material | Metal |
| Insulation Type | Urinal |
| Configuration | Hydraulic |
| Control Type | Manual |
| Spud Placement | Top |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 3 Year |
| CA Drought Compliant | No |
| Certifications | ASSE |
| Eco Friendly | Yes |
| Made in America | Yes |
| TX Drought Compliant | No |
| ASSE Code | 1037 |
| Color | 11-1/2 |
| Color Tone | Multi-Colored |
