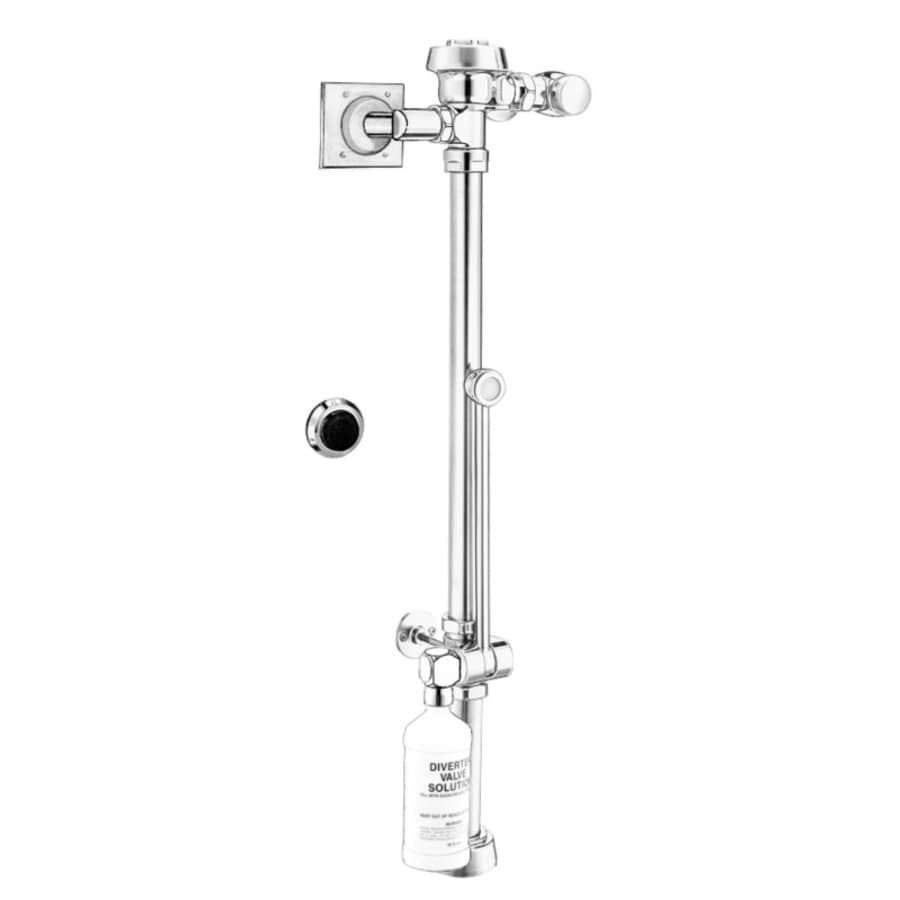

Sloan Royal 3.5 GPF ADA Compliant Bedpan Washer Water Closet Hydraulic Flushometer with 1″ I.P.S. Outlet – For Floor Mounted or Wall Hung Top Spud Bowls

Product Features:
Made in the United States of America
Flushometer is fully covered under manufacturer’s warranty for up to 3-years
Specialty finishes – covered under warranty for a year
Exposed flushometer
For top spud installations
Hydraulically operated
Hydraulic actuator push button required for installation
ADA compliant
1″ I.P.S. screwdriver Bak-Chek™ angle stop
Includes free spinning, vandal resistant stop cap
Features an adjustable tailpiece
High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
Spud coupling and flange for 1-1/2″ connection
Sweat solder adapter with cover tube and cast set screw wall flange
Diaphragm, stop seat and vacuum breaker molded from Permex™ rubber compound for chloramine resistance

Technologies and Benefits:

Eco Friendly: Sloan’s Eco Friendly flushometers do more than protect our nation’s water resources. By using less water you will enjoy reduced water water bills which achieving the same efficiency of a standard flushometer.
Bedpan Washer Diverter Assembly with the Following Features::
Solid one-piece body construction
Solid brass spray arm
Counter balanced pivot assembly
Diverter valve wall support
Product Specifications:
Height: 34-3/8″ (Height from toilet to water inlet)
Depth: 2-1/4″ (Minimum distance flushometer extends from wall)
Width: 7-5/16″ (Distance between wall installation holes)
Flow Rate: 1.6 GPF (gallons-per-flush)
Codes and Compliance:
ASSE 1037
ANSI/ASME 112.19.6
UPC certified
Listed by I.A.P.M.O
US Green Building Council
EPA Green Power Partner
