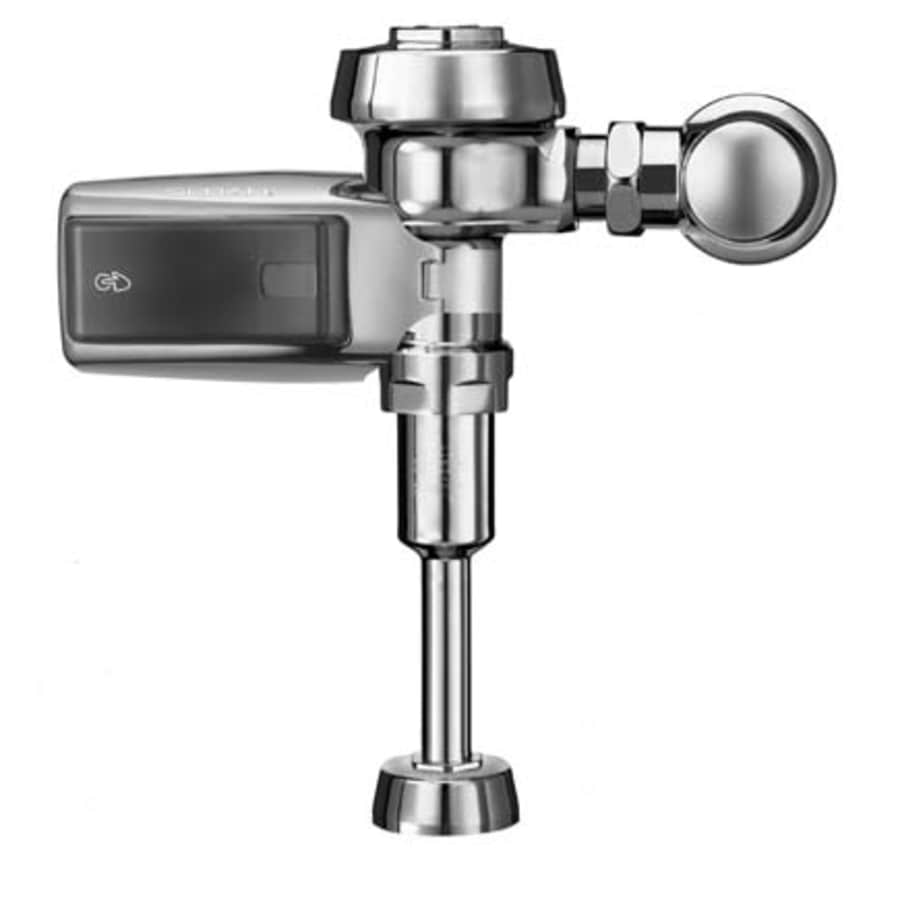

Sloan Exposed, Sensor Activated, Royal Optima SMOOTH Urinal Flushometer for ¾” top spud urinals

Exposed Electronic Urinal Flushometer

Exposed, Battery Powered, Sensor Activated, Royal Optima SMOOTH Urinal Flushometer for 3/4″ top spud urinals. Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2, and Military Specification V-29193. Installation conforms to ADA requirements.

PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
3/4″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 3/4″ Top Spud
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
ADA Compliant OPTIMA SMOOTH Battery Powered Infrared Sensor for automatic “Hands-free” operation
Sensor with Automatic Range Adjustment
Chrome Plated Metal Sensor Housing
Mechanical Manual Override Flush Handle
Four (4) Size C Batteries included
“Low Battery” Flashing LED
“User in View” Flashing LED
25 to 80 psi Operating Range
Water Conserving 0.5gpf
CEC flow rate compliant when paired with non-wall mounted urinals. Non-compliant when paired with wall mounted urinals – CEC regulation requires 0.125 GPF
