Product Features:
Made in the United States of America
Flushometer is fully covered under manufacturer’s warranty for up to 3-years
Specialty finishes – covered under warranty for a year

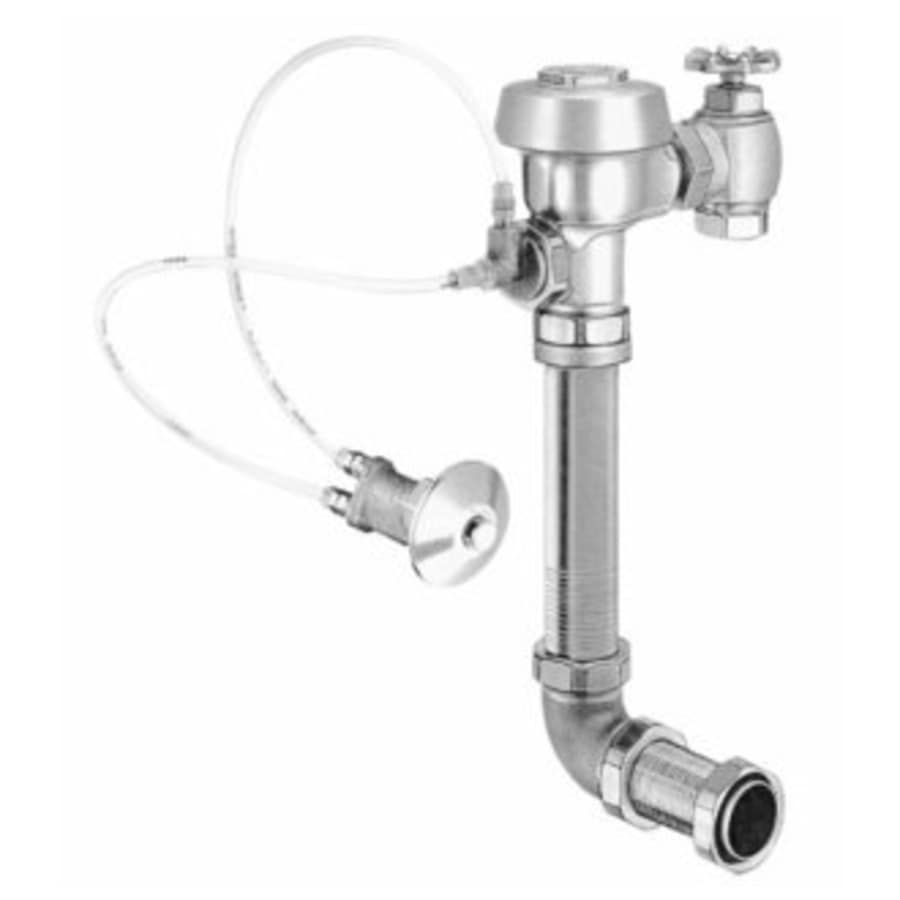

Concealed flushometer
For back spud installations
Hydraulically operated
Hydraulic actuator push button required for installation
ADA compliant
1″ I.P.S. wheel handle Bak-Chek™ angle stop
For use with: Acorn®, Bradley®,Metcraft®, Willoughby® and similar fixtures
Features an adjustable tailpiece
High back pressure vacuum breaker
Elbow flush connection and coupling for 1-1/2″ NPT connection
Sweat solder adapter
Diaphragm, stop seat and vacuum breaker molded from Permex™ rubber compound for chloramine resistance
Technologies and Benefits:
Eco Friendly: Sloan’s Eco Friendly flushometers do more than protect our nation’s water resources. By using less water you will enjoy reduced water water bills which achieving the same efficiency of a standard flushometer.
Product Specifications:
Height: 16″ (Height from toilet to water inlet)
Depth: 4-1/8″ (Minimum distance flushometer extends from wall)
Width: 4-3/4″ (Distance between wall installation holes)
Flow Rate: 1.6 GPF (gallons-per-flush)
Rated Operating Pressure: 25-100 PSI
Codes and Compliance:
ASSE 1037
US Green Building Council
EPA Green Power Partner
Buy American Act Compliant
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Height | 16 in. |
| Product Weight | 8.8 lbs. |
| Width | 4.75 in. |
| Depth | 4.125 in. |
| Gallons Per Flush | 1.6 |
| Spud Size | 1.5 in. |
| Water Pressure (Max) | 100 PSI |
| Water Pressure (Min) | 25 PSI |
| Material | Metal |
| Insulation Type | Toilet |
| Configuration | Hydraulic |
| Control Type | Manual |
| Spud Placement | Rear |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 3 Year |
| CA Drought Compliant | No |
| Certifications | ASSE |
| Eco Friendly | Yes |
| Made in America | Yes |
| TX Drought Compliant | No |
| Color | Chrome, With HY-97 |
| Color Tone | Silver Tones, Whites |
