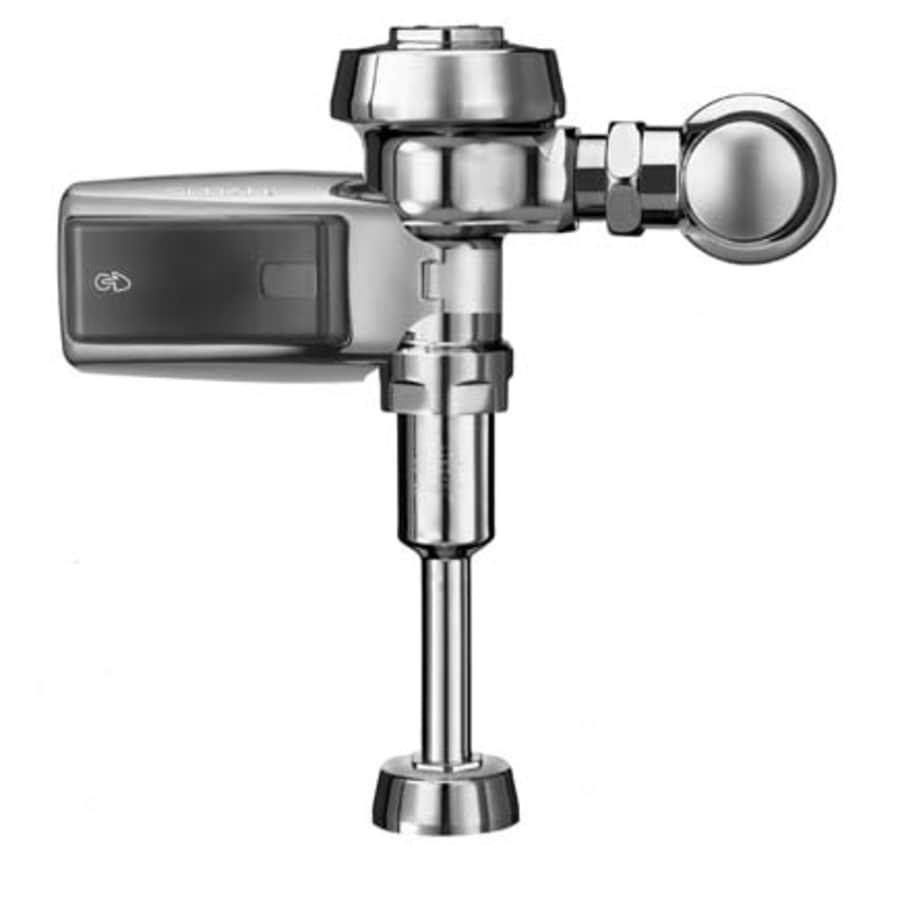

Exposed, Battery Powered, Sensor Activated, Royal Optima SMOOTH Urinal Flushometer for 3/4″ top spud urinals
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
3/4″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1″ Top Spud
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
ADA Compliant OPTIMA SMOOTH Battery Powered Infrared Sensor for automatic “Hands-free” operation
Sensor with Automatic Range Adjustment
Chrome Plated Metal Sensor Housing
Mechanical Manual Override Flush Handle
Four (4) Size C Batteries included
“Low Battery” Flashing LED
“User in View” Flashing LED
25 to 80 psi Operating Range
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Product Weight | 12.5 lbs. |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.5 in. |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| TX Drought Compliant | No |
| Eco Friendly | No |
| Insulation Type | Urinal |
| Configuration | Exposed |
| Control Type | Electronic |
| Spud Placement | Top |
| Color | Chrome |
| Color Tone | Silver Tones |
