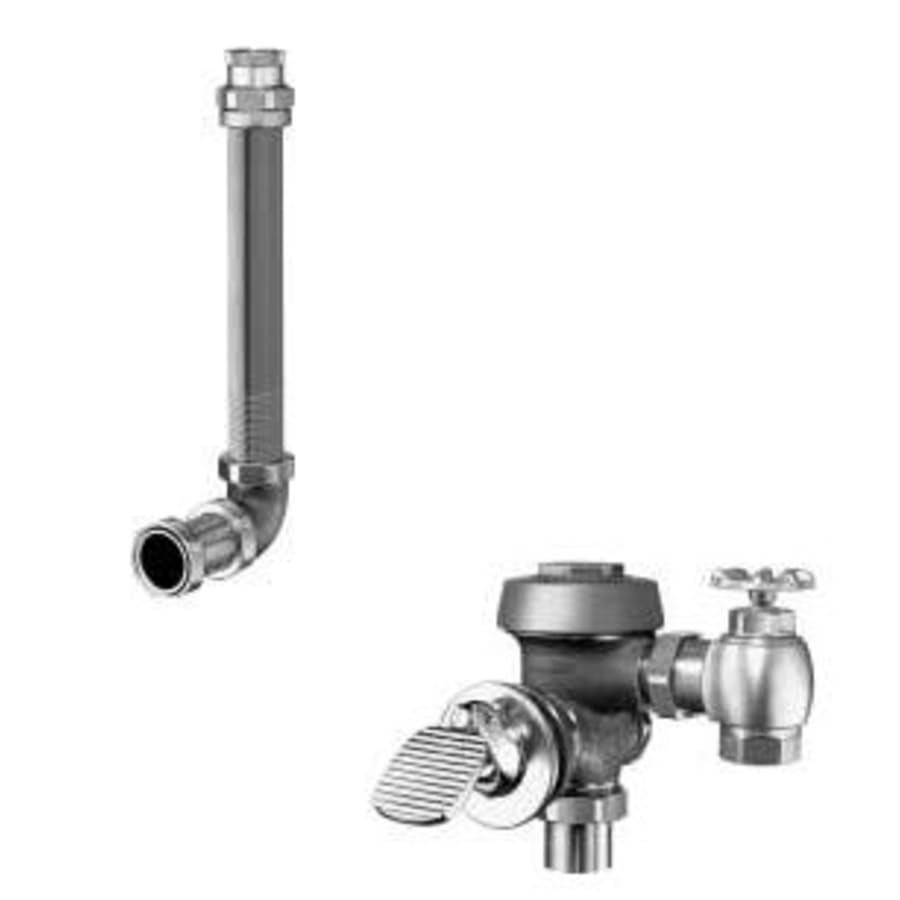

Water Saver (3.5gpf) Concealed Water Closet Foot Pedal Flushometer, for wall hung concealed 1-1/2″ back spud bowls.
Features:
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
1″ I.P.S. Wheel Handle Bak-Chek? Angle Stop
Adjustable Tailpiece
1″ Female I.P.S. Union Outlet
1″ Inlet Adapter Elbow Flush Connection and Spud Coupling for 1½” Concealed Back Spud
High Back Pressure Vacuum Breaker
Sweat Solder Adapter
Exposed Parts Chrome Plated
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID? Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX? Rubber Compound for Chloramine Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| TX Drought Compliant | No |
| Eco Friendly | No |
| Insulation Type | Toilet |
| Control Type | Manual |
| Spud Placement | Rear |
| Gallons Per Flush | 3.5 |
| Color | 10-3/4 LDIM, 3-3/4 LDIM, 6-3/4 LDIM |
| Color Tone | Multi-Colored |
