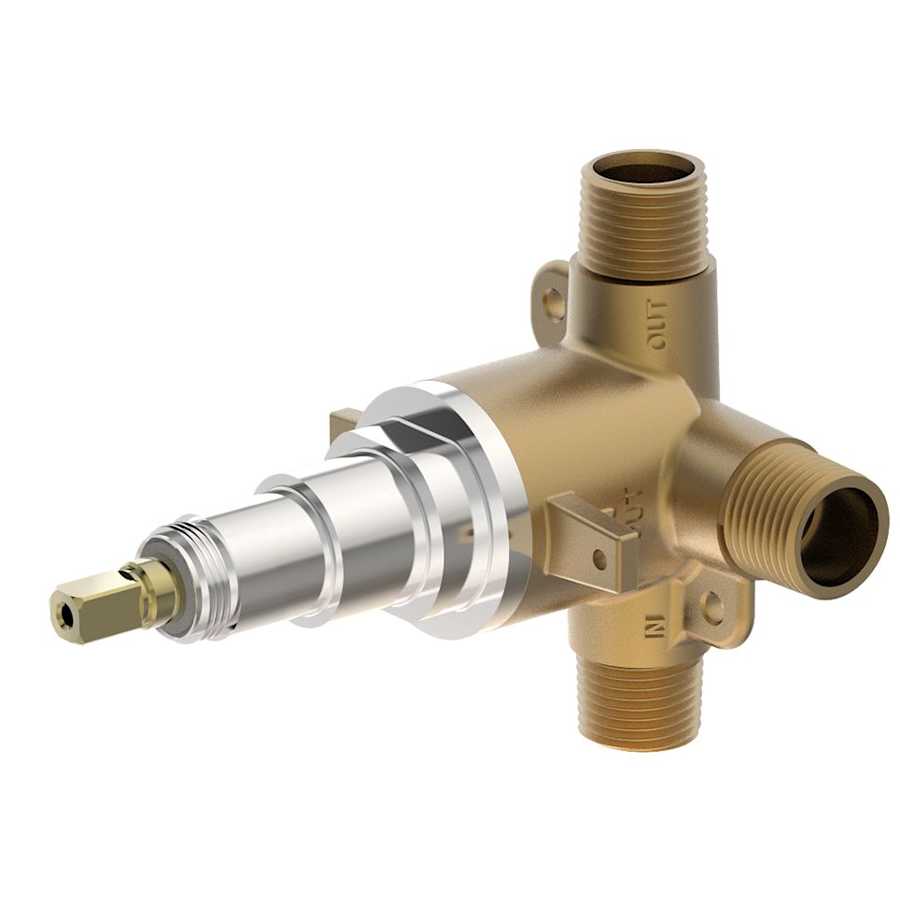

The Symmons ½ Inch Dual Outlet Diverter Valve enables flow to be diverted to, or shared with, two different shower functions, such as a showerhead and a hand shower. The valve is primarily made of brass and bronze and features two discrete positions for dedicated flow and two shared positions. Its common plane design eases piping installation and includes both male IPS and sweat connections. Like all Symmons products, this valve is backed by a lifetime limited consumer warranty and 10 year commercial warranty.
Symmons 2DIVBODYSRT Features:
3-port diverter valve
Shared functionality in two positions with defined detents
2 discreet positions and 2 shared positions
Male IPS and sweat inlet/outlet connections
Dual outlet
Constructed of brass, bronze, stainless steel, plastic, and zinc
1/2″ NPT connections
Meets ASME A112.18.1/CSA B125.1 standard for reliable performance
For use with VersaFlex common plane Temptrol valves
Symmons 2DIVBODYSRT Specifications:
Width: 3-2/5″
Height: 3-9/10″
Length: 5-1/4″
Connection Size: 1/2″
Additional Symmons Links
Browse all Symmons Products
Symmons Temptrol Collection
Specifications
| Height | 3.9 in. |
| Width | 3.4 in. |
| Length | 5.25 in. |
| Inside Diameter | 0.5 in. |
| Water Connection | 1/2" |
| Material | Brass, Bronze, Plastic, Stainless Steel, Zinc |
| Valve Type | Pressure Balanced |
| Water Connection Type | IPS, NPT |
| Number Of Ports | 3 |
| Certifications | ASME, CSA |
| Collection | Temptrol |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| Made in America | Yes |
| CSA Code | B125.1 |
| ASSE Code | A112.18.1 |
| Temperature (Max) | 180 °F |
| Temperature (Min) | 40 °F |
