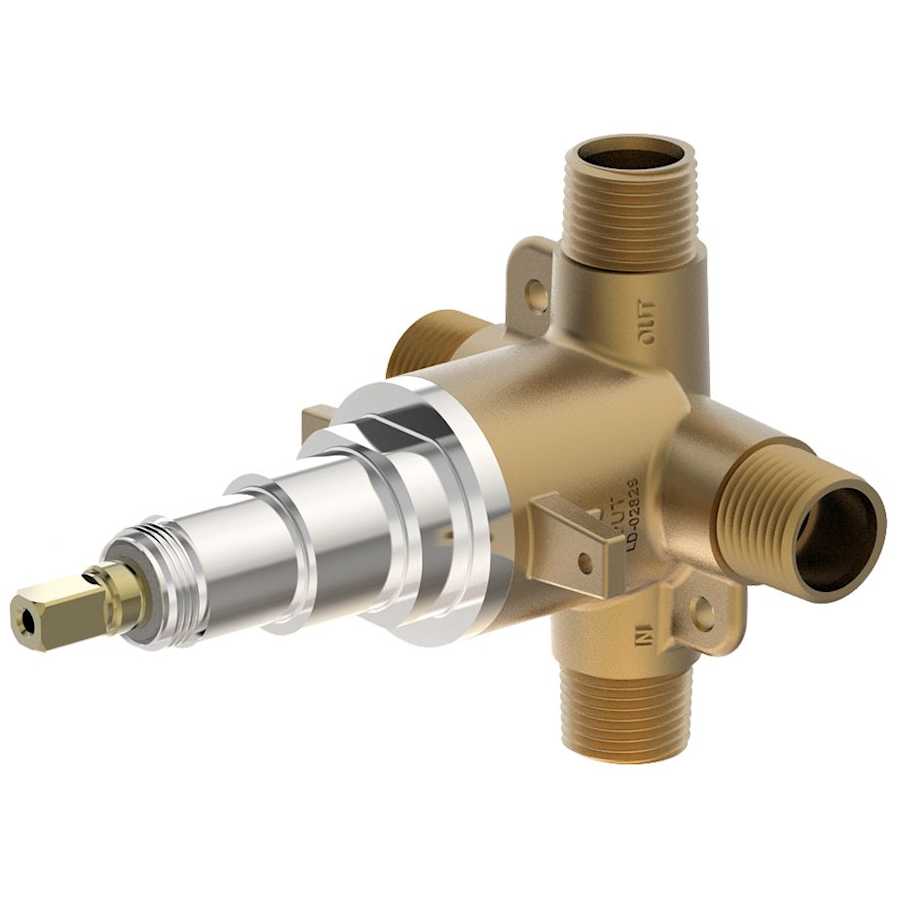

The Symmons ½ Inch Triple Outlet Diverter Valve enables flow to be diverted to, or shared with, three different shower functions, such as a showerheads and hand showers. The valve is primarily made of brass and bronze and features three discrete positions for dedicated flow and three shared positions. Its common plane design eases piping installation and includes both male IPS and sweat connections. Like all Symmons products, this valve is backed by a lifetime limited consumer warranty and 10 year commercial warranty.
Symmons 3DIVBODYSRT Features:
4-port diverter valve
Shared functionality in two positions with defined detents
3 discreet positions and 3 shared positions
Male IPS and sweat inlet/outlet connections
Triple outlet
Constructed of brass, bronze, stainless steel, plastic, and zinc
1/2″ NPT connections
Meets ASME A112.18.1/CSA B125.1 standard for reliable performance
For use with VersaFlex common plane Temptrol valves
Symmons 3DIVBODYSRT Specifications:
Width: 3-9/10″
Height: 3-9/10″
Length: 5-1/4″
Connection Size: 1/2″
Additional Symmons Links
Browse all Symmons Products
Symmons Temptrol Collection
Specifications
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | ASME, CSA |
| Collection | Temptrol |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Made in America | Yes |
| Height | 3.9 in. |
| Width | 3.9 in. |
| Length | 5.25 in. |
| Water Connection | 1/2" |
| Inside Diameter | 0.5 in. |
| Material | Brass, Bronze, Plastic, Stainless Steel, Zinc |
| Valve Type | Pressure Balanced |
| Water Connection Type | IPS, NPT |
| Number Of Ports | 4 |
| Temperature (Max) | 180 °F |
| Temperature (Min) | 40 °F |
