Features:

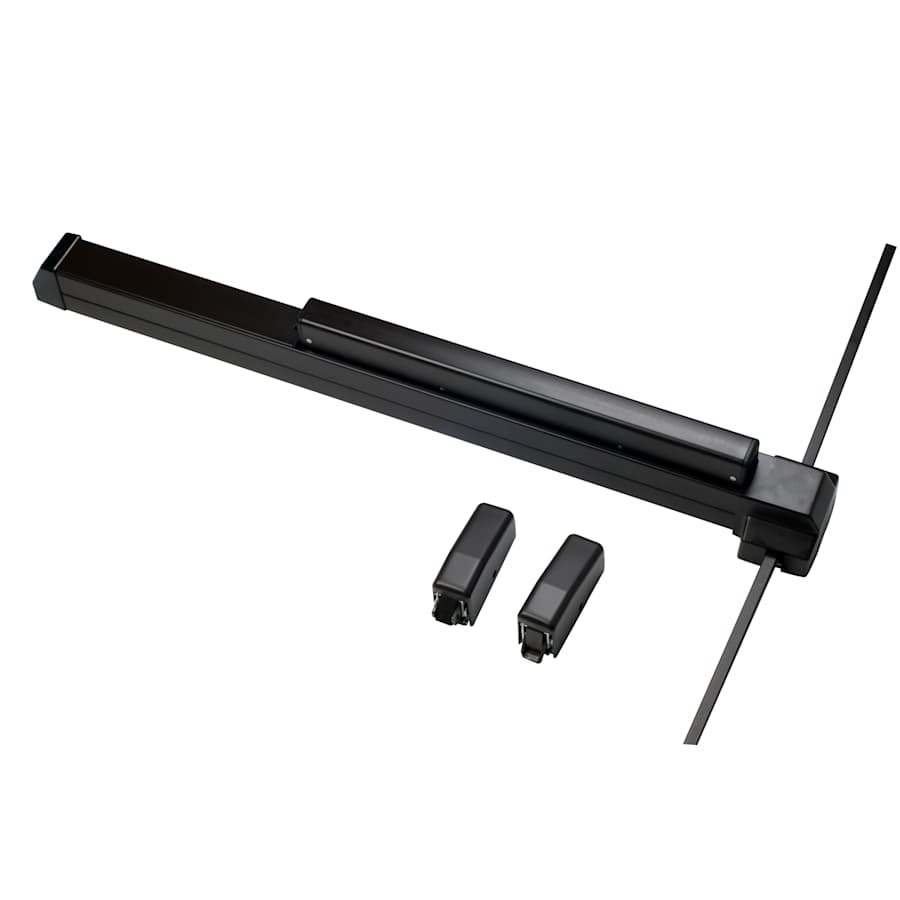

Surface Mounted Vertical Rod Device for All Single and Double Door Applications
UL Listed for Panic Exit Hardware
Covers Stock Hollow Metal Doors with 86 or 161 Cutouts
Fits Door Stiles as Narrow as 3-5/8″
Surface Vertical Rod is Non-Handed Except when using Special Dogging or Single Switch Options
Hex Key Dogging Comes Standard
The 299 Top Strike, 248L4 and 304L Bottom Strikes Ship Standard with Device
Product Specifications:
Device Length: 4′
Works on Standard Door Height of 7′
Push bar Neutral Projection: 3-3/4″
Push bar Depressed Projection: 3″
Latch Bolt: Deadlocking Anti-friction Top and Bottom Bolt, 5/8″ Throw
Top and Bottom Latch Case: 4-1/2″ x 2-1/8″
Vertical Rods: 1/2″ Square Tubing, Standard Rods Accommodate 7′ Doors
Includes: Screw Pack for 1-3/4 to 2-1/4″ Thick Metal or Wood Doors
ANSI A156.3-2001 Grade 1
Product Variations:
22EO4: 4′ Rim Exit Device
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 22 Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Collection | 22 |
| Certifications | ANSI, UL |
| ANSI Certification | A156.3 |
| BHMA Certification | Grade 1 |
| Fire Rated | No |
| Width | 4.25 in. |
| Length | 48 in. |
| Projection | 3.75 in. |
| Door Thickness | 1-3/4" |
| Max Door Width | 48 in. |
| Handshower | Left, Reversible, Right |
| Panic Proof | Yes |
| Exit Trim Function | Exit Only |
| Exit Device Type | Vertical Rod Device |
| Color | Duranodic Dark Bronze, Sprayed Aluminum |
| Color Tone | Bronze Tones, Silver Tones |
