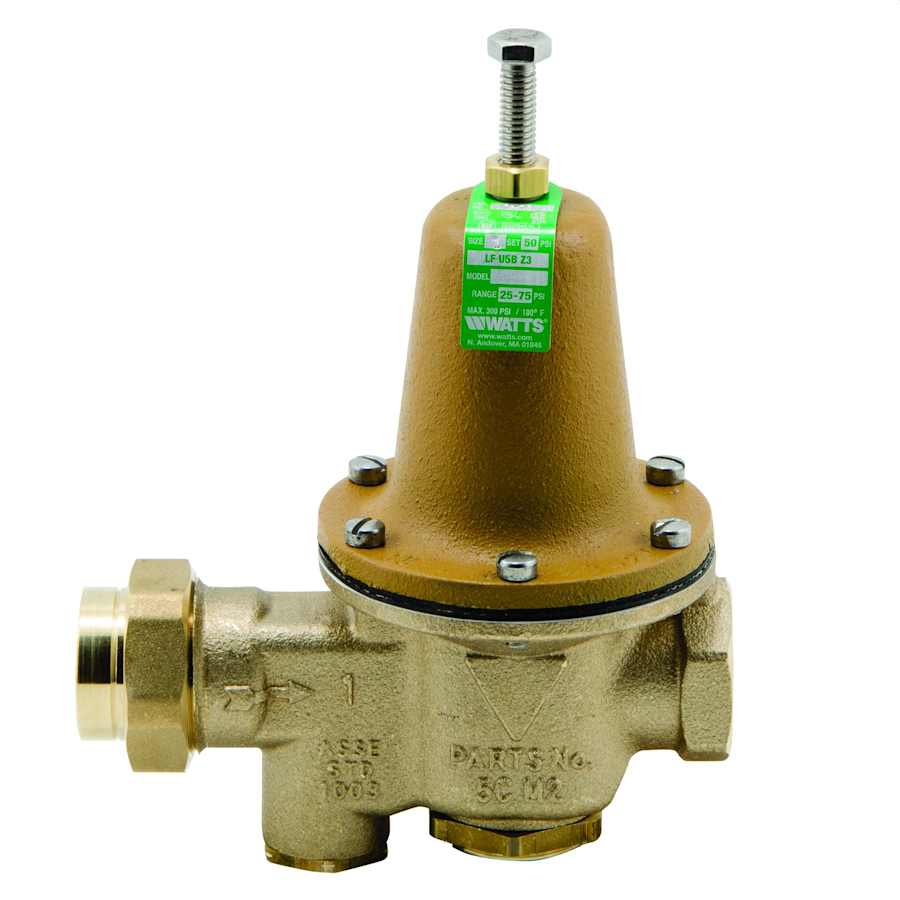

This 2″ lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).
Watts 0009204 Features:
NPT female union X NPT female
Adjustable 25-75 PSI
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Serviceable in line without special tools
NPT threaded female union inlet by NPT female outlet
Additional Watts Links
Browse all Watts Products
Specifications
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Material | Copper |
| Water Connection | 2" |
