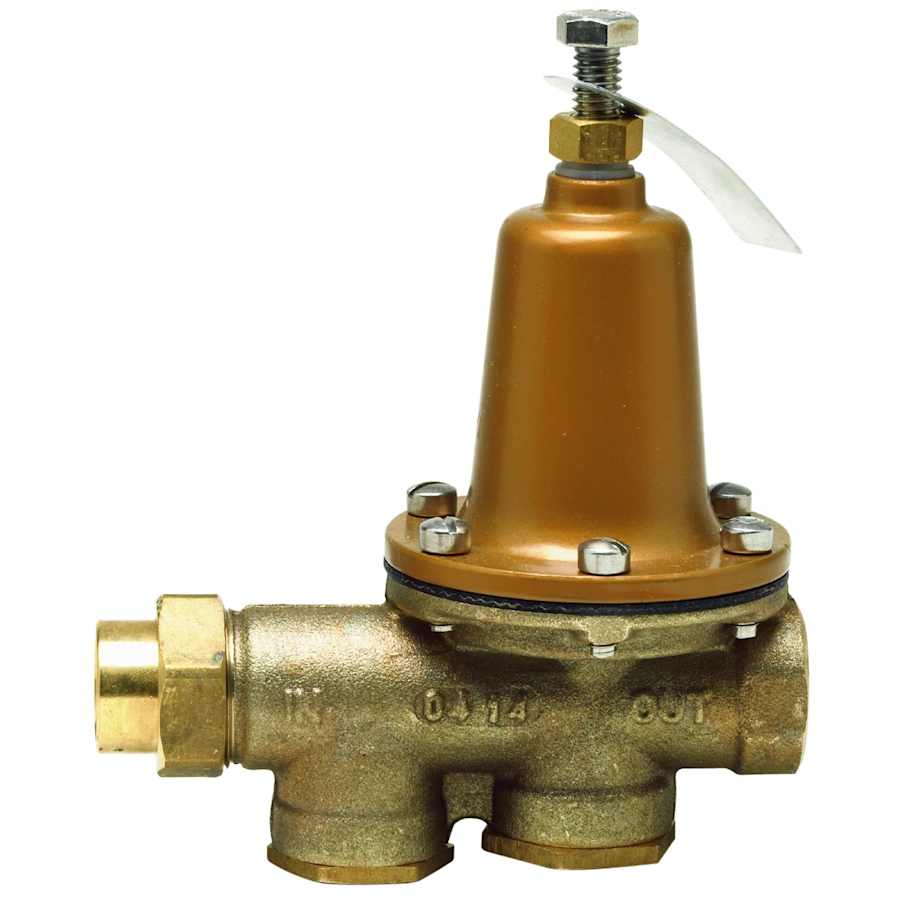

This 3/4″ lead free brass water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 PSI (69 to 241 kPa) with the standard setting at 30 PSI (207 kPa).
Watts 0009280 Features:
NPT female union X NPT female
Low range 10-35 PSI
Low pressure applications
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Replaceable seat module
Additional Watts Links
Browse all Watts Products
Specifications
| Material | Brass |
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Water Connection | 3/4" |
