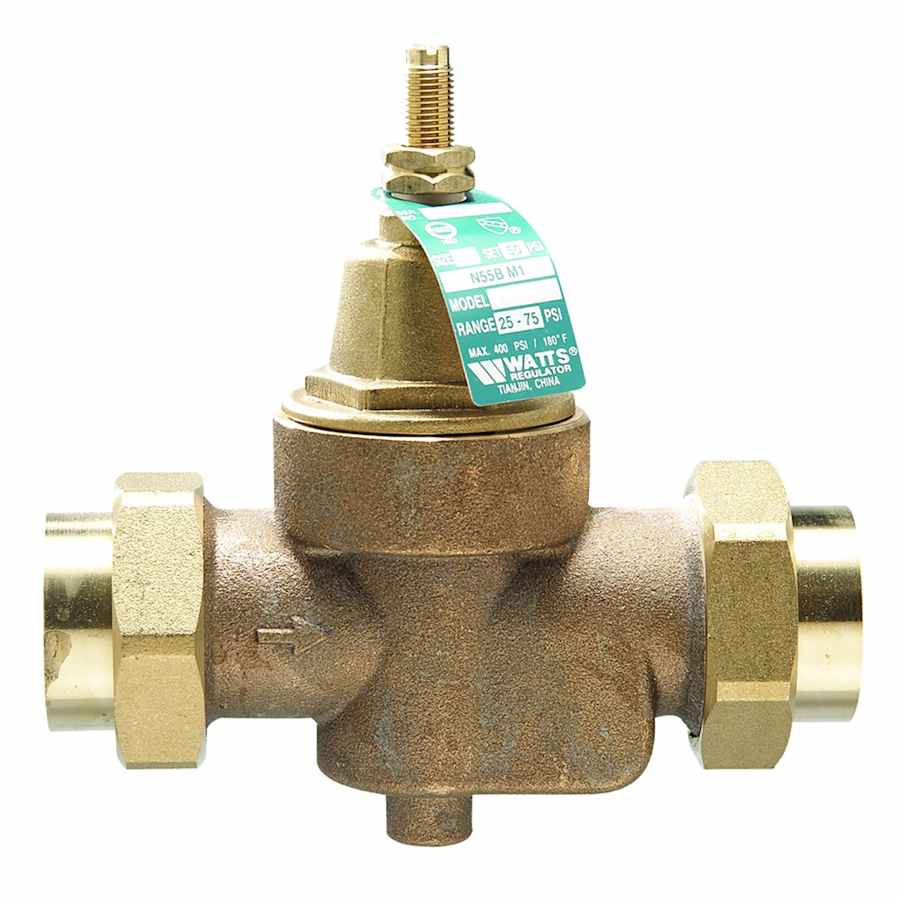

This 3/4″ water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure to protect plumbing system components and to reduce water consumption. It has a lead free brass body construction, solder union inlet by NPT female outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 PSI (27.6 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).
Watts 0009590 Features:
Adjustable 25-75 PSI and max work 400 PSI
Solder union inlet by NPT female outlet
Integral stainless steel strainer removable for cleaning
Thermoplastic seat and bronze cage
Corrosion-resistant adjusting screw and sealed cage for waterworks pit installations
Additional Watts Links
Browse all Watts Products
Specifications
| Material | Brass |
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Water Connection | 3/4" |
