White-Rodgers Silicone Carbide Integrated Furnace Control

Silicone Carbide Integrated Furnace Control

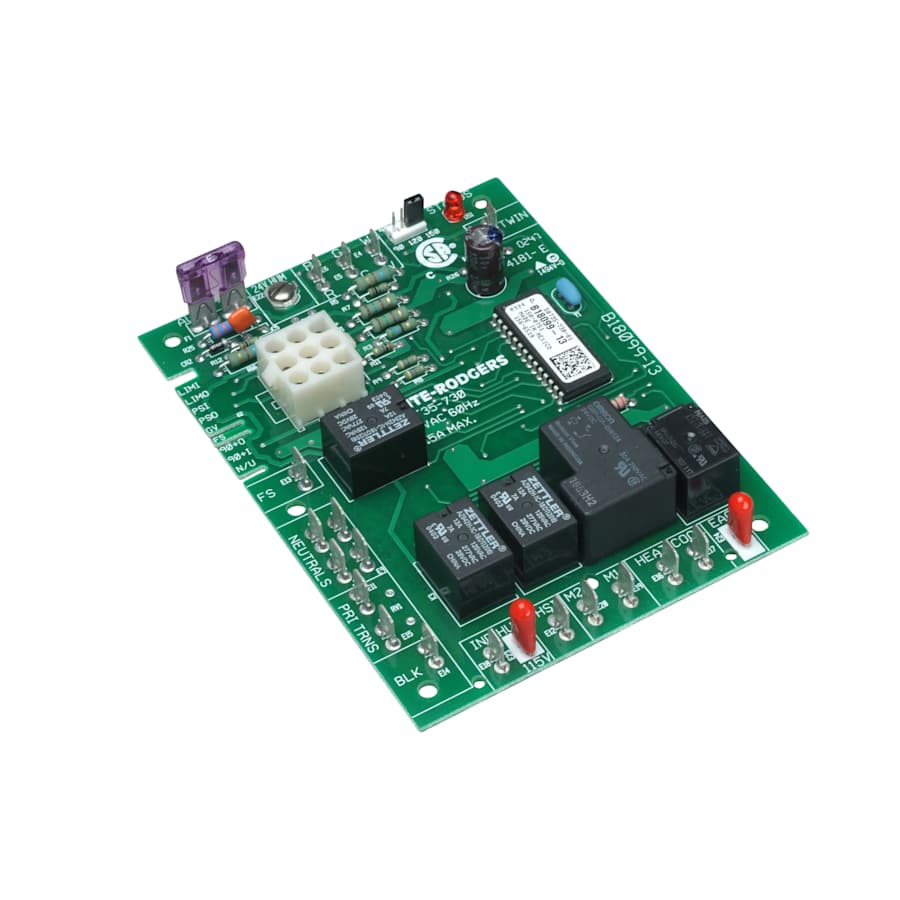

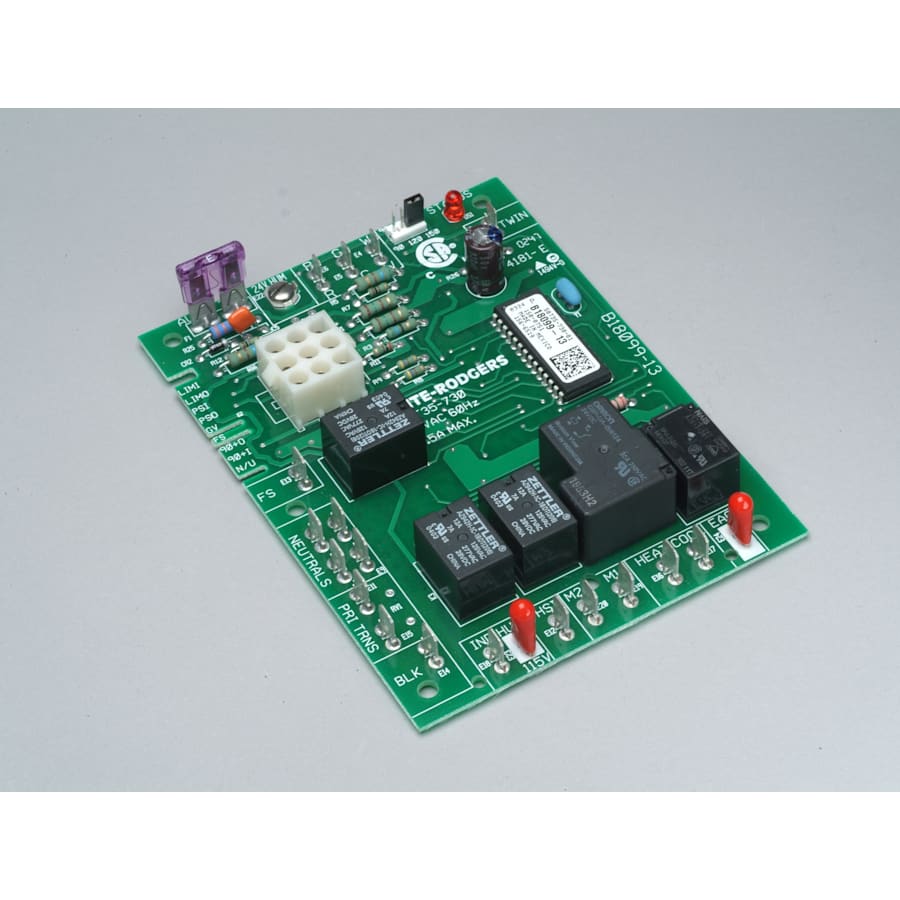

White-Rodgers furnace controls include the 50T35-743 silicone carbide integrated furnace control, featuring silicone carbide integrated furnace control.

Features:

Includes flash code diagnostics
Twinning
Includes mounting hole template
Fused to protect low voltage system transformers
Adjustable blower relay
90+ furnace option

Specifications:

Operating Temperature: -40 to 176°F
Humidity Range: 95% RH (non-condensing)
Mounting: Plastic standoffs

Electrical Ratings @ 77°F (25°C)

Input Voltage: 20-30 VAC RMS 50 / 60 Hz
Maximum Input Current @ 30 VAC: 0.35 amp

Relay Load Ratings

Valve Relay: 1.5 amp @ 30 VAC 50 / 60 Hz 0.6 pf
Igniter Relay: 5.0 amp @ 120 VAC 50 / 60 Hz
Inducer Relay: 4.0 FLA-8.0 LRA @ 120 VAC
Circulator Relay : 14.5 FLA-25.0 LRA @ 120 VAC

Flame Current Requirements

Minimum current to insure flame detection: 75 uA DC
Maximum current for non-detection: 0.10 uA DC
Maximum allowable leakage resistance: 100 M ohms

Timing Spec @ 60 Hz

Flame establishing time: N/A
Flame failure response time: 2.0 seconds maximum
