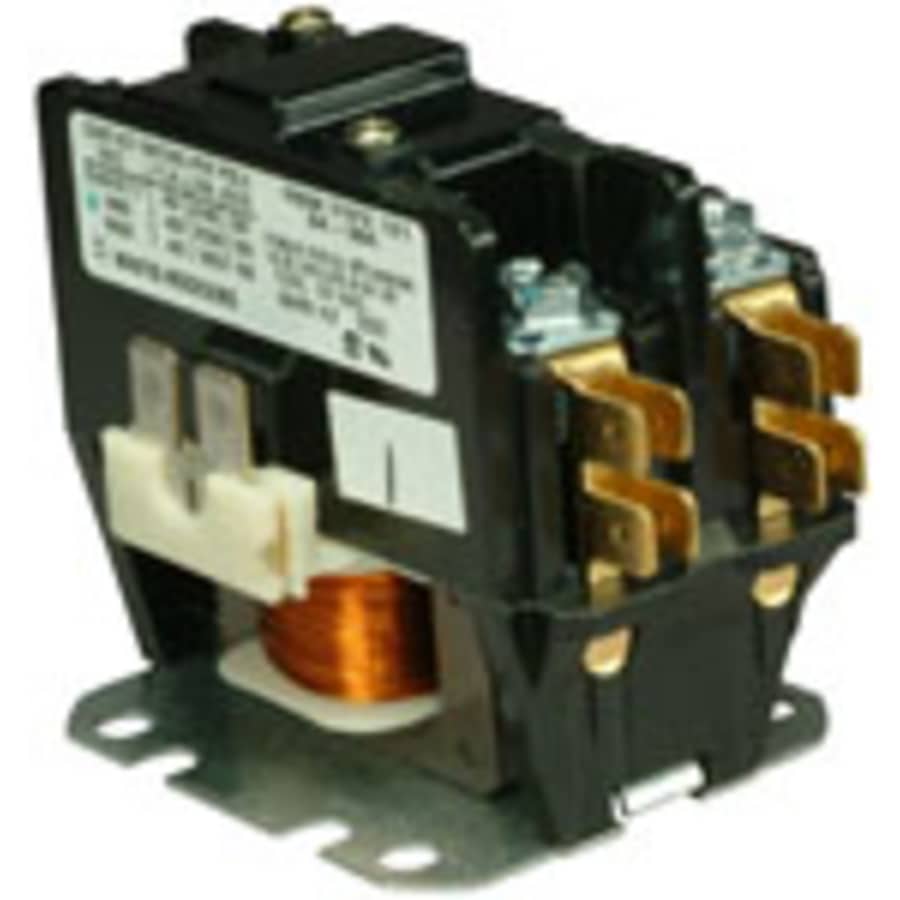

Single Pole Contractor Definite Purpose
Switches and controls from White-Rodgers include the 94-394 single pole contractor definite purpose for the professional that requires the best in residential central air conditioning control.
Features:
24 VAC, 40 Amp
Specifications:
Temperature Range: –40°F to 150°F
Mechanical Life (no load): Conforms to UL and ARI specifications
Electrical Life: Conforms to ARI specifications; achieves 100,000 cycles, make LRA at .5 pf, break 125% of FLA at .75 pf at rated voltage, 6,000 cycles make and break LRA at .5 pf rated voltage
Weight (approximate): 7 oz.
Agency: UL file number E75492, CSA file number LR49538
Coils, Frequency: 50/60 Hz
Coils, Insulation: Class B (130°C)
Termination: Screw and Double 1/4” Quick Connect
Coils, Operate: 85% of nominal coil voltage; 110% maximum safe operate
Coils, Duty Cycle: Continuous
White-Rodgers, a recognized leader in climate control solutions, celebrates 75 years of business in 2012. Experience, integrity and customer service are still the tenets that mark this great company. From the humble beginnings of two engineers collaborating to solve the control problem of the day, to being the answer for your climate control needs, White-Rodgers is the respected name among industry professionals and home owners alike.
Additional White-Rodgers Links
View the Manufacturer Warranty
Browse all White-Rodgers Products
White-Rodgers Contactors Collection
Specifications
| Height | 2.541 in. |
| Width | 2 in. |
| Length | 2.313 in. |
| Certifications | UL, CSA |
| Application | Air Conditioning |
| Voltage | 24 |
| Frequency | 50, 60 Hertz |
| Amperage | 0.208 |
| Temperature (Max) | 150 °F |
| Temperature (Min) | -40 °F |
| Switch Type | Single Pole Definite Purpose |
| Operation | Continuous Duty |
