Single Pole Normally Open / Normally Closed 24 VAC Heavy-Duty General Purpose Relay

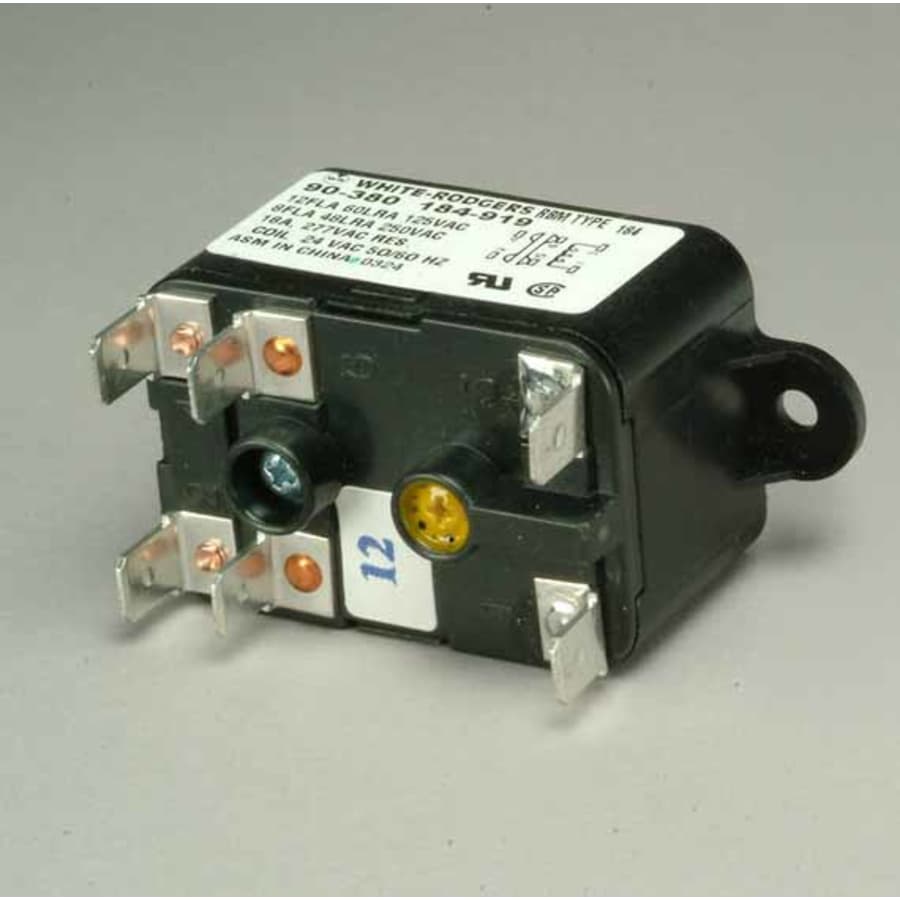

The White-Rodgers 90-380 heavy-duty general purpose relay easy to install and suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching.
Features:
WR / RBM Type 184
SPNO / SPNC
24 V
Temperature Range -40°F to 150°F
Specifications:
Temperature Range: -40°F to 150°F
Mechanical Life (no load): 1,000,000 operations, 120 operations/min.
Electrical Life (rated load): 100,000 operations, 6 operations/min. Load test making inrush rating (0.4 to 0.5 P.F.); breaking 100% continuous rating (0.65 to 0.8 P.F.)
Weight (approximate): 2.3 oz.
UL Listed, CSA Certified
Coils
Frequency: 50/60 Hz
Insulation: Class B
Termination: 1/4” Quick Connect
Operate: 85% of nominal coil voltage; 110% maximum safe operate
Duty Cycle: Continuous
White-Rodgers, a recognized leader in climate control solutions, celebrates 75 years of business in 2012. Experience, integrity and customer service are still the tenets that mark this great company. From the humble beginnings of two engineers collaborating to solve the control problem of the day, to being the answer for your climate control needs, White-Rodgers is the respected name among industry professionals and home owners alike.
Additional White-Rodgers Links
View the Manufacturer Warranty
Browse all White-Rodgers Products
White-Rodgers Relays Collection
Specifications
| Height | 1.5 in. |
| Length | 2.67 in. |
| Width | 1.265 in. |
| Certifications | UL, CSA |
| Application | Fan Control |
| Voltage | 24 |
| Frequency | 50, 60 Hertz |
| Temperature (Max) | 150 °F |
| Temperature (Min) | -40 °F |
| Switch Type | Single Pole Normally Closed, Single Pole Normally Open |
