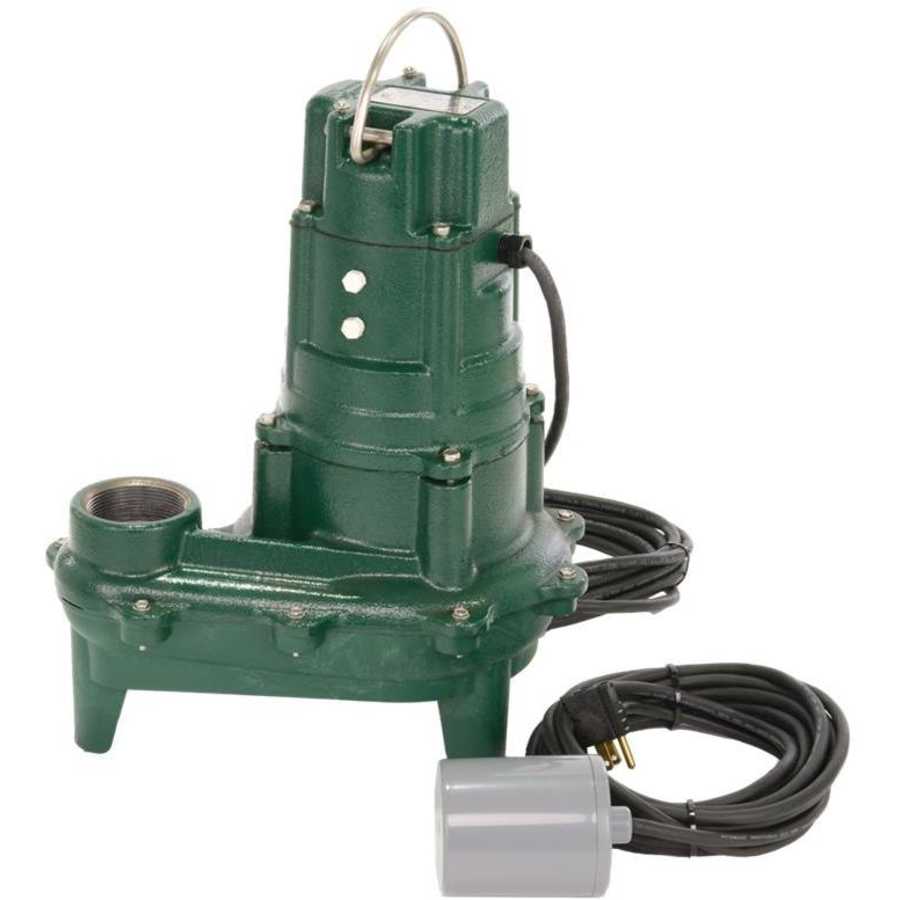

Zoeller 270-0005 Features:
Pump housing constructed of cast iron
Engineered plastic base
Hermetically sealed to be watertight and completely submersible
For use in residential or light commercial applications
Mounting hardware included
Zoeller 270-0005 Specifications:
Length: 13-1/16″ (left to right)
Height: 14-15/16″ (bottom to top)
Flow Rate: 132 gallons per minute
Motor: 1 hp (horsepower)
Voltage: 115 or 230
Phase: Single Phase
Amps: 7.5 – 15
RPM: 3450
Additional Zoeller Links
View the Manufacturer Warranty
Specifications
Dimensions and Measurements
| Height | 14.9375 in. |
| Width | 13.0625 in. |
| Flow Rate (GPM) | 132 |
| Water Connection | 2" |
| Cord Length | 20 in. |
| Maximum Head Height | 29 in. |
| Discharge Diameter | 2 in. |
Warranty and Product Information
| Collection | Model 270 |
| Certifications | UL |
| Manufacturer Warranty | 1 Years |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Made in America | Yes |
| CARB approved | No |
Electrical and Operational Information
| Voltage | 115, 230 |
| Amperage | 15 |
| Frequency | 60 Hertz |
| Horsepower | 1 |
| Maximum Fluid Temperature | 130 °F |
| Electrical Phases | 1 |
| Motor RPM | 3450 |
| RPM | 3450 |
Characteristics and Features
| Material | Cast Iron |
| Water Connection Type | NPT |
| Submersible | Yes |
| Impeller Material | Plastic |
| Housing Material | Cast Iron |
| Material Housing | Iron |
| Material Shaft | Steel |
