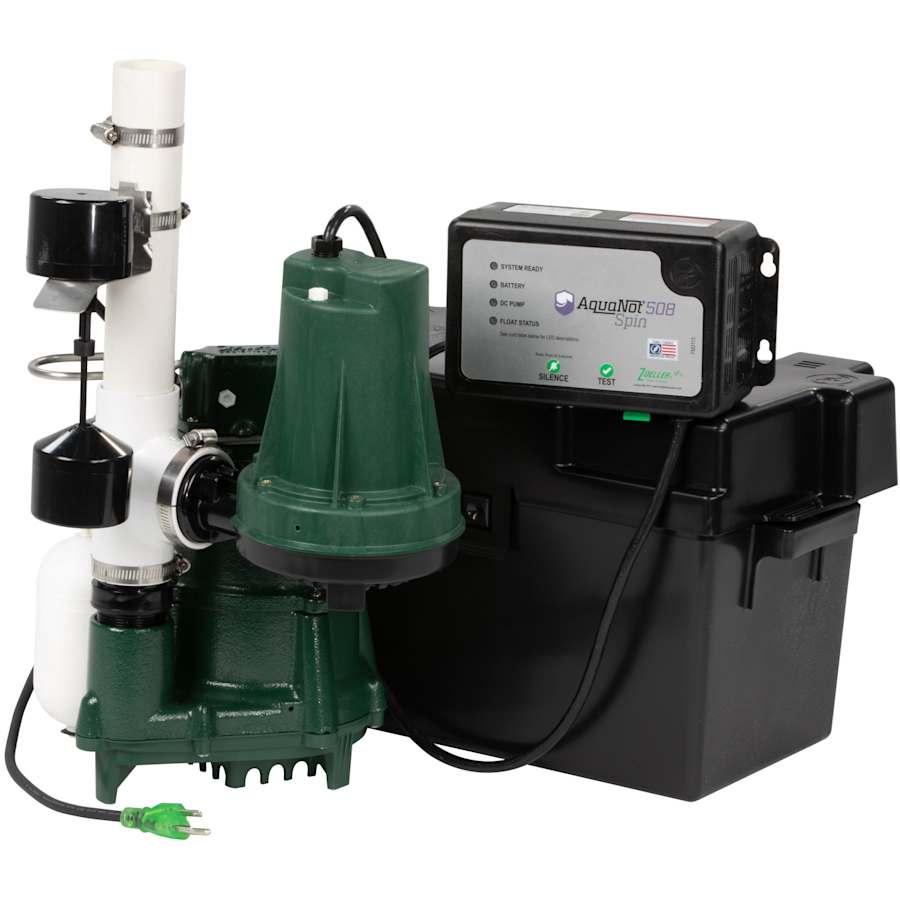

Zoeller 508-0007 Features:
12 Volt DC backup system with pump, check valve, float switch and pipingÂ
115V, 1/2 – 1/3 HP, dielectric oil filled phase motor
Covered under Zoeller’s 3 Year Warranty
Control box with 10 amp battery recharging system and overcharge protection
LED light indicated battery power and when float is activated
Built in alarms for high water, reverse polarity, and low battery
Vertical float switch has a solid and buoyant polypropylene design
Battery case constructed of non-corrodible polyethylene
Maximum battery dimensions of 13″ L x 7-1/2″ W x 9-1/2″ H
Zoeller 508-0007 Specifications:
Flow Rate (gallons per minute)Â @ 5 feet: 39
Flow Rate (gallons per minute)Â @ 10 feet: 30
Flow Rate (gallons per minute)Â @ 15 feet: 20
Flow Rate (gallons per minute) @ 20 feet: 6
Flow Rate (gallons per minute) @ 22 feet: Off
1/3 – 1/2 HP
Submersible: Yes
Switch Type: Automatic
Voltage: 115V
Additional Zoeller Links
View the Manufacturer Warranty
Zoeller Aquanot Collection
Specifications
| Manufacturer Warranty | 3 Years |
| Collection | Model 508 |
| Country Of Origin | USA |
| Made in America | Yes |
| Voltage | 115 |
| Amperage | 9.7 |
| Horsepower | 0.5 |
| Configuration | Primary Sump Pump |
| Switch Type | Automatic |
| Submersible | Yes |
| Water Connection | 1-1/2" |
| Flow Rate by Feet of Head | 39 gal / 5 ft, 20 gal / 15 ft, 6 gal / 20 ft, 30 gal / 10 ft, 0 gal / 0 ft |
