1-1/2 HP 230V High Head Automatic Submersible Sewage Pump
Zoeller 294-0003 Features:
Bronze non-clogging vortex impeller design
Durable cast construction
Cast iron switch case, base, motor, and pump housing
No sheet metal parts to rust and corrode
Stainless steel screws, bolts, float rod, handle, guard, arm, and seal assembly
240″ UL listed 3-wire neoprene cord and plug
Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
Stainless steel carbon and ceramic rotary shaft seal
Corrosion resistant powder coated epoxy finish
Upper and lower ball bearings running in oil bath
Passes 2″ spherical solids
Zoeller 294-0003 Specifications:
Height: 19.3125″
Length: 10.5
Width: 12.875″
Category: Sewage Pumps
Connection Size: 2″ NPT
Flow Rate: 196 gpm
1-1/2 HP motor

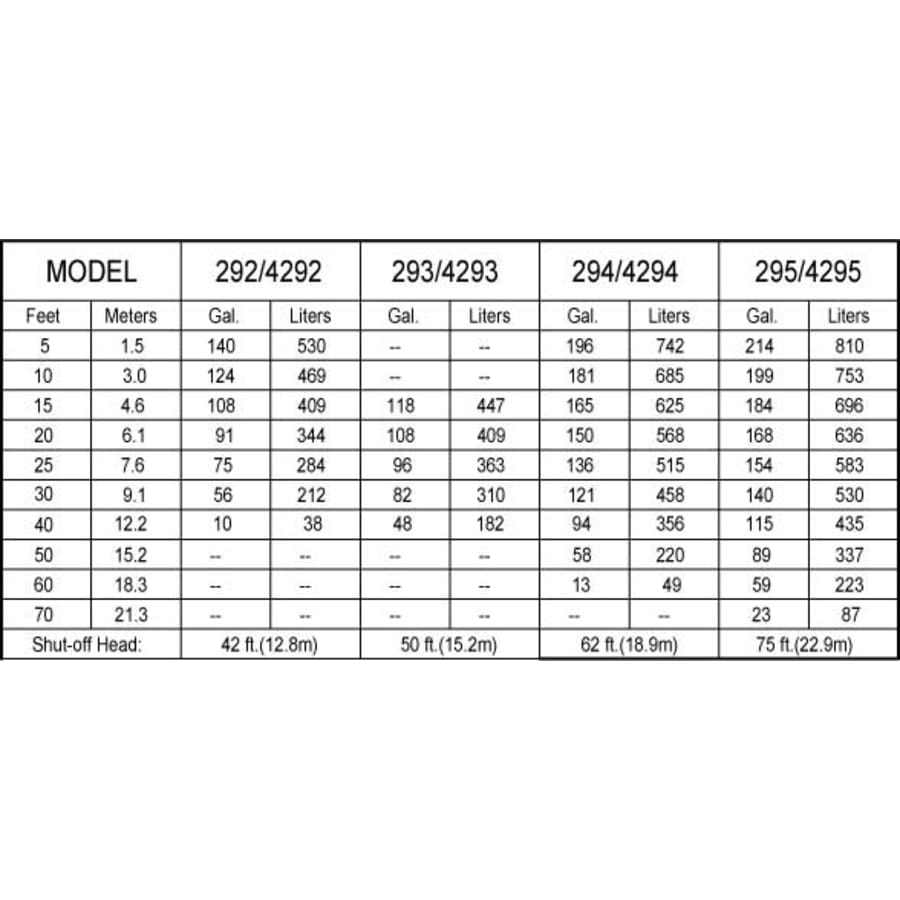

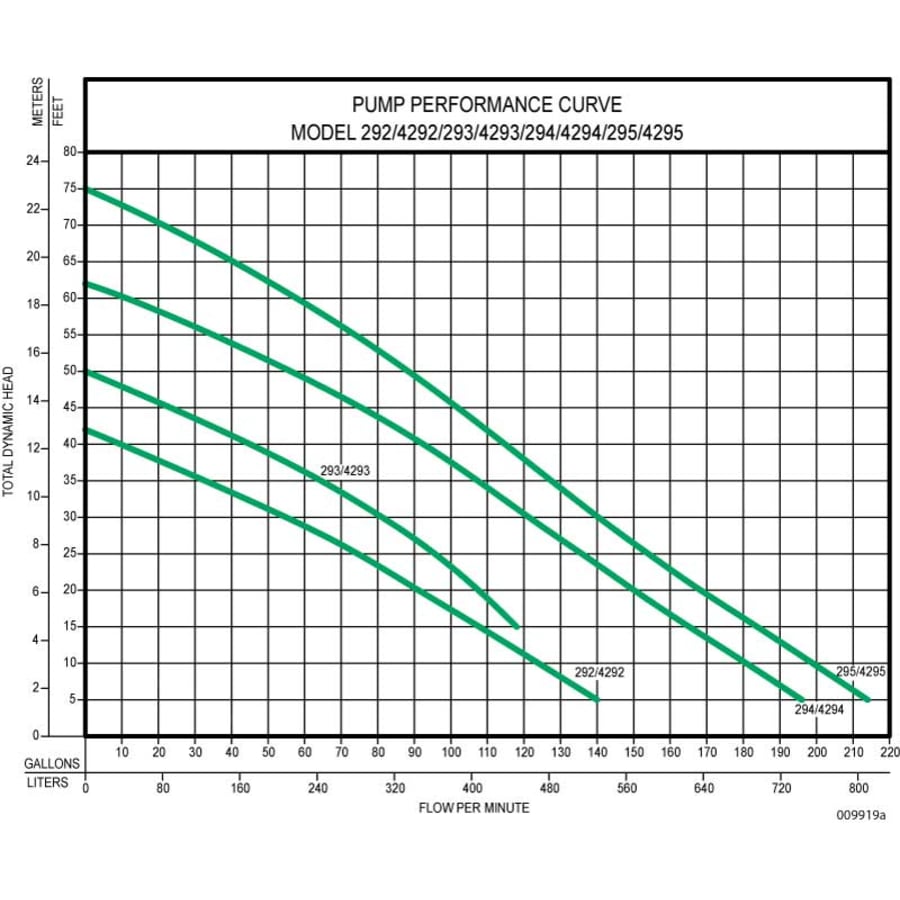

Maximum Head Height: 62′
Voltage: 230V
Weight: 88 lbs.
Additional Zoeller Links
View the Manufacturer Warranty
Specifications
| Height | 19.313 in. |
| Width | 12.87 in. |
| Product Weight | 88 lbs. |
| Length | 10.5 in. |
| Flow Rate (GPM) | 196 |
| Water Connection | 2" |
| Maximum Head Height | 62 in. |
| Certifications | UL |
| Water Connection Type | NPT |
| Impeller Material | Cast Iron |
| Material Casing | Iron |
| Material Housing | Iron |
| Voltage | 230 |
| Electrical Phases | 1 |
| Horsepower | 1.5 |
| Maximum Fluid Temperature | 130 °F |
| Motor RPM | 3450 |
