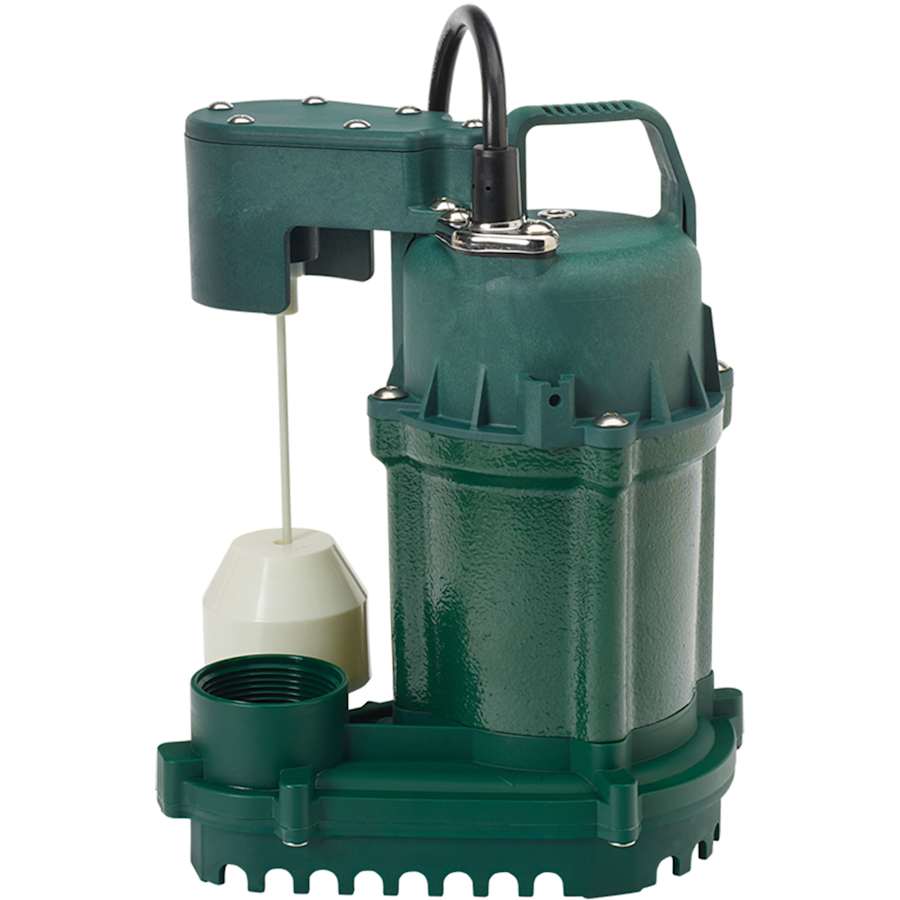

Zoeller 73-0001 Features:
Oil-filled, hermetically-sealed motor with automatic reset thermal overload protection
Rugged, cast iron motor housing with corrosion-resistant, baked-on enamel finish
Efficient heat sink for heat dissipation
Engineered plastic base and pump housing with no screen
Reliable integrated vertical switch
Carbon and ceramic rotary seal
Watertight, NBR rubber seal between motor and cover
Stainless steel screws and hardware
Fits 12″ diameter pits
100% factory tested after assembly
Passes 3/8” spherical solids
On point: 6-1/2”
Zoeller 73-0001 Specifications:
Height: 11″
Width: 8-3/32″
Motor: 1/3 HP
Voltage: 115
Hertz: 60
RPM: 3400
Discharge Size: 1-1/2″ NPT
Max Flow Rate: 38 gallons per minute
Max Operating Temperature: 104
Additional Zoeller Links
View the Manufacturer Warranty
Zoeller Aqua-Mate Collection
Specifications
| Length | 7.28 in. |
| Product Weight | 12.4 lbs. |
| Width | 8.094 in. |
| Height | 11 in. |
| Cord Length | 9 in. |
| Water Connection | 1-1/2" |
| Maximum Flow Rate | 38 GPM |
| Discharge Diameter | 1.5 in. |
| Maximum Head Height | 18 in. |
| Material | Cast Iron |
| Impeller Material | Plastic |
| Material Shaft | Stainless Steel |
| Approved for Commercial Use | Yes |
| Collection | Model 73 |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 2 years |
| Made in America | No |
| Voltage | 115 |
| Amperage | 5.5 |
| Horsepower | 0.33 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Operating Temperature (Max) | 104 °F |
| Maximum Fluid Temperature | 104 °F |
| Motor RPM | 3400 |
