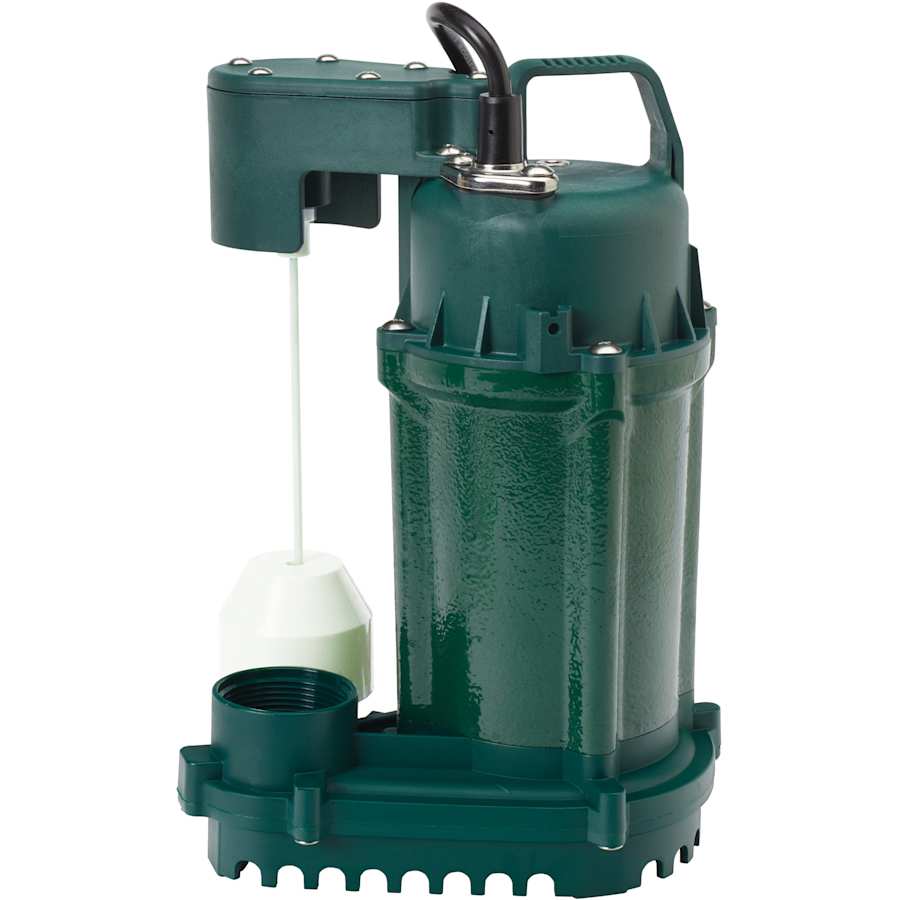

Zoeller 75-0001 Features:
Oil-filled, hermetically-sealed motor with automatic reset thermal overload protection
Rugged, cast iron motor housing with corrosion-resistant, baked-on enamel finish
Efficient heat sink for heat dissipation
Engineered plastic base and pump housing with no screen
Reliable integrated vertical switch
Carbon and ceramic rotary seal
Watertight, NBR rubber seal between motor and cover
Stainless steel screws and hardware
100% factory tested after assembly
Passes 3/8” spherical solids
On point: 8-1/3”
Zoeller 75-0001 Specifications:
Height: 12-3/8″
Width: 8-3/32″
Motor: 1/2 HP
Voltage: 115
Hertz: 60
RPM: 3400
Discharge Size: 1-1/2″ NPT
Max Flow Rate: 50 gallons per minute
Max Operating Temperature: 104
Additional Zoeller Links
View the Manufacturer Warranty
Zoeller Aqua-Mate Collection
Specifications
| Height | 12.375 in. |
| Product Weight | 16.5 lbs. |
| Width | 8.094 in. |
| Length | 7.28 in. |
| Water Connection | 1-1/2" |
| Cord Length | 10 in. |
| Discharge Diameter | 1.5 in. |
| Maximum Head Height | 25 in. |
| Maximum Flow Rate | 50 GPM |
| Material | Cast Iron |
| Material Shaft | Stainless Steel |
| Impeller Material | Plastic |
| Voltage | 115 |
| Amperage | 5.6 |
| Frequency | 60 Hertz |
| Horsepower | 0.5 |
| Maximum Fluid Temperature | 104 °F |
| Electrical Phases | 1 |
| Motor RPM | 3400 |
| Operating Temperature (Max) | 104 °F |
| Collection | Model 75 |
| Country Of Origin | Taiwan |
| Made in America | No |
| Manufacturer Warranty | 2 years |
| Approved for Commercial Use | Yes |
