Zoeller 95-0001 Features:
Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
Corrosion-resistant, powder coated epoxy finish
Durable, cast iron construction
Cast iron switch case, motor, pump housing and base
Viton outer switch boot
No sheet metal parts to rust or corrode
All castings are cast iron class 25-30 25000# tensile strength
Stainless steel screws, guard, handle, arm and seal assembly
Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
Bearings – upper and lower oil-fed cast iron
Carbon and ceramic shaft seal
Entire unit pressure-tested after assembly
Watertight, neoprene square ring between motor and pump housing
Passes 1/2” spherical solids
No screens to clog
On point: 9-1/2”

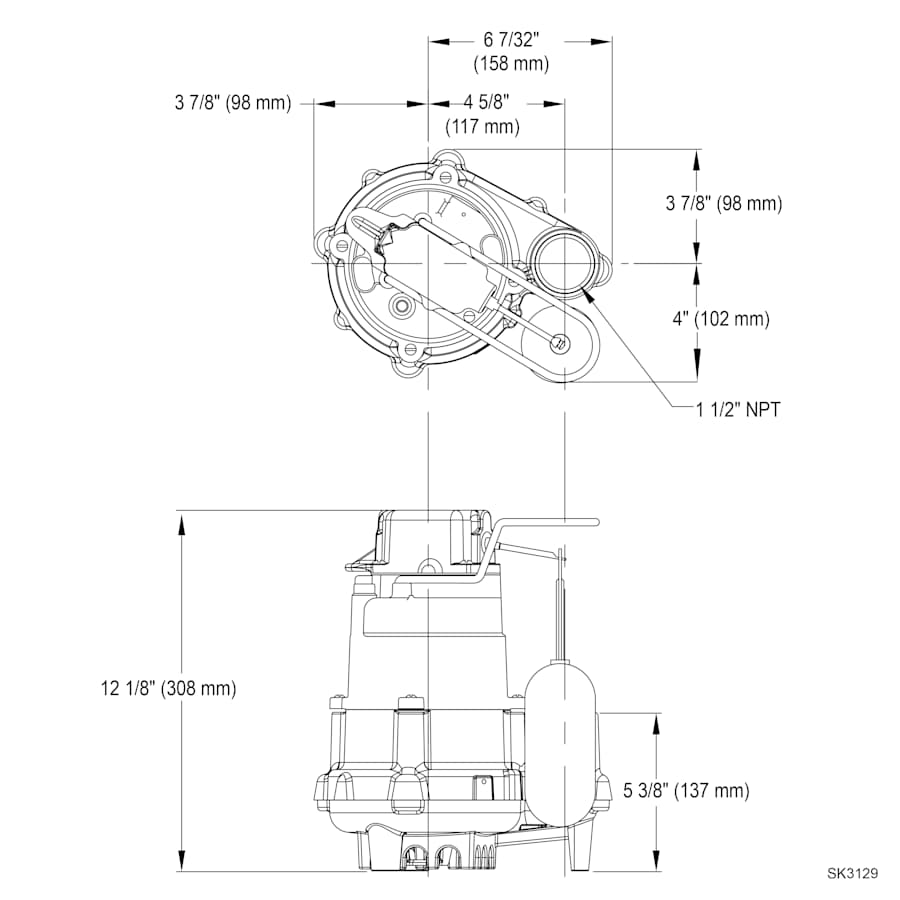

Zoeller 95-0001 Specifications:
Height: 12-1/8″
Width: 10-3/32″
Motor: 1/2 HP
Voltage: 115
Hertz: 60
RPM: 1725
Discharge Size: 1-1/2″ NPT
Max Flow Rate: 80 gallons per minute
Max Operating Temperature: 130
Additional Zoeller Links
View the Manufacturer Warranty
Zoeller Premium Series Collection
Specifications
| Height | 12.125 in. |
| Width | 10.094 in. |
| Length | 7.875 in. |
| Product Weight | 38 lbs. |
| Water Connection | 1-1/2" |
| Cord Length | 15 in. |
| Maximum Flow Rate | 80 GPM |
| Maximum Head Height | 26 in. |
| Discharge Diameter | 1.5 in. |
| Collection | Model 95 |
| Country Of Origin | USA |
| Manufacturer Warranty | 5 Years |
| Approved for Commercial Use | Yes |
| Made in America | Yes |
| Material | Cast Iron |
| Impeller Material | Plastic |
| Material Shaft | Steel |
| Submersible | Yes |
| Voltage | 115 |
| Amperage | 10.5 |
| Frequency | 60 Hertz |
| Horsepower | 0.5 |
| Electrical Phases | 1 |
| Operating Temperature (Max) | 130 °F |
| Maximum Fluid Temperature | 130 °F |
| Motor RPM | 1725 |
