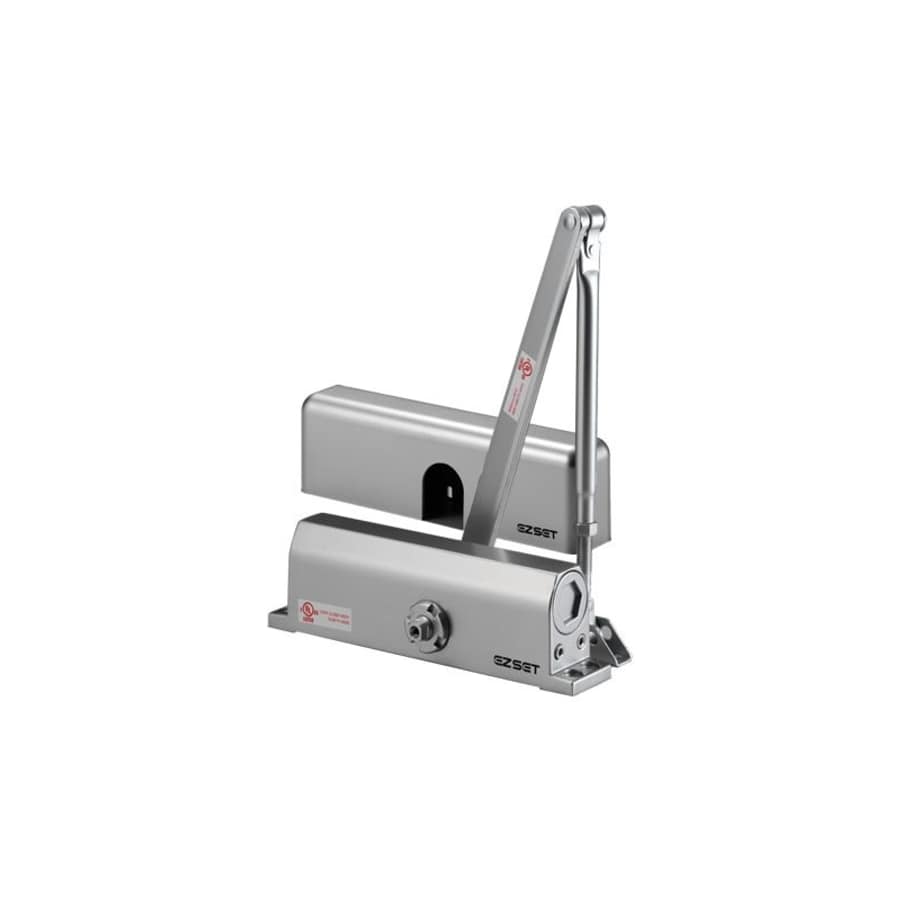

4400 Series Light – Medium Duty Commercial Door Closer
Delaney commercial door closers bring you both safety and function in a single package. With several options to choose from, and a line of accessories to customize your equipment, Delaney makes it simple to obtain the perfect hardware for any job. Whether dealing with heavy traffic or light, these surface-mounted door closers are sure to impress.
Delaney’s 4400 / 5000 Series light – medium duty commercial door closers are the perfect choice for areas with light to medium traffic. Available in both Aluminum and Duro Bronze finishes.
Features:
ANSI 156.4 Grade 1
UL Listed 3 Hour Fire Rating
ADA Compliant
Fully Adjustable Power Size (Factory Preset Size 3)
Heavy Duty Rack and Pinion with Heat Treated High Tension Piston
High Lubricity Hydraulic Fluid to Ensure Smooth Operation
Independent Latch, Sweep and Backcheck Intensity Valve
Standard Arm and Parallel Bracket Included
Standard Arm Installation Allows Door to Swing 180 Degrees
Additional Delaney Links
Browse all Delaney Products
Delaney 4400 Collection
Specifications
| Height | 1.8125 in. |
| Product Weight | 5.5 lbs. |
| Projection | 2.8125 in. |
| Max Door Weight | 187 lbs. |
| Max Door Width | 42 in. |
| Closer Body Length | 9.75 in. |
| Closer Size | 1-4 |
| Horizontal Mounting Holes | 9.0625 in. |
| Max Door Opening | 180 Degrees |
| Vertical Mounting Holes | 0.75 in. |
| Material | Cast Iron |
| Handshower | Right, Reversible, Left |
| Arm Type | Hold Open |
| Hold Open | Optional |
| Barrier Free | No |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Delay Action | No |
| Mounting | Regular, Tri-Pack, Top Jamb, Parallel |
| Operation Mode | Hydraulic |
| Shell Material | Cast Iron |
| ADA | Yes |
| Certifications | ANSI, UL10C, UL |
| Collection | 4400 |
| Manufacturer Warranty | 10 Year |
| Approved for Commercial Use | Yes |
| Series | 4400 |
| ANSI Certification | A156.4 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Usage Level | Standard Duty |
| Cushion Stop | No |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
| Color Tone | Neutrals |
