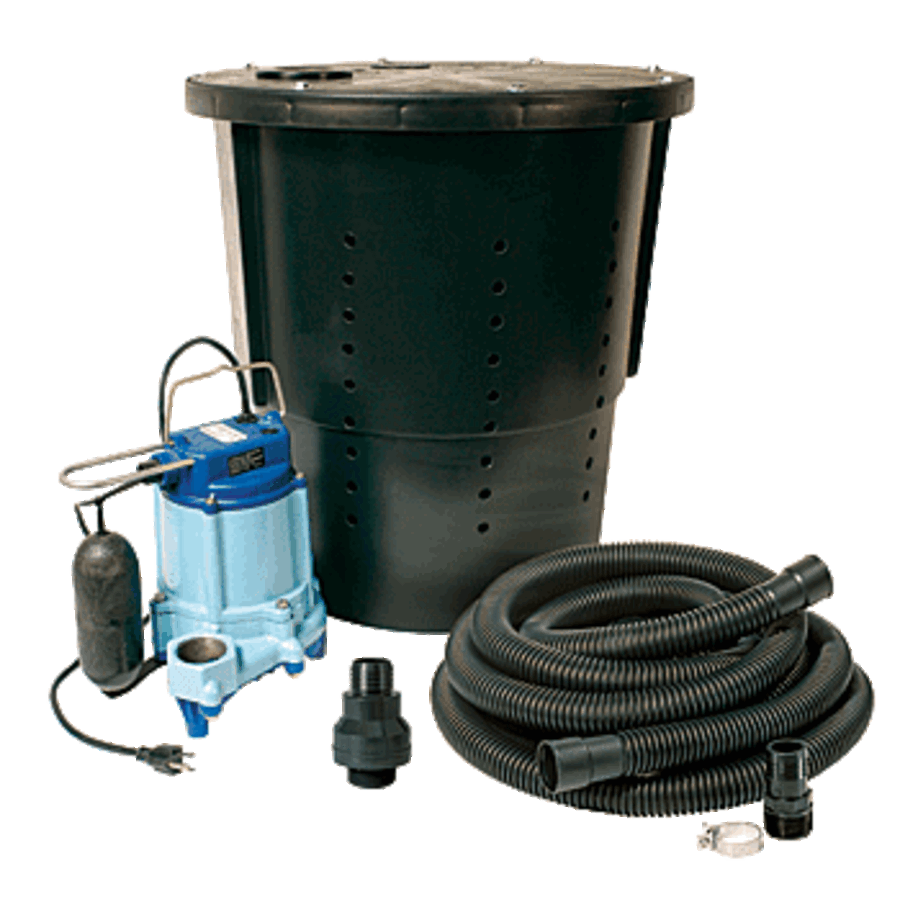

An ideal solution to help prevent water and moisture from collecting in the low areas of your crawl space. Removing this moisture aids in prevention of molds and fungus which causes allergies and odors, as well as the damage moisture can cause to hardwood floors, insulation, and metal ductwork. Also helps minimize structural damage from freezing water which can cause foundations to buckle. The CS-SS can also be used in low lying problem areas such as yard, patio, driveway and other areas around your home.
Product Features:
1/3 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 1/2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Vortex
Impeller made from: Nylon
Switch Type: Snap action
Single phase operation
25′ Cord included
UL/CSA listed
Product Specifications:
1/3 Horse Power
Voltage: 115V
10 Amp maximum operation
1-1/2″ Discharge diameter
Width: 18″
Height: 22″
Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 3000
At 10 feet of head: 2500
At 15 feet of head: 1600
Shut Off (maximum head height): 20′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 22 in. |
| Width | 18 in. |
| Product Weight | 27 lbs. |
| Water Connection | 1-1/2" |
| Discharge Diameter | 1.5 in. |
| Cord Length | 300 in. |
| Flow Rate by Feet of Head | 50 gal / 5 ft, 10 gal / 10 ft, 27 gal / 15 ft |
| Maximum Diameter Solids | .5 in. |
| Maximum Head Height | 20 in. |
| Minimum Head Height | 5 in. |
| Shut Off Height | 20 in. |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Configuration | Sump Pump |
| Switch Type | Snap Action |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron |
| Material Housing | Iron |
| Shutoff Head in Feet | 20 |
| Submersible | Yes |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Wattage | 750 |
| Amperage | 10 |
| Electrical Phases | 1 |
| Horsepower | .33, .34 |
| Maximum Fluid Temperature | 140 °F |
