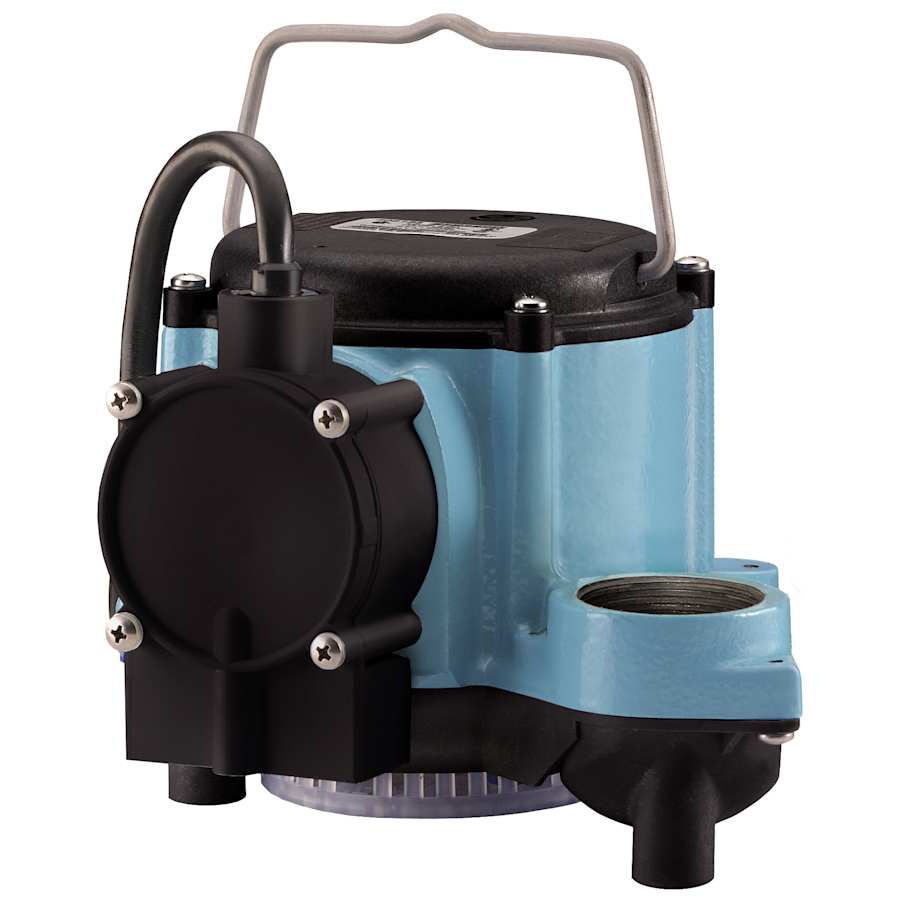

Big John 1/3 HP 46 GPM Submersible Sump Pump with Integral Diaphragm Switch and Leg Kit
For residential and light commercial use, the Model 6-CIA sump pumps provide efficient and reliable service. For extended or continuous use in moving large volumes of water, these pumps feature a 1-1/2″ discharge with a maximum lift of 18′, a polycarbonate cover and a polypropylene volute/base.
PVC leg kit to lift the pump off the bottom of the basin to help keep the intake screen free of debris
1/3 HP shaded pole motor with overload protection
Designed for continuous duty
Epoxy coated cast iron housing
1-1/4″ (31.7 mm) adapter and 3/4″ (19 mm) garden hose adapter available
Carbon/ceramic shaft seal
Upper and lower sintered sleeve bearings
Multiple switch options for automatic operation
Multiple power cord lengths available
UL / CSA listed
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 6 in. |
| Width | 8.5 in. |
| Product Weight | 18 lbs. |
| Length | 9.5 in. |
| Depth | 9.5 in. |
| Water Connection | 1-1/2" |
| Cord Length | 10 in. |
| Discharge Diameter | 1.5 in. |

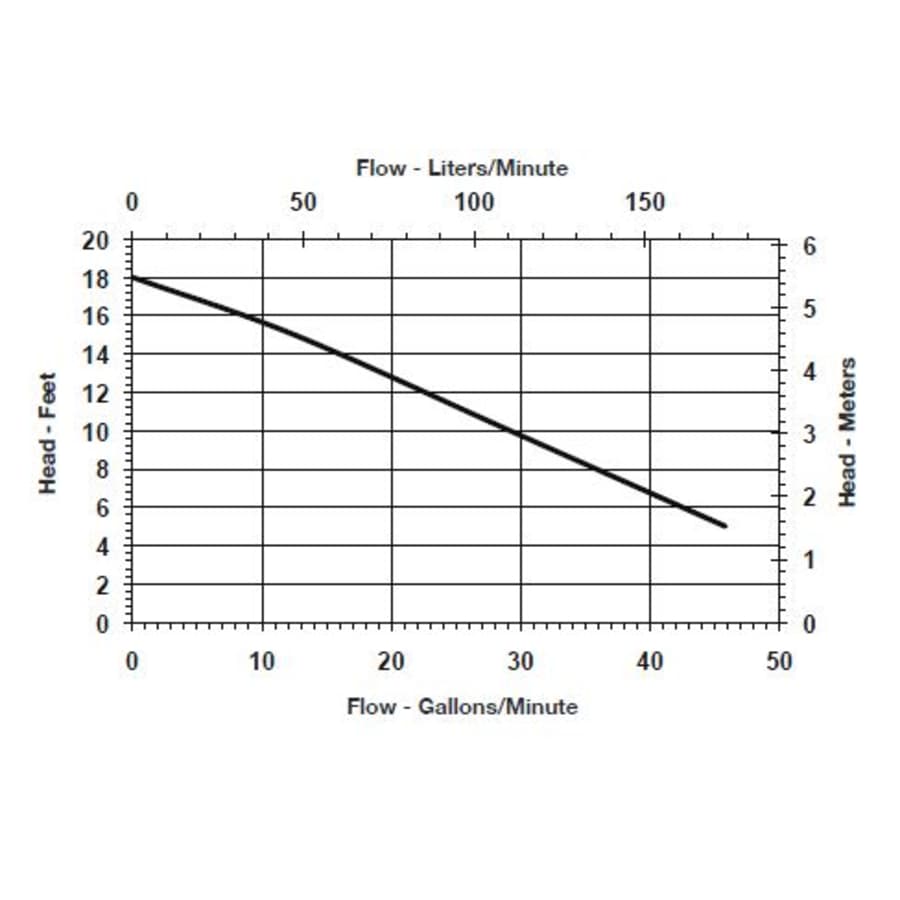

| Flow Rate by Feet of Head | 29 gal / 10 ft, 46 gal / 5 ft, 12.5 gal / 15 ft |
| Shut Off Height | 18 in. |
| Shut Off Pressure | 7.8 |
| Maximum Head Height | 18 in. |
| Minimum Head Height | 5 in. |
| Water Pressure (Max) | 7.8 PSI |
| Material | Cast Iron |
| Switch Type | Diaphragm |
| Configuration | Submersible Pump |
| Water Connection Type | NPT |
| Submersible | Yes |
| Shutoff Head in Feet | 18 |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron, Polycarbonate |
| Material Housing | Iron |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Wattage | 720 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 9 |
| Horsepower | 0.33, 0.34 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
| Color | Steel |
| Color Tone | Steel Tones |
