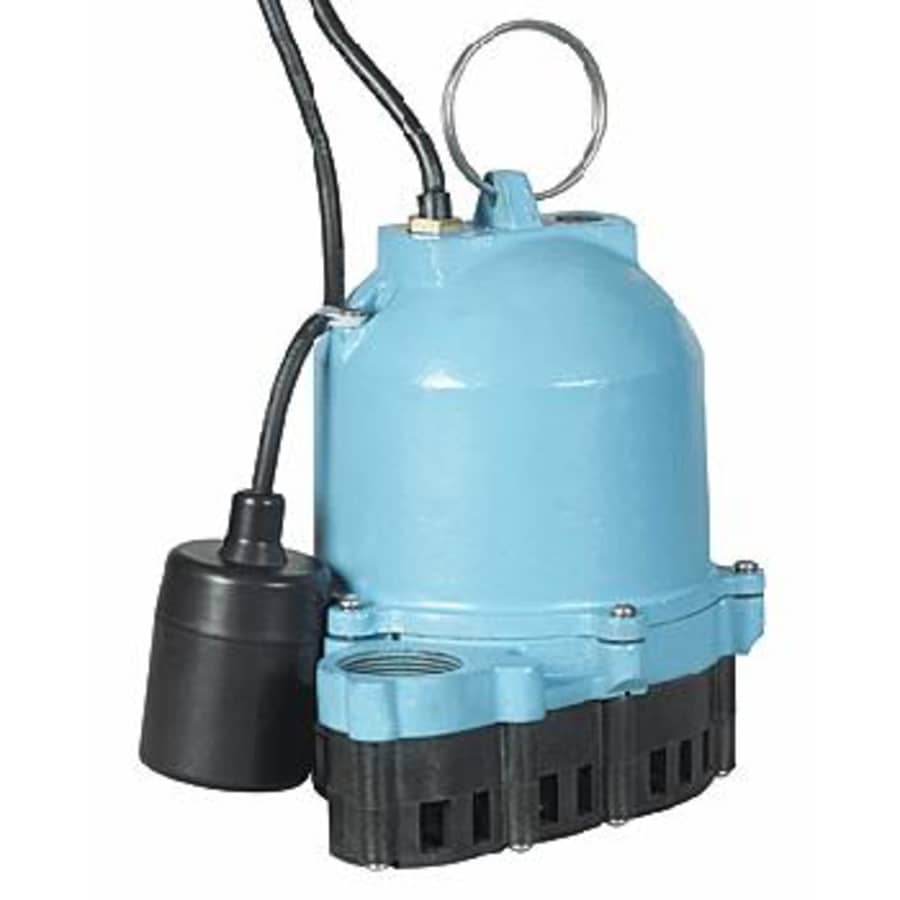

1/3 HP 52 GPM Submersible Sump/Effluent Energy Saving Pump with Mechanical Float Switch
The ES33V1-10 pump from Little Giant is an energy-saving, high performance, fully submersible sump / effluent pumps, designed for the professional plumbing contractor for use in residential and light commercial applications. Automatic operation is achieved with a vertical mechanical switch. The ES Series Pumps draw less energy while delivering greater pump flow and overall performance. Uses include basement sumps, excavations, loading docks, construction sites, underground passageways and other applications requiring high volume water dispersal.
1/3 HP permanent spilt capacitor motor with energy-conserving low amp draw
Designed for continuous duty
Epoxy coated cast iron housing
1-1/2″ FNPT (38 mm) discharge
Carbon/ceramic shaft seal
Upper sintered sleeve bearing and lower ball bearings
Vortex engineered composite impeller
Thermal overload protection
Piggyback Mechanical Float Switch
Float On Level: 11.5″ – 12.5″
Float Off Level: 4.5″ – 5.5″
cCSAus listed
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 9.3 in. |
| Width | 11.8 in. |
| Depth | 9.8 in. |
| Product Weight | 28 lbs. |
| Cord Length | 120 in. |
| Discharge Diameter | 1.5 in. |
| Flow Rate by Feet of Head | 28 gal / 15 ft, 52 gal / 5 ft, 40 gal / 10 ft |
| Shut Off Height | 20 in. |
| Shut Off Pressure | 8.6 |
| Maximum Diameter Solids | 0.375 in. |
| Material | Plastic, Rubber, Steel |
| Configuration | Submersible Pump |
| Automatic | Yes |
| Shutoff Head in Feet | 20 |
| Submersible | Yes |
| Voltage | 115 |
| Amperage | 5 |
| Frequency | 60 Hertz |
| Horsepower | 0.33 |
| Certifications | CSA |
| Color | Steel |
| Color Tone | Steel Tones |
