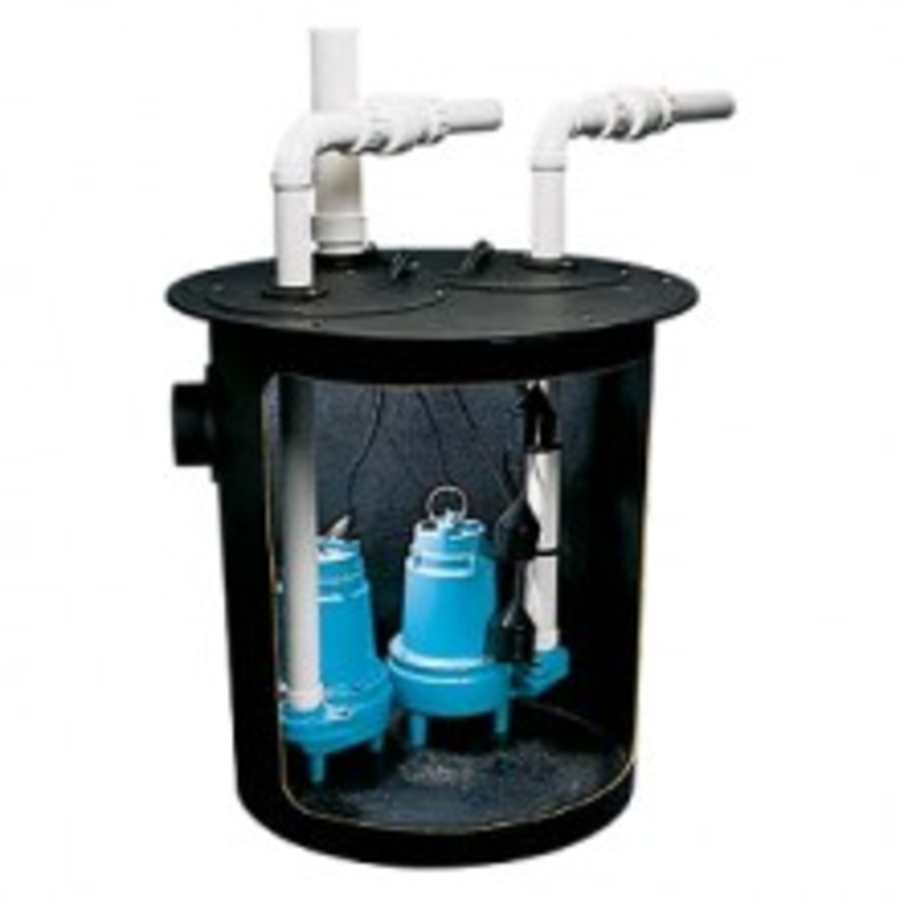

Package includes: 2 9SN-CIM sewage pumps, 2 CV-SE2 check valves, SJE-Rhombus 1221W120H6A17A duplex alternating control panel, 24″ x 36″ steel cover with vent and discharge, Â 24″ x 36″ basin with 4″ inlet flange
Little Giant 14940697 Features:
All hardware covered under manufacturer’s 2 year limited warranty

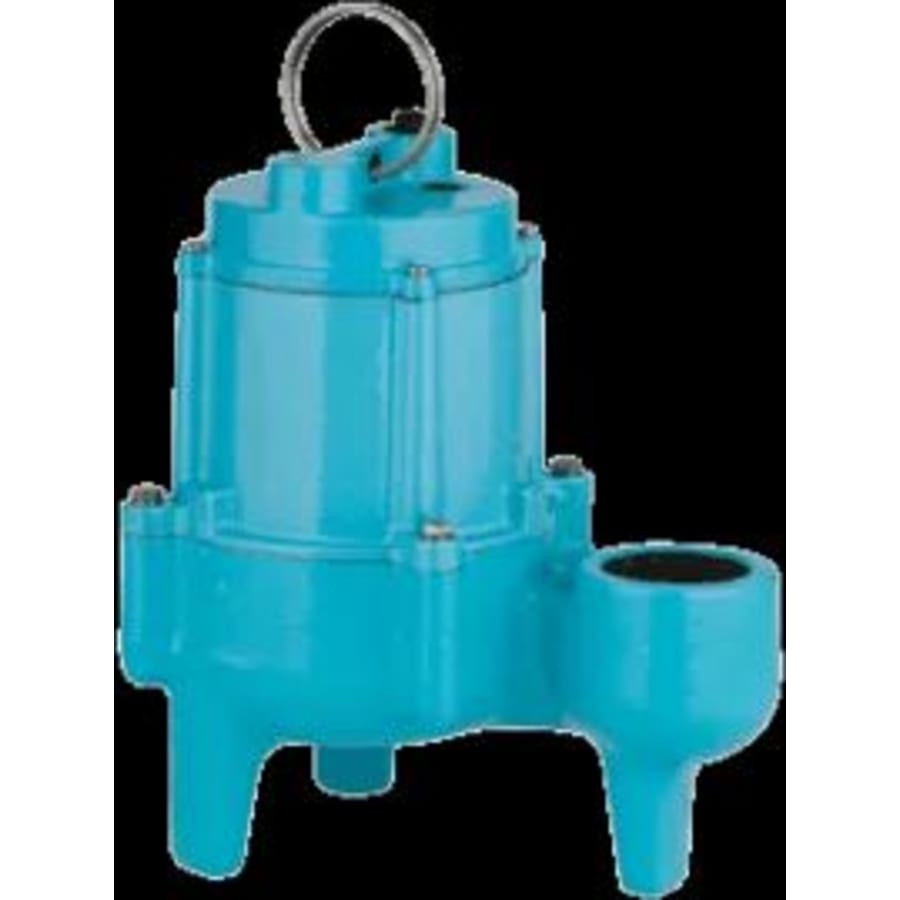

9SN-CIM Pump Features:
4/10 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 1 year limited warranty
Handles 2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Vortex
Impeller made from: Nylon
Switch Type: Manual
Single phase operation
20′ Cord included
140°F liquid temperature rating
cCSAus listed
9SN-CIM Pump Specifications:
Voltage: 115V
Amperage: 8.5
Discharge Diameter: 2″
Length: 11-13/20″
Width: 6-4/5″
Height: 11-2/5″
Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 110
At 10 feet of head: 75
At 15 feet of head: 30
Shut Off (maximum head height): 20′
Maximum Operating Pressure (PSI): 8.7

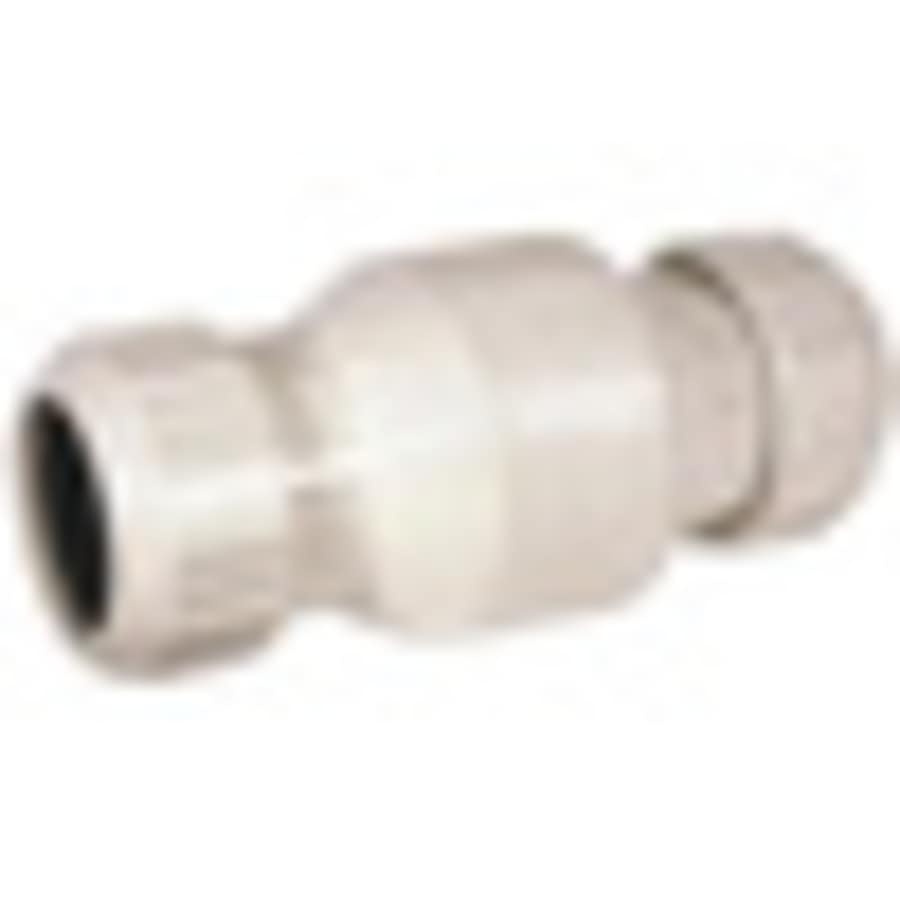

CV-SE2 Check Valve Specifications:
Constructed of PVC
Uses compression gaskets for 2″ IPS connection
Full-flow design allows passage for up to 2″ solids

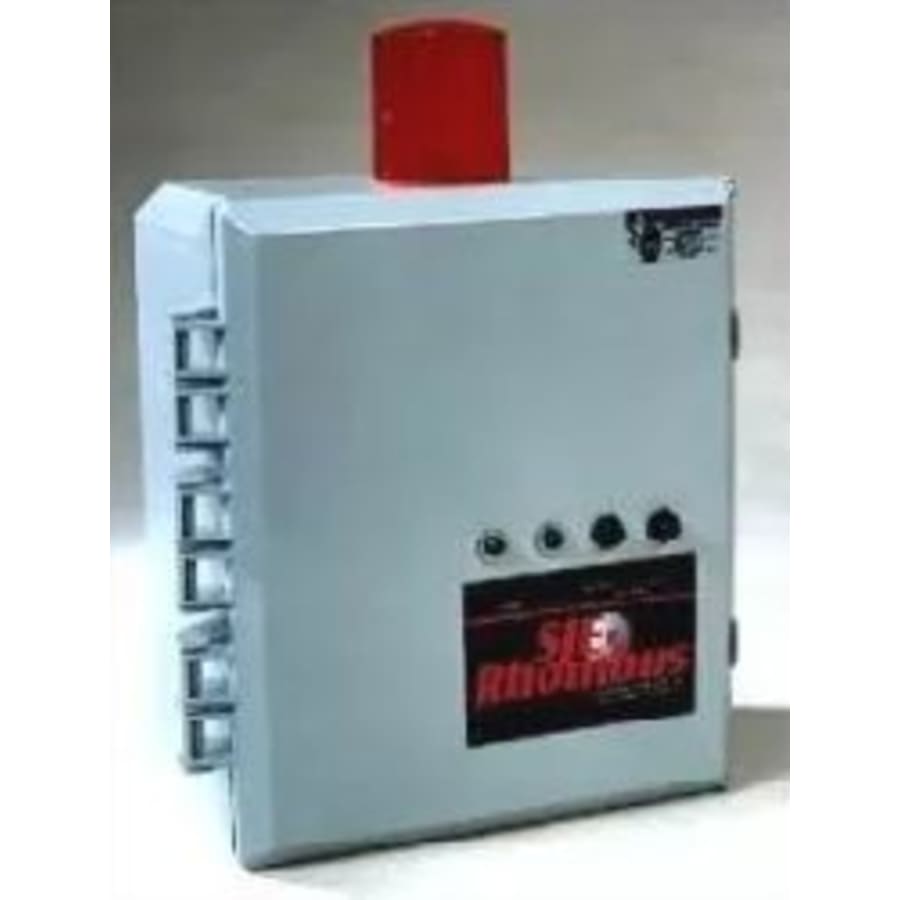

SJE-Rhombus 1221W120H6A17A Control Panel Features:
Control panel designed to control a duplex (2 pump) sewage system
Constructed of NEMA 4X ultraviolet stabilized thermoplastic
HOA switches allows for manual (hand), off or automatic operation
Includes 2 sensor floats and 1 alarm float
Includes 3 SignalMaster control switches with 20′ cords
Covered under manufacturer’s 5 year limited warranty
Control panel comes with complete wiring harness and instructions for installation
Indicator lights for float, alarm and power mounted on circuit board
Control system is UL listed to meet or exceed industry safety standards
Includes high liquid level alarm
Red alarm beacon provides 360° visual check of alarm condition
Alarm horn with 83-85 decibel audio warning
Exterior alarm switch with test, normal and silence settings
Alarm automatically resets when alarm condition is cleared
Circuit board mounted horn silence relay
SJE-Rhombus 1221W120H6A17A Control Panel Specifications:
Overall Height: 13-1/2″
Overall Width: 11-5/16″
Projection: 7-2/5″
Amperage: 20
Voltage: 120, 208, 240
Electrical Phases: 1
Cover Specifications:
1-piece steel 24″ x 36″ duplex cover plate
Designed with 2 access covers that each have a discharge flange and power cord grommet
2 discharge flanges and 1 vent flange
All hardware necessary for installation will come with cover
Plate Diameter: 28″
Discharge Diameter: 2″
Vent Diameter: 2″

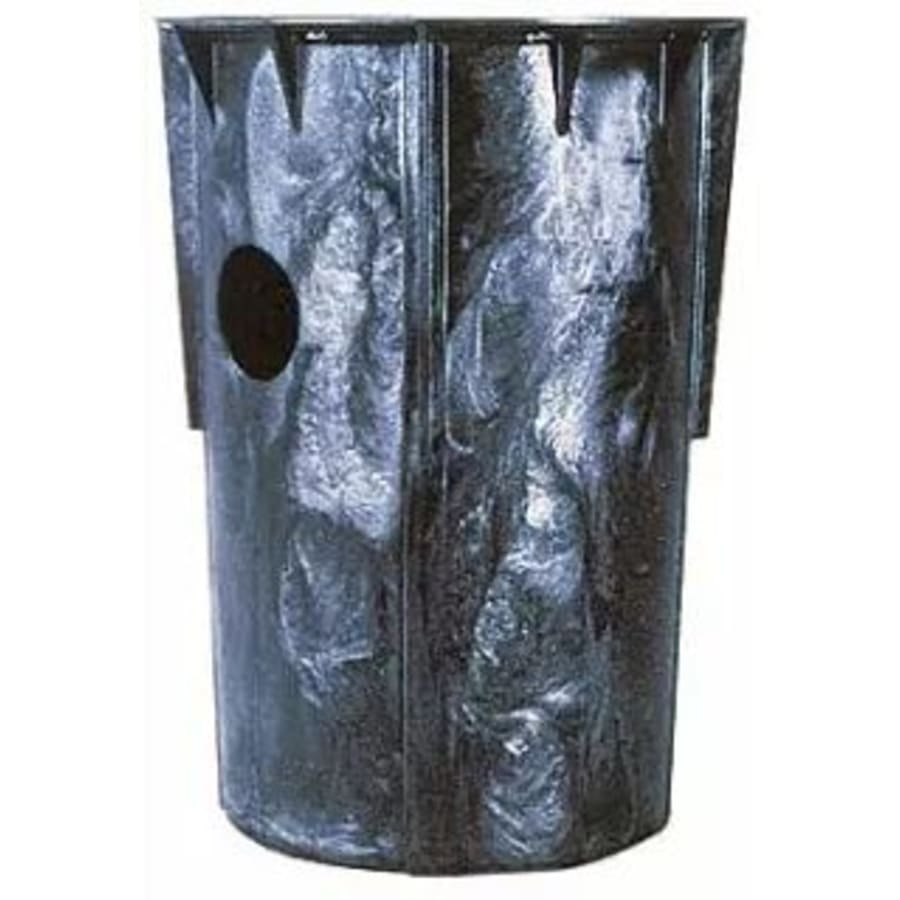

Basin Specifications:
24″ x 36″ high density polyethylene structural foam basin
Includes 4″ cast iron inlet flange
Basin Height: 36″
Basin Bottom Inside Diameter: 22-1/2″
Basin Top Inside Diameter: 24-15/16″
Capacity (Gallons): 72
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant Duplex Collection
Specifications
| Material | Cast Iron, Foam, PVC, Steel, Thermoplastic |
| Switch Type | Manual, Automatic, On / Off |
| Water Connection Type | NPT |
| Impeller Material | Nylon |
| Solid Handling | 2 Inch |
| Voltage | 115, 120, 208, 240 |
| Electrical Phases | 1 |
| Horsepower | .4 |
| Amperage | 8.5, 20 |
| Certifications | UL, CSA |
| Manufacturer Warranty | 1 Year Limited, 2 Year Limited, 5 Year Limited |
| Installation Hardware Included | Yes |
| Water Connection | 2" |
| Capacity (Gallons) | 72 |
| Cord Length | 240 in. |
| Discharge Diameter | 2 in. |
| Flow Rate by Feet of Head | 75 gal / 10 ft, 30 gal / 15 ft, 110 gal / 5 ft |
| Inside Diameter | 4 in. |
